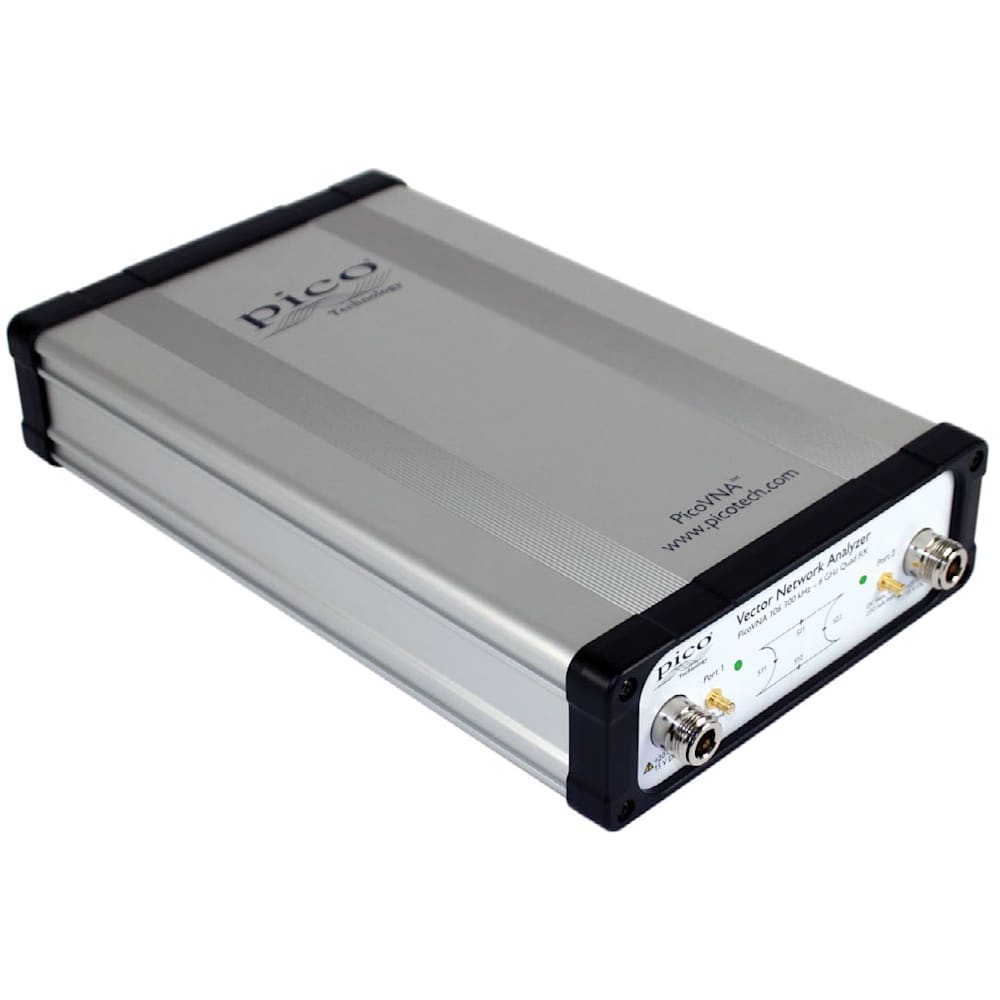

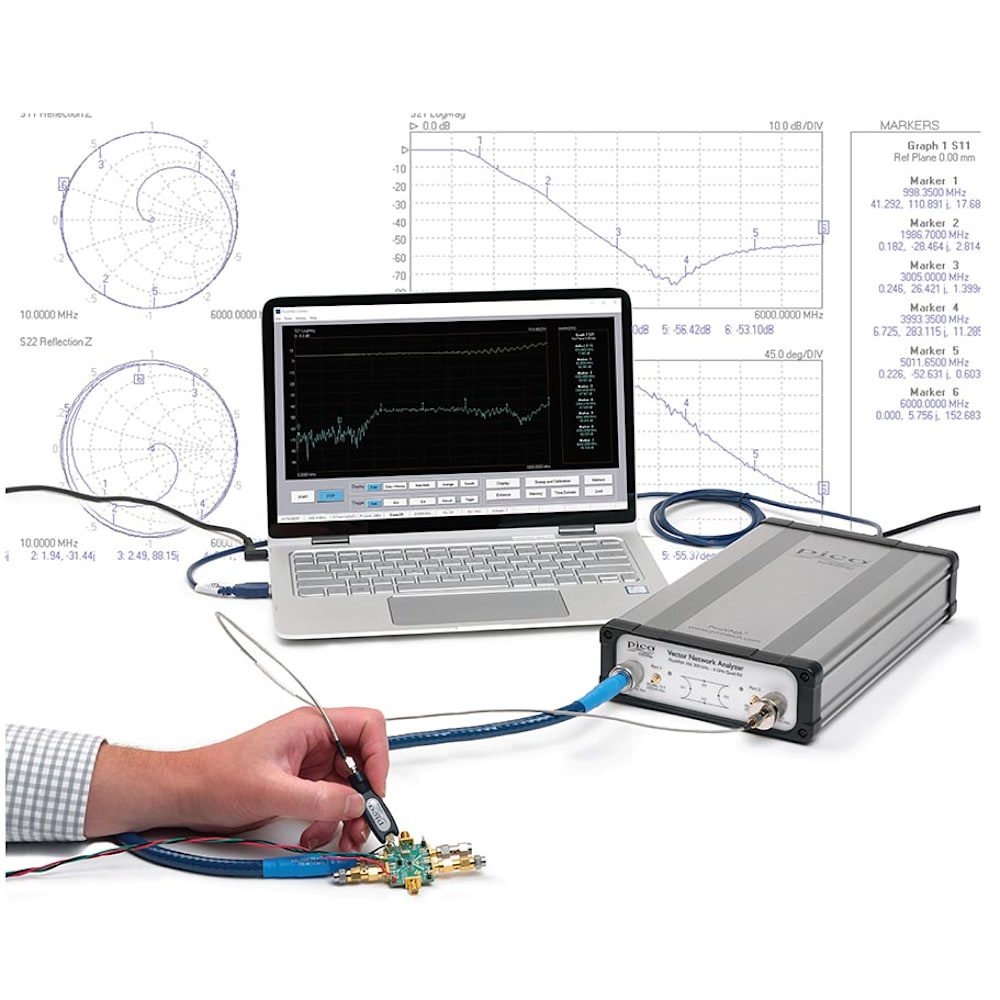

Pico VNA 106 – 6 GHz Vector Network Analyzer
$5,249.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Pico VNA 106 - 6 GHz Vector Network Analyzer Specs
| Parameter | Value |
| Measurement bandwidth | 140 kHz, 70 kHz, 35 kHz, 15 kHz, 10 kHz, 5 kHz, 1 kHz, 500 Hz, 100 Hz, 50 Hz, 10 Hz |
| Average displayed noise floor | Bandwidth (MHz) 0.3 - 10 10 - 4000 > 4000 |
| Dynamic range | See graphs (typical, excludes crosstalk) |
| Temperature stability, typical | 0.02 dB/ °C for F < 4 GHz 0.04 dB/ °C for F ≥ 4 GHz |
| Trace noise, dB RMS | Bandwidth 10 kHz 70 kHz 140 kHz |
| Measurement uncertainty | See table below |
| Spurious responses | -76 dBc typical, -70 dBc max. |
| Reflection measurements | Transmission measurements |
| Freq. range | Magnitude |
| –15 dB to 0 dB | +0 dBm to +6 dBm |
| < 2 MHz | 0.7 |
| > 2 MHz | 0.5 |
| < 2 MHz | 0.8 |
| > 2 MHz | 1 |
| < 2 MHz | 3 |
| > 2 MHz | 2.5 |
| < 2 MHz | 2 |
| > 2 MHz | 1.5 |
| Load match | Uncorrected: |
| Corrected: | 46 dB, typical |
| Source match | Uncorrected: |
| Corrected: | 46 dB, typical |
| Directivity | Corrected: |
| Crosstalk | Band |
| < 2 MHz | –100 |
| 2 MHz – 4 GHz | –110 |
| 4 GHz – 6 GHz | –100 |
| Maximum input level | +10 dBm, typ |
| Maximum input level | +23 dBm |
| Impedance | 50 Ω |

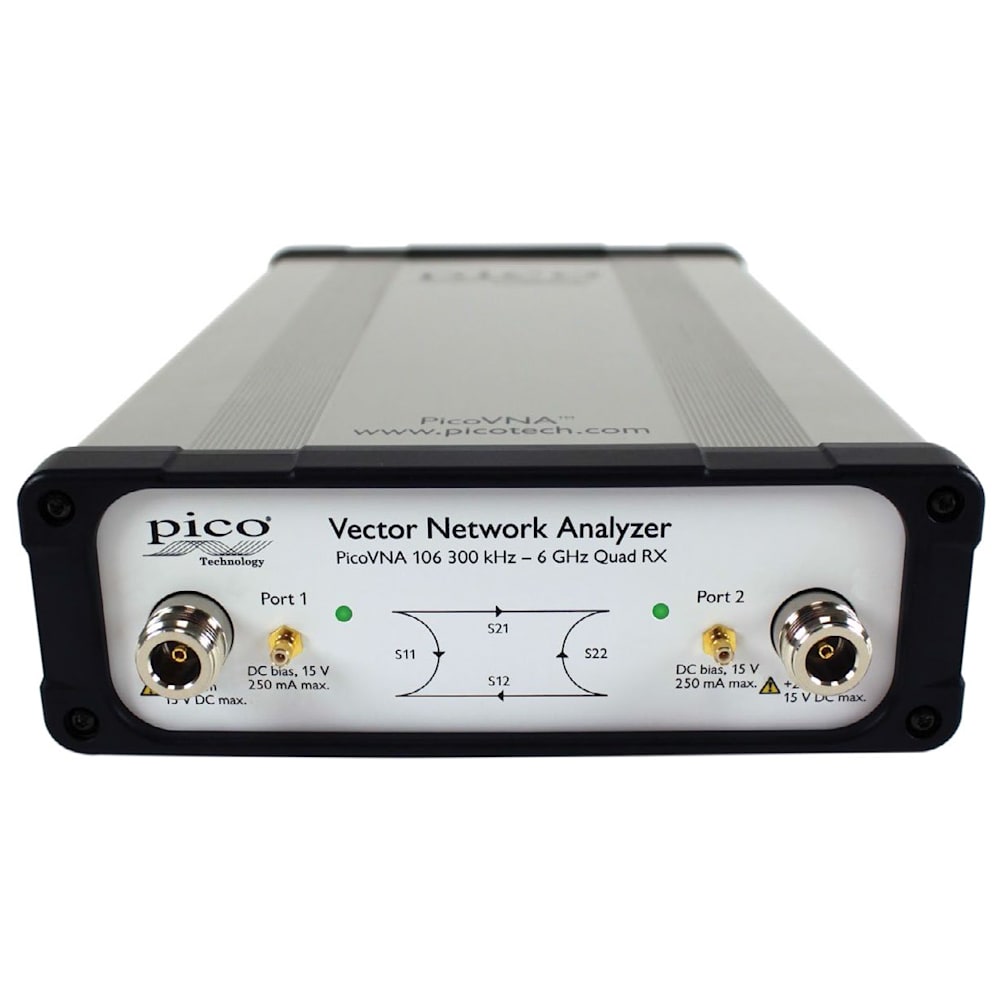

| Connectors | Type N, female |
| Maximum current | 250 mA |
| Maximum DC voltage | ±15 V |
| Current protection | Built-in resettable fuse |
| DC port connectors | SMB(m) |
| Sweep trigger output voltage | Low: 0 V to 0.8 V |
| Sweep trigger input voltage | Low: –0.1 V to 1 V |
| Sweep trigger input voltage | ±6 V |

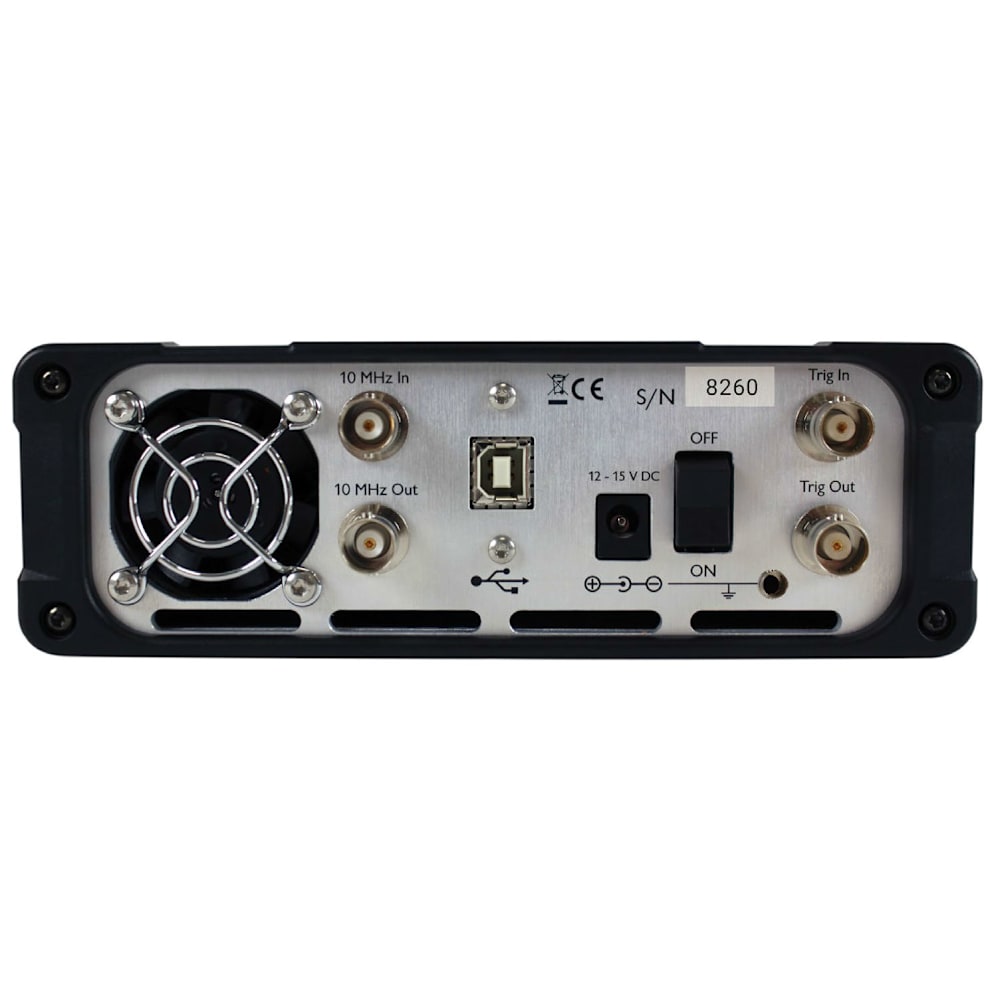

| Sweep trigger in/out connectors | BNC female on back panel |
| Measuring parameters | S11, S21, S22, S12 |
| Error correction | 12 error term full S-parameter correction (insertable DUT) |
| Display channels | 4 channels |
| Traces | 2 traces per display channel |
| Display formats | Amplitude (logarithmic and linear) |
| Memory trace | One per display channel |
| Limit lines | 6 segments per channel (overlap allowed) |
| Markers | 8 markers |
| Marker functions | Normal, Δ marker, fixed marker, peak / min. hold, 3 dB and 6 dB bandwidth |
| Sweep type | Linear sweep |
| Sweep times | 140 kHz bandwidth |
| Number of sweep points, VNA mode | 51, 101, 201, 401, 801, 1001, 2001, 4001, 5001, 6001, 7001, 8001, 9001,10001 |
| Number of sweep points, TDR mode | 512, 1024, 2048, 4096 |
| Frequency range | 300 kHz to 6.0 GHz |
| Frequency setting resolution | 10 Hz |
| Frequency accuracy | 10 ppm max |
| Frequency temperature stability | ±0.5 ppm/ºC max |
| Harmonics | –20 dBc max |
| Non-harmonic spurious | –40 dBc typical |
| Phase noise (10 kHz offset) | –90 dBc/Hz [0.3 MHz to 1 GHz] |
| Test signal power | F < 10 MHz: |
| Power setting resolution | 0.1 dB |
| Power setting accuracy | ±1.5 dB |
| Reference input frequency | 10 MHz ±6 ppm |
| Reference input level | 0 ±3 dBm |
| Reference output level | 0 ±3 dBm |
| Controlling PC data interface | USB 2.0 |
| Support for third party test software | Dynamic Link Library (DLL) as part of user interface software |
| External dimensions (mm) | 286 x 174 x 61 (L x W x H) |
| Warranty | 3 years |
| Weight | 1.85 kg |
| Temperature range (operating) | +15 °C to +40 °C |
| Temperature range (storage) | –20 °C to +50 °C |
| Humidity | 80% max, non-condensing |
| Vibration (storage) | 0.5 g, 5 Hz to 300 Hz |
| Power source and current | +12 to +15 V DC, 22 W |
| Power source connector | 5.5 mm diameter hole, 2.1 mm diameter centre contact pin. |
| Host PC requirements | Microsoft Windows 7, 8 or 10 |
- PicoVNA 106 6 GHz vector network analyzer
- PS010 Universal input 12 V 4.5 A output power supply
- PicoVNA 106 carry case
- TA359 N-type combination wrench
- TA177 SMA M8 combination wrench
- MI106 Pico blue USB 2.0 cable 1.8 m
