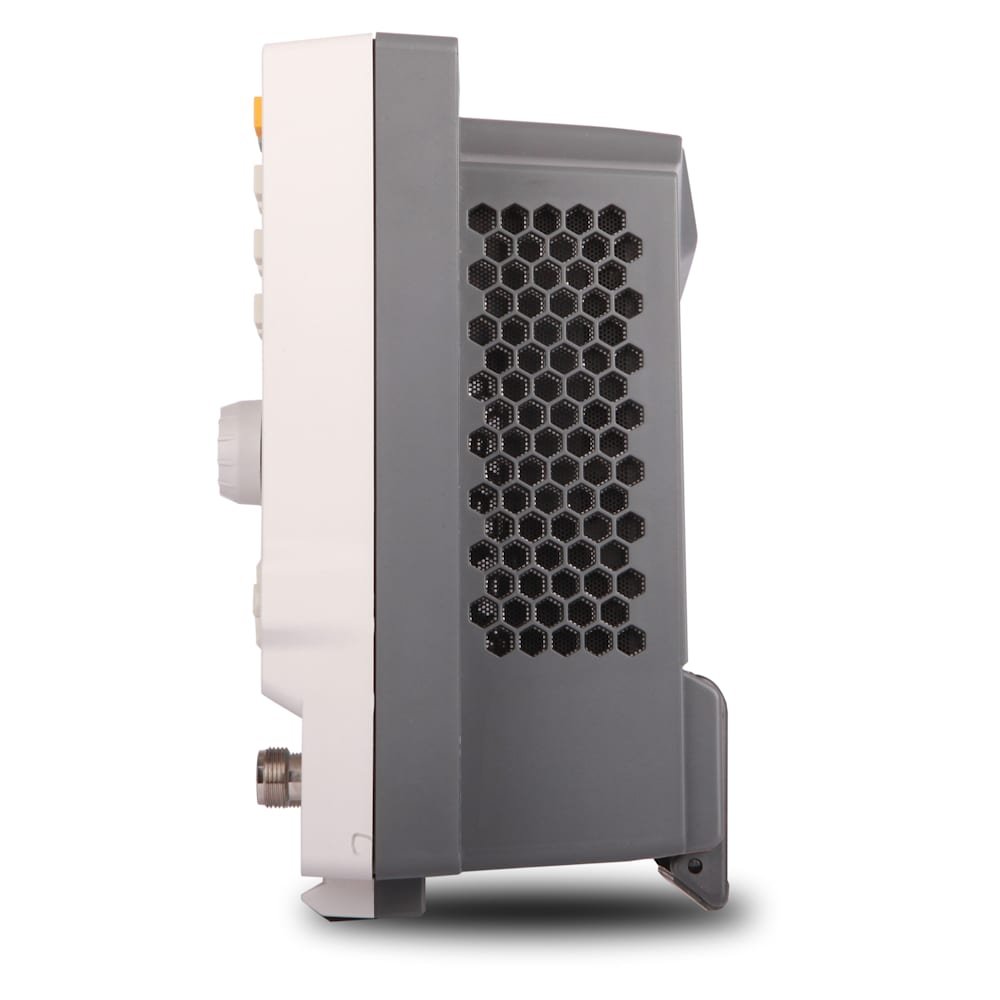

Rigol RSA3045N – 4.5 GHz Real-Time Spectrum Analyzer with Vector Network Analysis
$3,899.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Rigol RSA3045N - 4.5 GHz Real-Time Spectrum Analyzer with Vector Network Analysis Specs
| Frequency Range | 9 kHz to 4.5 GHz |
| Reference Frequency | 10 MHz |
| Accuracy | ±[(time since last calibration × aging rate) + temperature stability + calibration accuracy] |
| Initial Calibration Accuracy | Standard: <1 ppm Option OCXO-C08: <0.1 ppm |
| Temperature Stability | 0℃ to 50℃ , with the reference 25℃ Standard: <0.5 ppm Option OCXO-C08: <0.005 ppm |
| Aging Rate | Standard: <1 ppm/year Option OCXO-C08: <0.03 ppm/year |
| Carrier Offset | 1 kHz: <-90 dBc/Hz (typical) 10 kHz: <-100 dBc/Hz, <-102 dBc/Hz (typical) 100 kHz: <-100 dBc/Hz, <-102 dBc/Hz (typical) 1 MHz: <-110 dBc/Hz, <-112 dBc/Hz (typical) |
| Preamp off | 9 kHz to 100 kHz: <-120 dBm (typical) 100 kHz to 20 MHz: <-135 dBm, <-140 dBm (typical) 20 MHz to 2.7 GHz: <-138 dBm, <-141 dBm (typical) 2.7 GHz to 3.0 GHz: <-136 dBm, <-141 dBm (typical) 3.0 GHz to 4.5 GHz: <-136 dBm, <-140 dBm (typical) |
| Preamp on | 100 kHz to 20 MHz: <-152 dBm, <-160 dBm (typical) 20 MHz to 2.7 GHz: <-158 dBm, <-161 dBm (typical) 2.7 GHz to 3.0 GHz: <-156 dBm, <-161 dBm (typical) 3.0 GHz to 4.5 GHz: <-154 dBm, <-159 dBm (typical) |
| Level Measurement Uncertainty | <1.0 dB (nominal) |
