Rohde & Schwarz FPC1000-RMP97 – Spectrum Analyzer Package (Catalog number 1328.6660P97)
$2,093.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Rohde & Schwarz FPC1000-RMP97 - Spectrum Analyzer Package (Catalog number 1328.6660P97) Specs
| Frequency range | R&S®FPC1000 |
| with R&S®FPC-B2 option | 5 kHz to 2 GHz |
| with R&S®FPC-B3 option | 5 kHz to 3 GHz |
| Frequency resolution | 1 Hz |
| Aging per year | 1 × 10–6 |
| Temperature drift | 0 °C to +30 °C |
| +30 °C to +50 °C | 3 × 10–6 |
| Achievable initial calibration accuracy | 5 × 10–7 |
| Total reference uncertainty | (time since last adjustment × aging rate) + temperature drift + calibration accuracy |
| Marker resolution | 0.1 Hz |
| Uncertainty | ±(marker frequency × reference uncertainty + 10 % × resolution bandwidth + ½ (span / (sweep points – 1)) + 1 Hz) |
| Number of sweep (trace) points | 1183 |
| Marker tuning frequency step size | span/1182 |
| Frequency counter resolution | 0.1 Hz |
| Count uncertainty | SNR > 25 dB |
| Frequency span | 0 Hz, 10 Hz to 1 GHz |
| with R&S®FPC-B2 option | 0 Hz, 10 Hz to 2 GHz |
| with R&S®FPC-B3 option | 0 Hz, 10 Hz to 3 GHz |
| Span uncertainty | 1 % (nom.) |
| Spectral purity SSB phase noise | f = 500 MHz |
| Carrier offset | 30 kHz |
| 100 kHz | < –98 dBc (1 Hz), –103 dBc (1 Hz) (typ.) |
| 1 MHz | < –120 dBc (1 Hz), –125 dBc (1 Hz) (typ.) |
| Sweep time | span = 0 Hz |
| 10 Hz ≤ span ≤ 600 MHz | 10 ms to 1000 s |
| span > 600 MHz | 10 ms × span/600 MHz to 1000 s |
| Uncertainty | span = 0 Hz |
| span ≥ 10 Hz | 3 % (nom.) |
| Range | -3 dB bandwidth |
| Bandwidth accuracy | 1 Hz ≤ RBW ≤ 300 kHz |
| 300 kHz < RBW ≤ 1 MHz | < 10 % (nom.) |
| Selectivity 60 dB:3 dB | < 5 (nom.) (Gaussian type filters) |
| Range | -3 dB bandwidth |
| Display range | displayed noise floor to +30 dBm |
| DC voltage | 50 V |
| CW RF power | 33 dBm (= 2 W) |
| Peak RF power | duration < 3 s |
| Max. pulse voltage | 150 V |
| Max. pulse energy | pulse width 10 μs |
| Third-order intercept (TOI) | intermodulation-free dynamic range, signal level 2 × –20 dBm, RF attenuation = 0 dB, RF preamplifier = off |
| fin = 1 GHz | +7 dBm (meas.) |
| fin = 2.4 GHz | +10 dBm (meas.) |
| Second harmonic intercept (SHI) | RF attenuation = 0 dB, RF preamplifier = off, signal level = –40 dBm |
| fin = 20 MHz to 1.5 GHz | –60 dBc (nom.) |
| Displayed average noise level | dB RF attenuation, termination 50 Ω, RBW = 100 Hz, VBW = 10 Hz, sample detector, log scaling, normalized to 1 Hz |
| 1 MHz to 10 MHz | < –127 dBm,–135 dBm (typ.) |
| 10 MHz to 2 GHz | < –142 dBm, –150 dBm (typ.) |
| 2 GHz to 3 GHz | < –138 dBm, –147 dBm (typ.) |
| 1 MHz to 10 MHz | < –147 dBm, –157 dBm (typ.) |
| 10 MHz to 2 GHz | < –158 dBm, –165 dBm (typ.) |
| 2 GHz to 3 GHz | < –155 dBm, –163 dBm (typ.) |
| Image frequencies | fin – 2 × 30.15 MHz |
| fin – 2 × 830.15 MHz | < –65 dBc (nom.) |
| fin – 2 × 4042.65 MHz | –60 dBc (nom.) |
| Intermediate frequencies | 30.25 MHz, 830.25 MHz, 4042.65 MHz |
| Other interfering signals, signal level – RF attenuation < –30 dBm | spurious at fin – 2021.325 MHz |
| Other interfering signals, related to local oscillators | Δf ≥ 300 kHz |
| Residual spurious response | input matched with 50 Ω, without input signal, RBW ≤ 30 kHz, f ≥ 3 MHz, RF attenuation = 0 dB, Wi-Fi function disabled |
| Logarithmic level axis | 1/2/5/10/20/50/100 dB, 10 divisions |
| Linear level axis | 0 % to 100 %, 10 divisions |
| Number of traces | 2 |
| Trace detectors | max. peak, min. peak, auto peak, sample, RMS |
| Trace functions | clear/write, max. hold, min. hold, average, view |
| Setting range of reference level | -130 dBm to +30 dBm |
| Units of level axis | dBm, dBmV, dBμV, V, W |
| Absolute level uncertainty at 100 MHz | +20 °C to +30 °C |
| Frequency response (+20 °C to +30 °C) | 100 kHz ≤ f < 10 MHz |
| 10 MHz ≤ f ≤ 3 GHz | < 1 dB |
| Attenuator uncertainty | < 0.3 dB |
| Uncertainty of reference level setting | < 0.1 dB (nom.) |
| Display nonlinearity | SNR > 16 dB, 0 dB to –50 dB, logarithmic level display |
| Bandwidth switching uncertainty | reference: RBW = 10 kHz |
| Total measurement uncertainty | 95 % confidence level, +20 °C to +30 °C, SNR > 16 dB, 0 dB to –50 dB below reference level, RF attenuation auto |
| 10 MHz ≤ f ≤ 3 GHz | < 1.25 dB, 0.5 dB (typ.) |
| Trigger source | free run, video, external |
| External trigger level threshold | low → high transition |
| high → low transition | 0.7 V |
| maximum | 3.0 V |
| Impedance | 50 Ω (nom.) |
| Connector | N female |
| VSWR | 5 kHz ≤ f ≤ 1 GHz |
| 1 GHz < f ≤ 3 GHz | < 2 (nom.) |
| Input attenuator | RF input only |
| AF demodulation types | AM and FM |
| Connector | 3.5 mm mini jack |
| Output impedance | 32 Ω (nom.) |
| Voltage (open circuit) | VRMS adjustable from 0 V to > 100 mV |

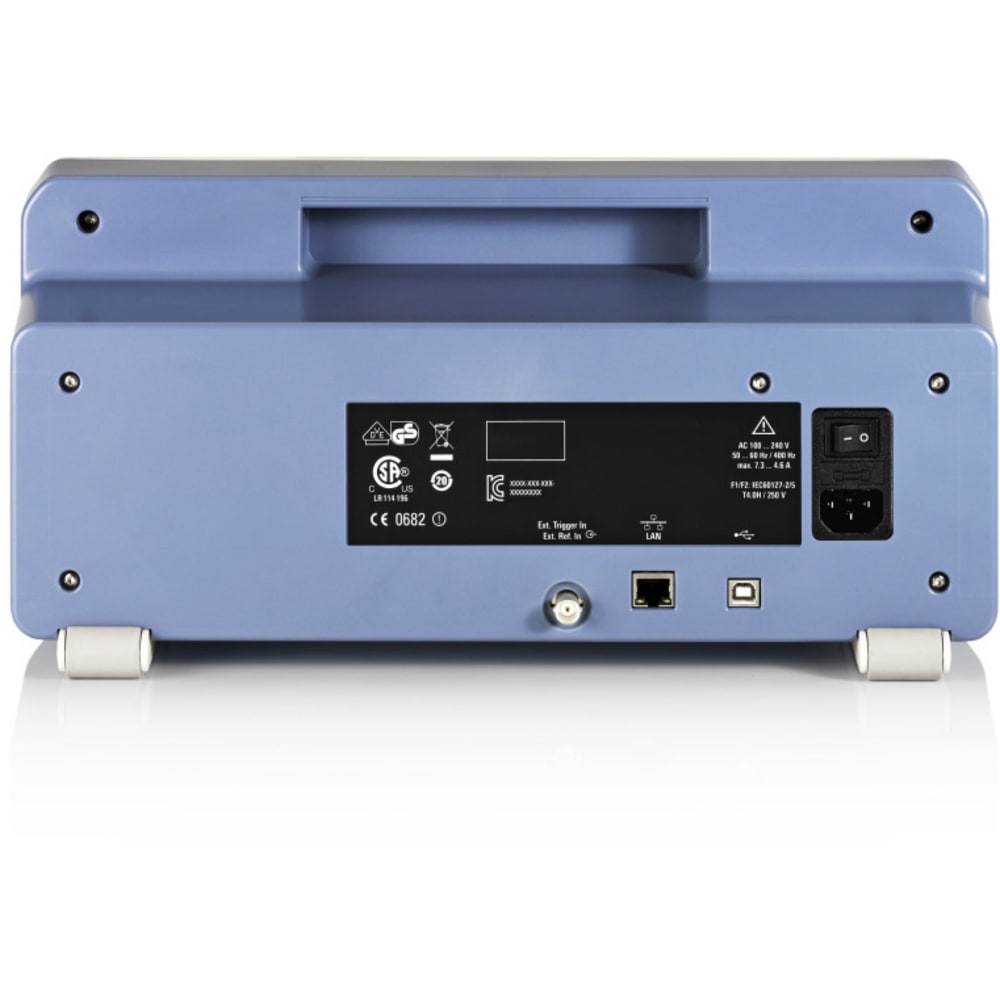

| Connector | BNC, 50 Ω |
| Mode | ext. reference, ext. trigger |
| External reference | required level |
| Frequency | 10 MHz |
| External trigger threshold | low → high transition |
| high → low transition | 0.7 V |
| AC supply | input specifications |
| Power consumption | 14 W (nom.) |
| Safety | IEC 61010-1, EN 61010-1, UL 61010-1, CAN/CSA-C22.2 No. 61010.1 |
| Test mark | VDE, GS, CSA |
| Languages | Chinese, English, French, German, Italian, Hungarian, Japanese, Korean, Portuguese, Russian, Spanish |
| Command set | SCPI 1997.0 |
| LAN interface | 10/100BASE-T, RJ-45 |
| USB | type B plug, version 2.0 |
| Size | 10.1" |
| Resolution | 1366 × 768 pixel |
| Pixel errors | < 2 pixel |
| Speaker | internal |
| USB interface | type A plug, version 2.0 |
| number of interfaces | 2 |
| Mass memory | memory stick (not supplied), size ≤ 4 Gbyte, USB version 1.1 or 2.0 |
| Data storage | internal |
| on memory stick, ≥ 1 Gbyte | > 5000 instrument settings and traces |
| Temperature | operating temperature range |
| storage temperature range | -20 °C to +70 °C |
| Climatic loading | relative humidity |
| Vibration | sinusoidal |
| random | EN 60068-2-64 |
| Shock | 40 g shock spectrum, in line with MIL-STD-810F, method 516.4 procedure 1, EN 60068-2-27 |
| EMC | in line with European EMC Directive 2004/108/EC including CISPR 11/EN 55011/group 1 class A (emission) EN 61326 table 2 (immunity, industrial) |
| Dimensions (W × H × D) | without feet |
| including feet | 396 mm × 185 mm × 156 mm (15.6 in × 7.3 in × 6.1 in) |
| Weight | 3 kg (6.61 lb) |
| Recommended calibration interval | 1 year |
