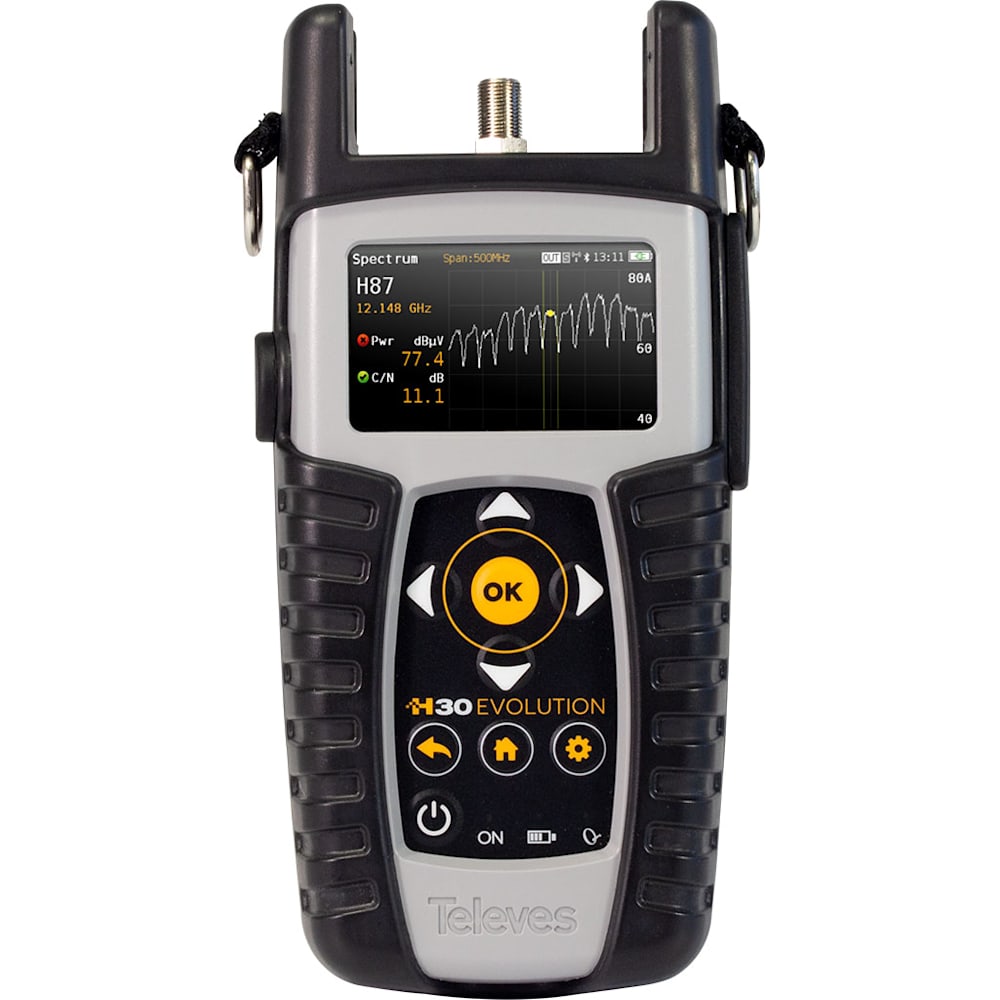

Televes H30 Evolution Base Spectrum Analyzer
$1,039.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Televes H30 Evolution Base Spectrum Analyzer Specs
| Display | 2.8" TFT 400 x 240 full colour |
| Weight | 510g (1.124 lbs) |
| Dimensions | 175 x 100 x 52 mm / 6.9 x 3.9 x 2 in (H x W x D) |
| Power Source | Input: 100-240V~ 50-60Hz Output: 12VDC, 2A |
| Battery | LiIon smart battery (7.2VDC, 2300mAh) |
| Operating Time | >4 hours |
| Operating Temperature | 23ºF to 104ºF (-5ºC to 45ºC) |
| Storage Temperature | -4ºF to 158ºF (-20ºC to 70ºC) |
| Humidity | 5% to 95% non-condensing |
| Ruggedness | Survives 1 m (3 ft) drop to concrete on all sides |
| Communication Interfaces | USB 2.0 to download Datalogs and software updates |
| Storage | 400 MB (internal) for measurements |
| Power up time | < 10 seconds |
| Range | 5-1002 MHz (depending on the function) |
| Resolution | 125 kHz |
| Tuning | Frequency or channel |
| Span | 5, 10, 20, 50, 100, 200, 500 and Full span |
| Scale | 5 and 10 dB/div |
| Hold mode | ✓ |
| Reference level (automatic and manual) | ✓ |
