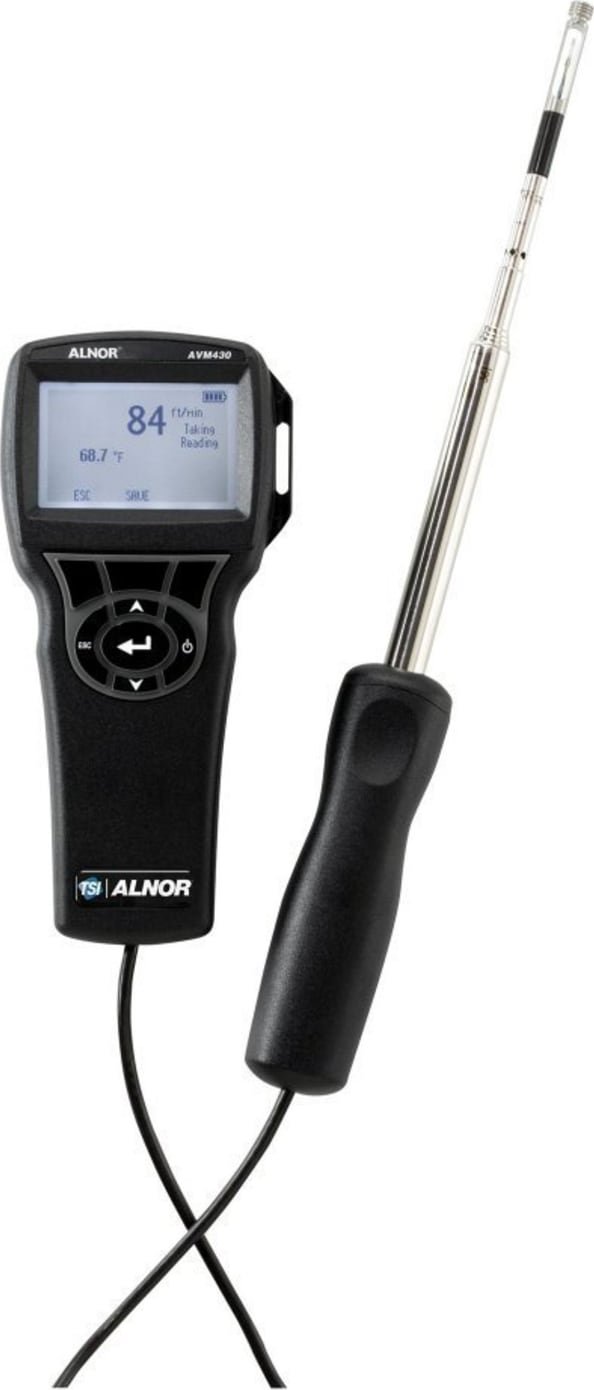

TSI AVM430-A Alnor Velometer Thermal Anemometer
$892.00
In Stock
The TSI AVM430-A Alnor Velometer thermal anemometer features an advanced solid-state logic engine tracking a broad 0 to 30 m/s air velocity scope via a straight hot-wire thermal stem sensor. Powered by four standard AA batteries, it houses an integrated automated data logging engine holding up to 12.700 reading samples. Critical field metrics and ventilation curves export to desktop software packages smoothly via a high-speed USB I/O interface port.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
TSI AVM430-A Alnor Velometer Thermal Anemometer Specs
| Range | 0 to 6,000 ft/min (0 to 30 m/s) |
| Accuracy | ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater |
| Resolution | 1 ft/min (0.01 m/s) |
| Duct Size Dimension | 1 to 250 inches in increments of 0.1 in. (1 to 635 cm in increments of 0.1 cm) |
| Volumetric Flow Rate Range | Actual range is a function of velocity, and duct size |
| Temperature Range | 0 to 200°F (-18 to 93°C) |
| Operating (Electronics) | 40 to 113°F (5 to 45°C) |
| Operating (Probe) | 0 to 200°F (-18 to 93°C) |
| Operating (Probe) | 14 to 140°F (-10 to 60°C) |
| Storage | -4 to 140°F (-20 to 60°C) |
| Data Storage Capabilities Range | 12,700+ samples and 100 test IDs |
| Logging Interval | 1 second to 1 hour |
| Time Constant | User selectable |
| External Meter Dimensions | 3.3 in. x 7.0 in. x 1.8 in. (8.4 cm x 17.8 cm x 4.4 cm) |
| Meter Weight with Batteries | 0.6 lbs. (0.27 kg) |
| Power Requirements | Four AA-size batteries or AC adapter |
- Instrument with articulated probe
- Hard carrying case
- 4 alkaline batteries
- USB cable and downloading software
- Operation and service manual
- NIST calibration certificate
