Eagle Eye IBEX-ULTRA – Portable Resistance Battery Tester
$2,955.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Eagle Eye IBEX-ULTRA - Portable Resistance Battery Tester Specs
| Battery Types | VLA, VLRA, Ni-Cad, & Others |
| Measurement Range | Battery Capacity: 5 – 6000 Ah Voltage: 0 – 60 VDC Impedance: 0.001 – 999.9 mΩ |
| Accuracy | DC Voltage: ±0.5% Internal Resistance: ±0.5% Temperature: ±2.0% |
| Resolution | DC Voltage: 10 mV Internal Resistance: 0.001 mΩ Temperature: 0.5 °C |
| Test Speed | 3 – 4 seconds per cell |
| Test Load | Less than 2 A per cell |
| Alarms | Voltage Over & Under Resistance Warning & Fail Temperature Over |
| Calibration Method | Auto Calibration |
| Data Transfer | USB Cable to PC |
| Display | Backlit LCD |
| Internal Storage | 4800 Test Results 80 Battery Models (for alarm settings) |
| Operating Environment | -20 – 80 °C (-4 – 176 °F) |
| Power Requirements | Li-ion Battery Pack (2200 mAh, 11.1V) 3 – 4 Hours of testing |
| Dimensions | 175 X 95 X 42 mm (6.8 x 3.7 x 1.6 in) |
| Weight | 0.65 kg (1.4 lbs) |

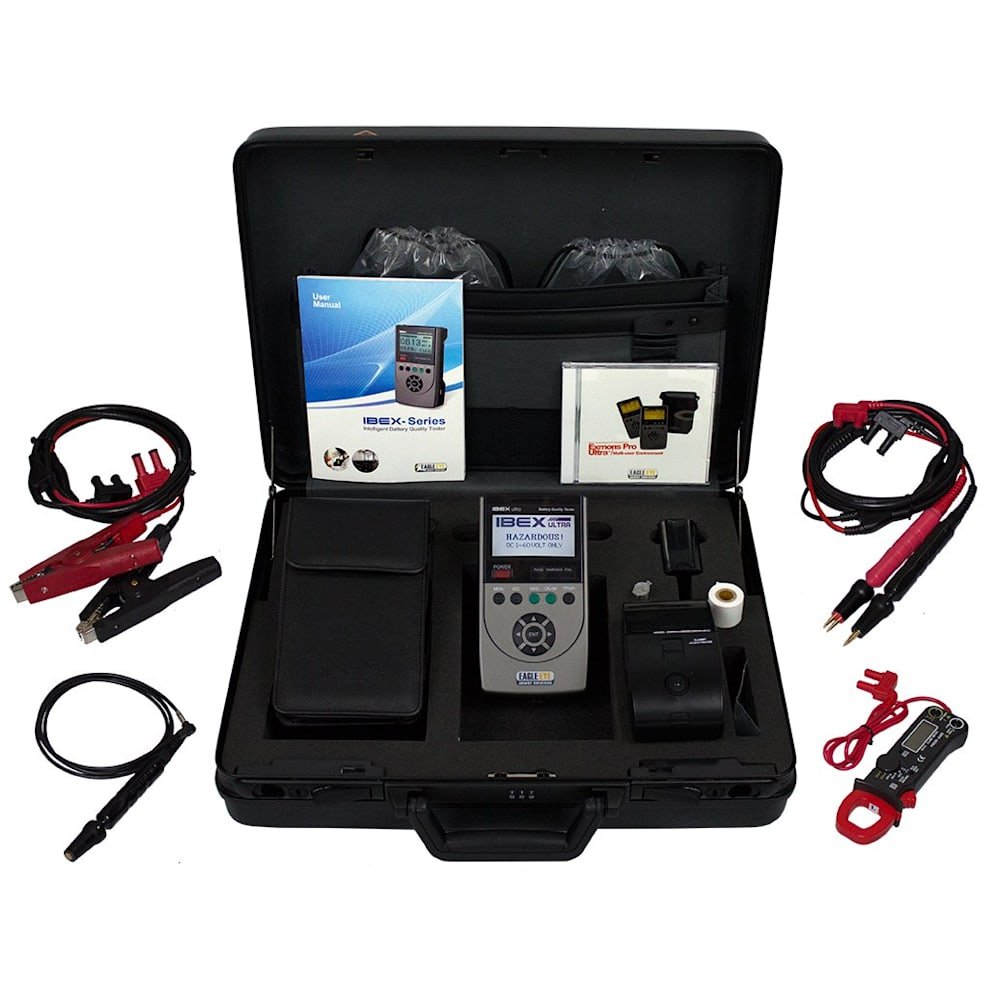

- IBEX-Ultra Body
- Li-Ion Battery Inside Body
- Soft Poly-Vinyl Bag
- Shunt (50mV/50A, 1mΩ, 1.0 Class)
- Spare 4-Pin Test Lead Tips
- Spare Li-ion Battery
- IR Printing Capability
- IR Thermal Printer
- Paper Rolls for IR Printer
- 220V AC Standard Charger for IR Printer
- 4-Pin Test Leads
- Clip Type Probe
- Temperature Probe
- USB Cable to upload to a PC
- DC Clamp Meter for Ripple Measurement
- Serial Comm Excel Software
- Exmons Ultra Diagnosis Software
- Standard Charger (100 to 240 VAC)
- Hard Plastic Carrying Case
- IBEX-Ultra User Manual
