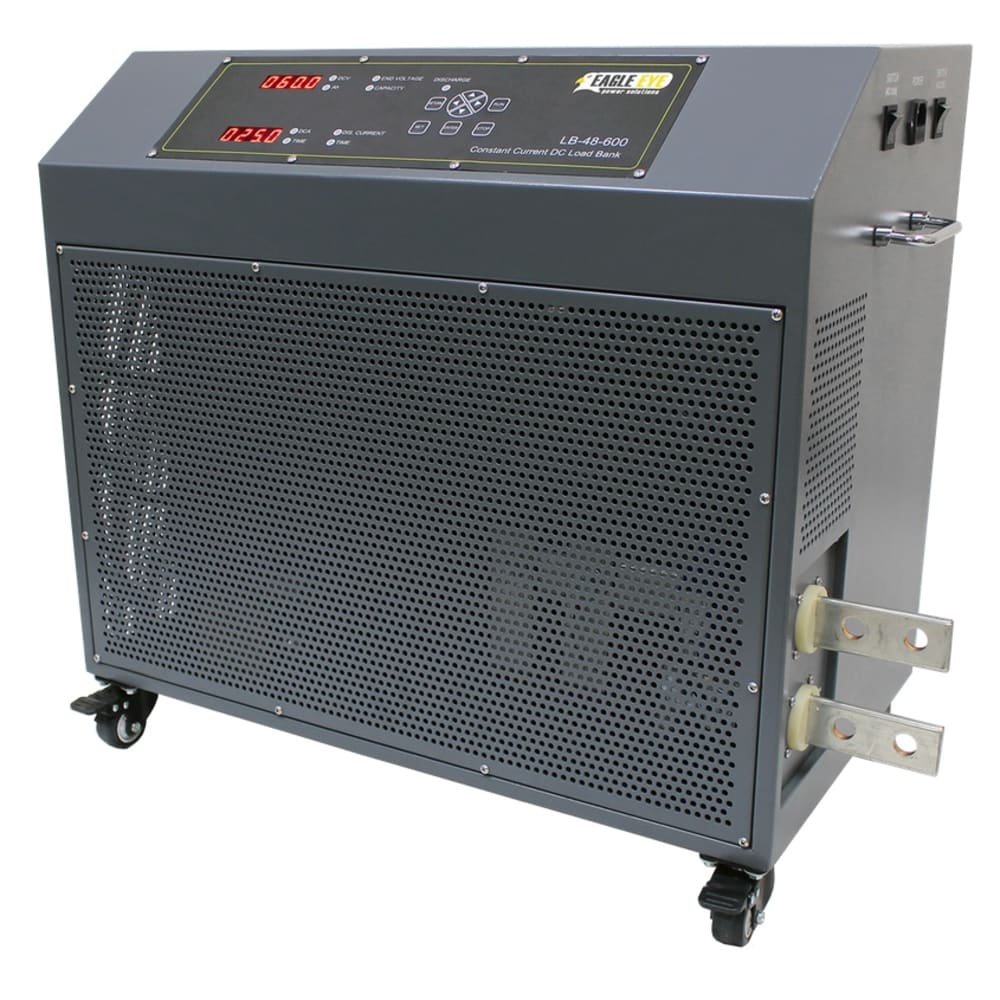

Eagle Eye LB-48-600-CC – 48V-600A Constant Current DC Load Bank
$5,784.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Eagle Eye LB-48-600-CC - 48V-600A Constant Current DC Load Bank Specs
| Features | CC |
| Autosave Test Parameters | ✓ |
| Adjustable Discharge Current | ✓ |
| Voltage Auto-Sensing | ✓ |
| Internal Data Saving | ✓ |
| 5” LCD with Touchpad | ✓ |
| Data Management Software | ✓ |
| Remote Load Control | ✓ |
| PER Cell Monitoring | ✓ |
| Programmable Load Steps | ✓ |
| Discharge Voltage Range | Range: 1 – 600V (Auto-Sensing) |
| Discharge Current Range | 1 – 2000A |
| Per Cell Voltage Type | 1-12V VRLA, VLA, NiCad, and more |
| Accuracy | Discharge Current: 0.1A / Voltage: 0.1V |
| Resolution | Discharge Current: ±0.2A / Voltage: ±0.3% V |
| Data Transfer | RS-232, USB |
| Display | Backlit numeric LED (CC) / 5” backlit LCD (D/S/P) |
| Operating Environment | 0 – 40 °C (32 – 104 °F) |
| Power Requirements | 110/220 VAC 50/60 Hz |
| Dimensions | Small: 42 x 52 x 25 cm (16.5 x 20.5 x 9.8 in) Medium: 42 x 30 x 58 cm (16.5 x 11.8 x 22.8 in) Large: 48 x 30 x 65 cm (18.9 x 11.8 x 25.6 in) X-Large: 60 x 40 x 70 cm (23.6 x 15.7 x 27.5 in) XX-Large: 90 x 62 x 115 cm (35.4 x 24.4 x 45.2 in) XXX-Large: 145 x 90 x 87 cm (157 x 35.4 x 34.2 in) |
| Weight | Small: 22 kg (49 lbs) Medium: 26 kg (57 lbs) Large: 34 kg (75 lbs) X-Large: 54 kg (119 lbs) XX-Large: 170 kg (375 lbs) XXX-Large: 300 kg (662 lbs) *Sizes may vary from listed depending on model |
- LB-Series CC Load Bank
- 3 m (10 ft) Discharge Cables
- 110/220 AC Power Cable
- One-year Standard Warranty
- USB with Support Literature
- Optional: Software Package
- Optional: Cell Monitoring
- Optional: Programmable Load Steps
