General Tools DCS1600HP – Recording Video Inspection Camera/Borescope
$556.00
In Stock
The General Tools DCS1600HP recording video inspection camera ensures highly accurate deep structural validation across dark internal zones by utilizing an advanced solid-state logic engine paired with interchangeable probe connection backplanes. Housed in a drop-proof rubberized handheld console layout, it records high-density image files and video clips safely, transferring automated parameters cleanly to external computer terminals via a native USB pipeline link.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
General Tools DCS1600HP - Recording Video Inspection Camera/Borescope Specs
| Display | 3.5 in. (88.9mm) Color TFT |
| Display Resolution | 320 x 240 pixels (video); 640 x 480 pixels (still images) |
| System Power | Battery: Rechargeable Li-Polymer Battery (3.7V) |
| Adapter/Charger Supply | 120VAC @ 60 Hz or 240VAC @50 Hz |
| Power Consumption | 1.8A @5.5VDC |
| Video Out Format | NTSC and PAL |
| Compression Format | Compliant with MPEG4 |
| Still Image Resolution | 640 x 480 Pixels |
| Video Resolution | 320 x 240 Pixels |
| Frame Rate | ~30 fps |
| Exposure | Automatic |
| White Balance | Fixed |
| S/N Ratio | 42dB or more |
| Languages | English, German, French, Spanish |
| Operating Environment | -4° to 140°F (-20° to 60°C) |
| Storage Environment | -4° to 140°F (-20° to 60°C) |
| Recharge Environment | 32° to 104°F (0° to 40°C) |
| Probe | 5.5mm (0.22 in.) Diameter x 1m (3.28 ft.) long camera probe Depth of Field (DOF): 10 to 60mm (0.4 to 2.4 in.) Water, Oil & Dust resistant to IP67 standards Horizontal field angle 46° Vertical field angle 34° Diagonal field angle 56° Optional 5.5mm Probe Lengths: 1m, 2m, 3m, 5m, 10m, 30m |
| Additional Optional Probes | 3.9mm diameter x 0.75m (2.5 ft.) long ultra-slim probe 4.9mm diameter x 1m long switchable front/side view probe 6.0mm diameter x 1m long articulating probe |
| Interchangeable Options | Click 'N Measure Software No. DCS1618M Set of 3 Mirrored Viewing Tips No. PM003 (70°, 90°, 110°) |
| Package Specifications | H: 21.62'' W: 12.25'' D: 3.75'' |
| Cube | 0.5748 |
| Weight | 148oz Weight: 9.25lbs |

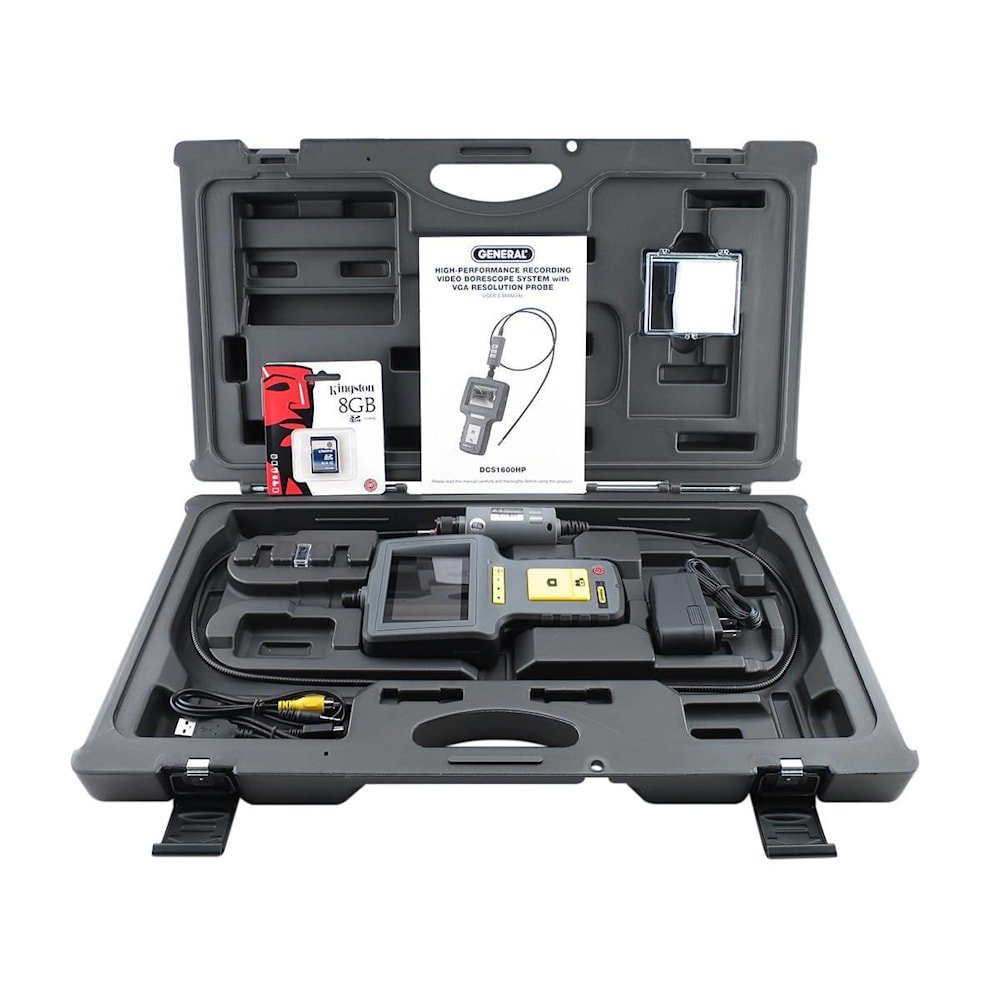

- H16 console of DCS1600 Recording Video Inspection System/Borescope
- P16181HP probe
- 110° mirrored probe viewing tip
- 8GB SD memory card
- AC2 AC Adaptor/Charger
- RCA and USB cables
- 1-year limited warranty
