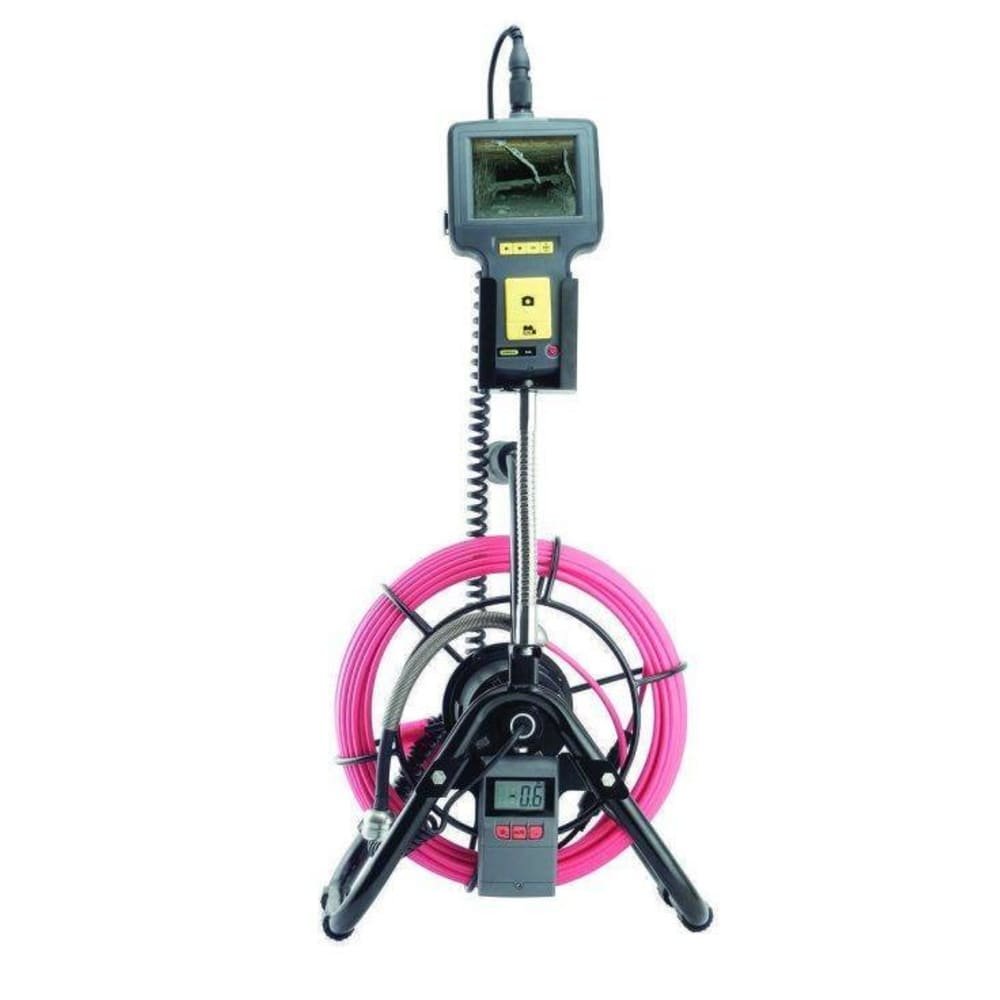

General Tools DPS16-R30 – Pipe Insulation Camera with Replaceable Camera Head
$1,457.00
In Stock
A heavy-duty protective design layout with a modular swappable sensor head dictates the operational framework of this hardware. The General Tools DPS16-R30 pipe insulation videoscope features a replaceable camera head coupled with a long 30m semi-rigid push probe to inspect hidden lagging barriers safely. Backed by an internal rechargeable lithium power framework, it ports high-resolution JPEG files and video files smoothly into built-in data logging slots.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
General Tools DPS16-R30 - Pipe Insulation Camera with Replaceable Camera Head Specs
| Display | 3.5 in. (89mm) diagonal TFT color LCD |
| Display resolution | 320 by 240 pixels (QVGA) |
| Camera and recording resolution | 640 x 480 pixels (VGA) |
| Analog video out formats | NTSC and PAL 2X zoom and horizontal mirroring controls on front panel |
| Recording medium | Standard-size SD card (4GB card included) |
| Operating temperature | 32° to 140°F (0° to 60°C) |
| Weight | 13.4 oz. (380g) |
| Power source | Rechargeable 3.7V Li-ion battery or #AC2 Adaptor/Charger (included) |
| Camera head diameter | 1.1 in. (28mm) |
| Light source | Eight white LEDs |
| Depth of field | 0.4 in. (10mm) to infinity |
| Field of view | 150.8° (diagonal) |
| Length | 72 ft. (22m) |
| Material | Fiberglass |
| Minimum bending radius | 6 in. (150mm) |
| Waterproof depth (IP68) | 50 ft. (10m) |
| Operating temperature | 14° to 140°F (-10° to 60°C) |
| Frame diameter | 11.8 in. (300mm) |
| Dust/oil/water resistance | To IP65 standard |
| Weight | 6.6 lb. (3kg) |

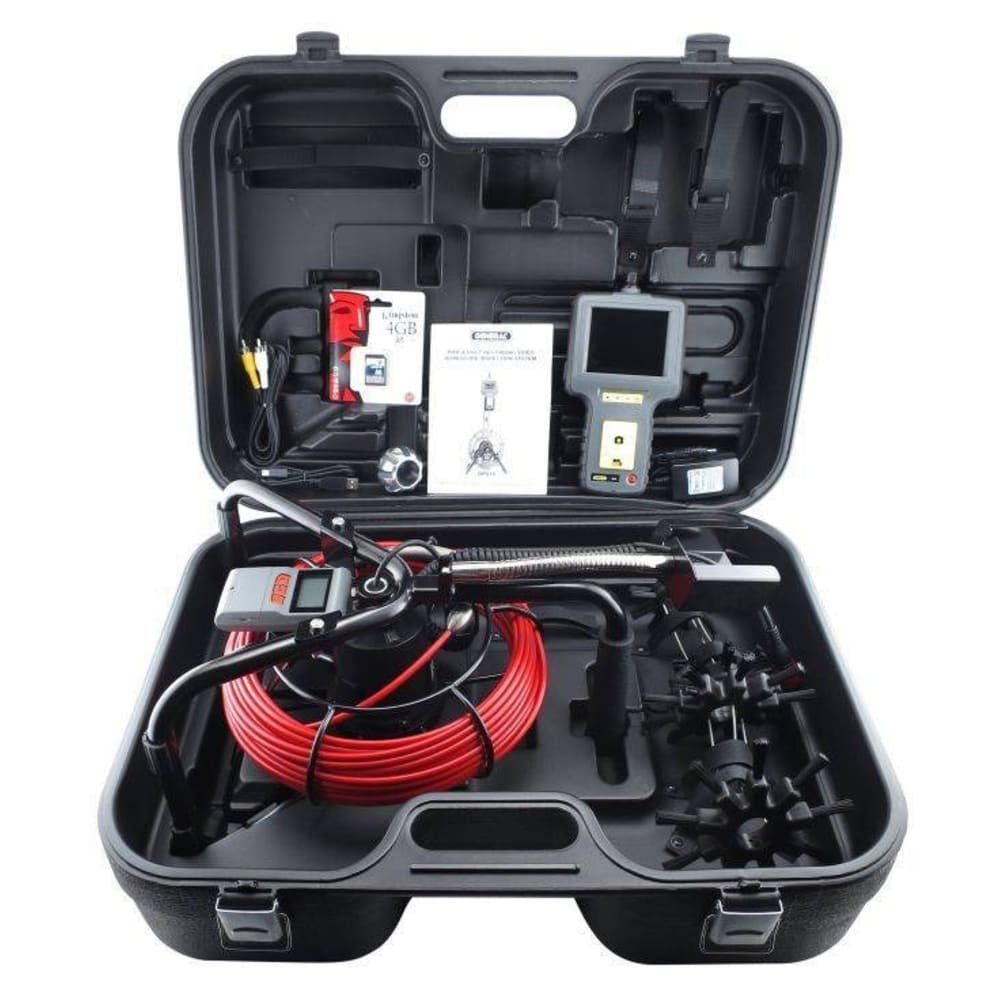

- #H16 Recording Console
- 100 Ft. Pipe & Duct Inspection Probe & Reel Set (with probe length counter)
- A probe centering ring with an inner diameter of 1.1 in. (28mm) and an outer diameter (O.D.) of 2 in. (50mm)
- A small probe centering brush with an I.D. of 1.1 in. (28mm) and an O.D. of 4 in. (100mm)
- 4GB SD memory card
- RCA cable for viewing video and images on an NTSC monitor
- #AC2 AC Adaptor/Charger
- Custom hard carrying case
- 1-year limited warranty
