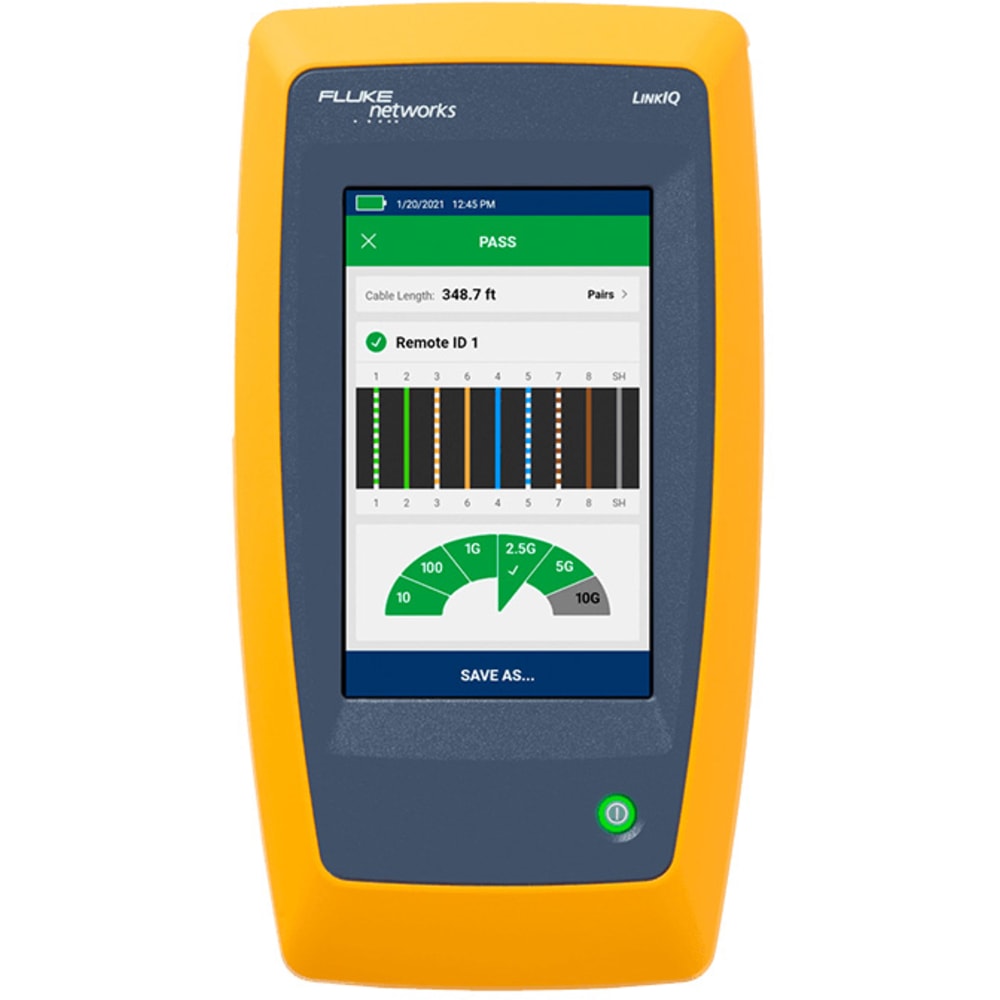

Fluke Networks LIQ-KIT-IE – LinkIQ™ Tester with Industrial Ethernet Adapter Kit And Probe
$2,684.00
In Stock
Fluke Networks LIQ-KIT-IE targets automation connectivity losses on multi-pair signal paths, streamlining link qualification routines across automated factory assembly floor cells.
- 305 m distance range maps system backbones.
- 6400 mAh power cell sustains long tasks.
- 6 seconds execution speed optimizes field workflow.
- 1 m drop-tested framing resists heavy impact.
- 800 x 480 display panel ensures layout clarity.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Fluke Networks LIQ-KIT-IE - LinkIQ™ Tester with Industrial Ethernet Adapter Kit And Probe Specs
| Languages supported in UI | English (SW v1.0) |
| Weight | 1 lbs 6 oz (624g) |
| Battery | Type: Lithium-ion, 3.6 V, 6400 mAh Life: 8 hours typical Charge time: 4.5 hours Charging temperature range: 0 °C to +40 °C |
| Power Adapter | Input: 100 to 240 VAC ą10%, 50/60Hz Output: 15 VDC, 2 A maximum Class II |
| Host Interface | USB type C |
| Display | 800 x 480 color capacitive multi-touch |
| Dimensions | 8.5 in x 4.5 in |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -10°C to +60°C |
| Operating Relative Humidity | 0 % to 90 %, 0°C to 35°C 0 % to 70 %, 35°C to 45°C |
| Operating Altitude | 4,000 m 3,200 m with ac adapter |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Drop | 1 m drop, 6 sides |
| Diagnostic Protocols | Link Layer Discovery Protocol (LLDP) Cisco Discovery Protocol (CDP) Fast Link Pulses (FLP) |
| Nearest Device Diagnostics (If available throughdiagnostic protocols) | Switch Name Port Number VLAN Name Advertised Data Rates Advertised Duplex |
| Power Over Ethernet Compatibility | IEEE 802.3af/at (SW v1.0) Hardware negotiation with signature resistance Software negotiation withLLDP/CDP |
| Power Over Ethernet Diagnostics | Advertised Power Class (1 to 4) (SW v1.0) Advertised Available Power Powered Pairs Diagnostics forboth Single and Dual signatures |
| Power Over Ethernet Measurements | Loaded Voltage (V) Loaded Power (W) |
| Port Blink | Blink the light of the connected port |
| Test Port | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs |
| Commissioning Autotests | 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only Test Speed: 6 seconds for lengths< 70 m |
| Cable Types | Balanced twisted-pair cabling Unshielded twisted-pair Screened twisted-pair 2-pair and/or 4-pair |
| Wire Map-Only Tests | Document wire map Length of each pair Diagnose split pairs User selectable T568A or T568B User selectable crossover settings(Straight through, Half-crossover, Full-crossover) Test speed: 1 second for lengths < 120 m |
| Length (Maximum) | 305 m (1000 ft) |
| Nominal Velocity of Propagation (NVP) | User settable |
| Tone Generator | Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analogy tones compatible with general analogprobes |
| Remote ID Locators | Use remote ID terminations to identify up to 7 unique ports or office outlets |

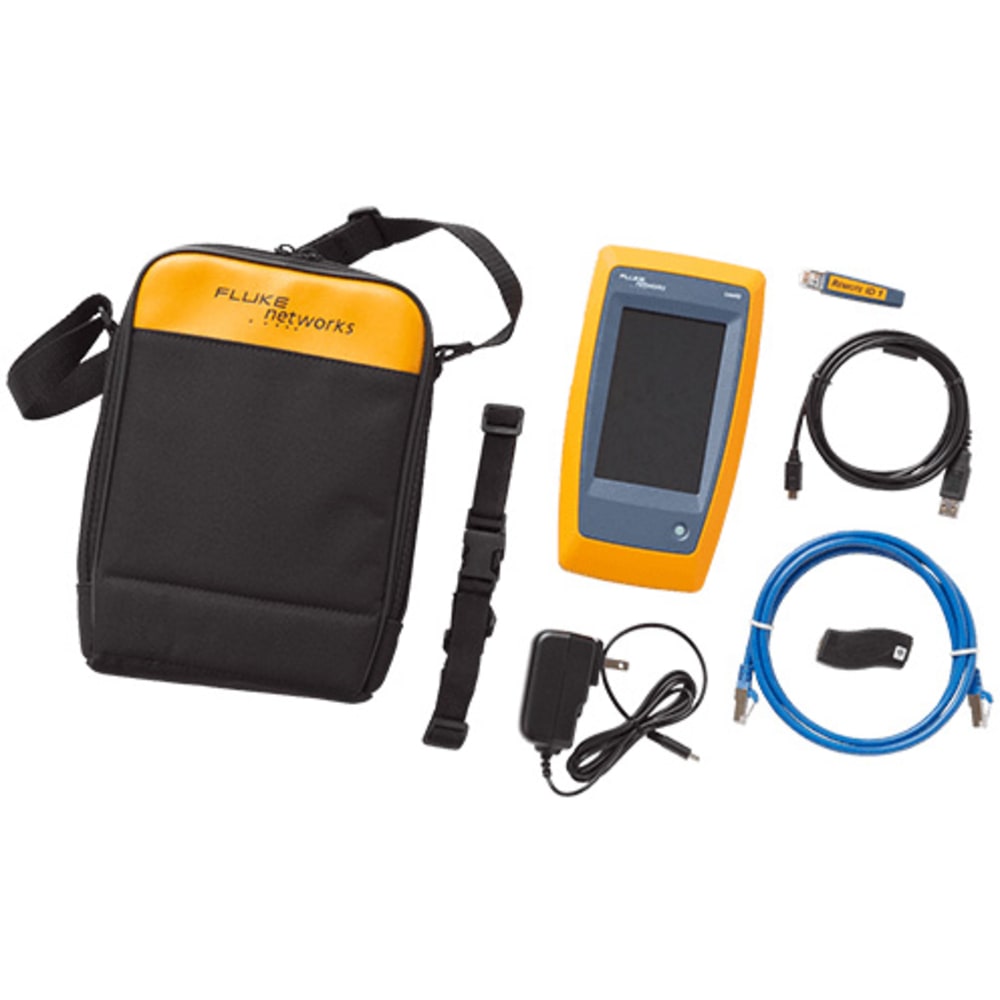

- LinkIQ™ Cable+Network Tester
- Industrial Ethernet adapter kit
- Remote IDs 1-7
- Intellitone probe
- Quick reference guide
- USB-C to USB-A cable
- Charging cable (with international adapters)
- Cat6A patch cord
- RJ45/11 modular adapter
- Hanging strap with remote ID holder
- Duffle bag
