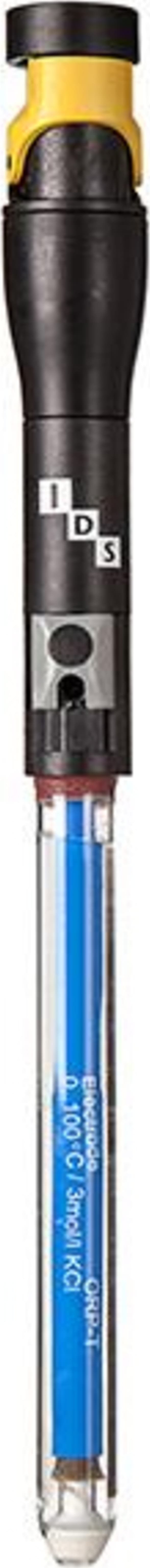

YSI IDS 4210W Combination of ORP Sensor
$313.00
In Stock
An advanced digital sensor connection backplane framework dictates the operational framework of this hardware. The YSI IDS 4210W wireless ORP sensor features 1 high-resolution digital channel tracking a broad absolute millivolt reduction-oxidation window safely without separate cable dependencies. Powered by a long-life internal battery layout framework, it transmits calibrated chemical logs cleanly over a long-range wireless telemetry loop link.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
YSI IDS 4210W Combination of ORP Sensor Specs
| mV measuring range | - 1250.0 ... + 1250.0 |
| Allowed temperature range (°C) | 0 ... 100 °C (32 ... 212 °F) |
| Typical Application | Laboratory |
| Measured parameter | Accuracy (± 1 digit) |
| U [mV] | ± 0.004 |
| U [mV] | ± 0.2 |
| T [°C] | ± 0.1 |
| Reference electrolyte | 3 mol/l KCl, Ag+free |
| Junction | Ceramic |
| Double Junction | Yes |
| Electrode Material and Shape | Platinum / Circle |
| Lengths | 4211: 1.5 m 4210W: 1.5 / 3 m |
| Diameter | 4.3 mm |
| Smallest allowed bend radius | Fixed installation:20 mm Flexible use:60 mm |
| Plug type | Socket, 4 Ppoles |
| Shaft length | 120 mm |
| Shaft diameter | 12 mm |
| Shaft material | Glass |
| IDS plug | Plastic parts: Glass fiber reinforced Noryl, TPU, TPC-ET, POM, PVC, PEEK, PBT O-ring: FPM Contacts gold-plated |
| Connection type | 4-P-pin, watertight plug connection with locking device, reverse polarity protected |
| Storage | With watering cap; filled with KCl 3 mol/L, Ag+ free |
