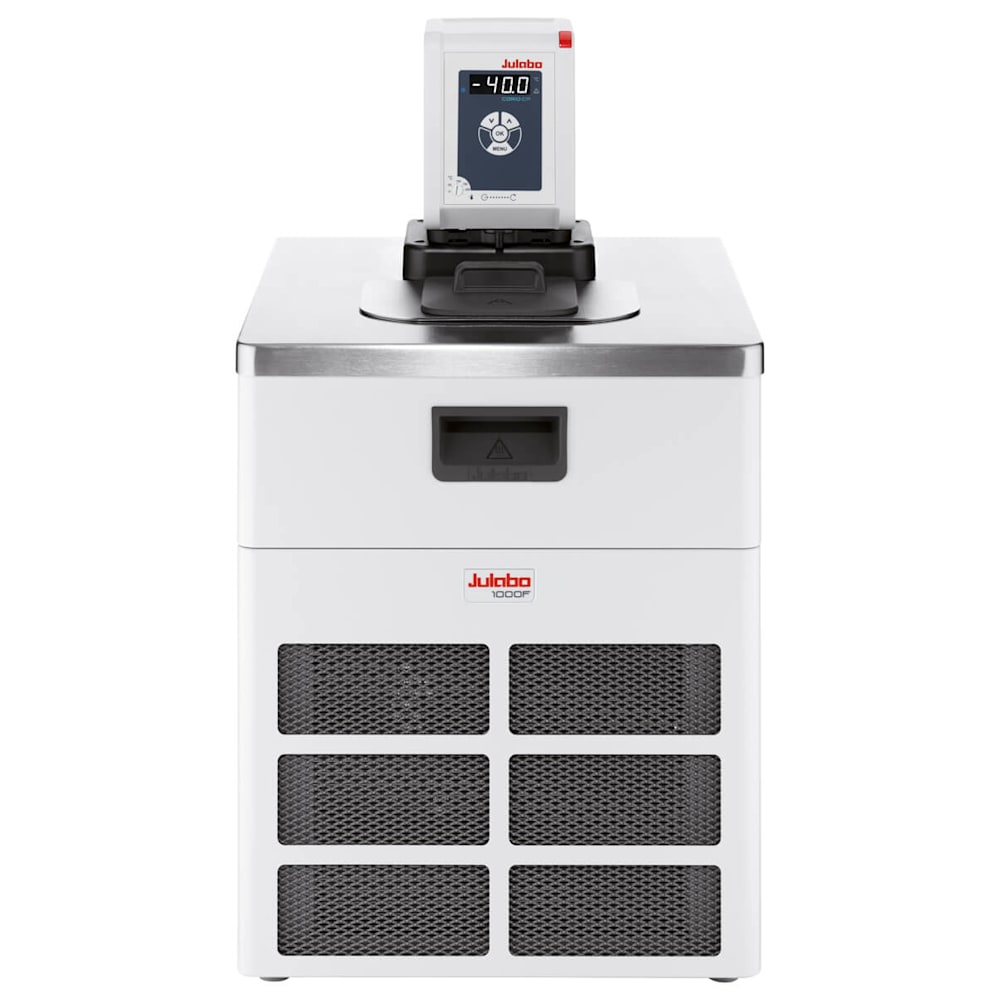

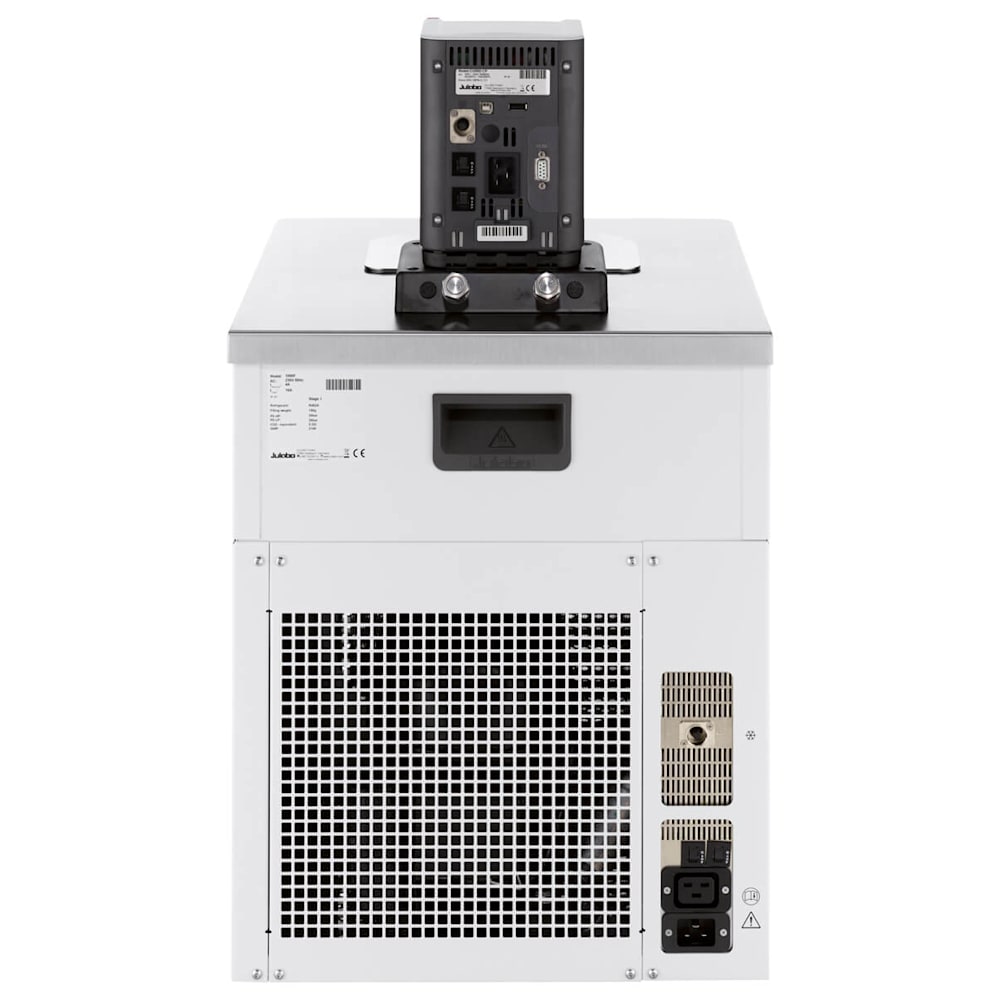

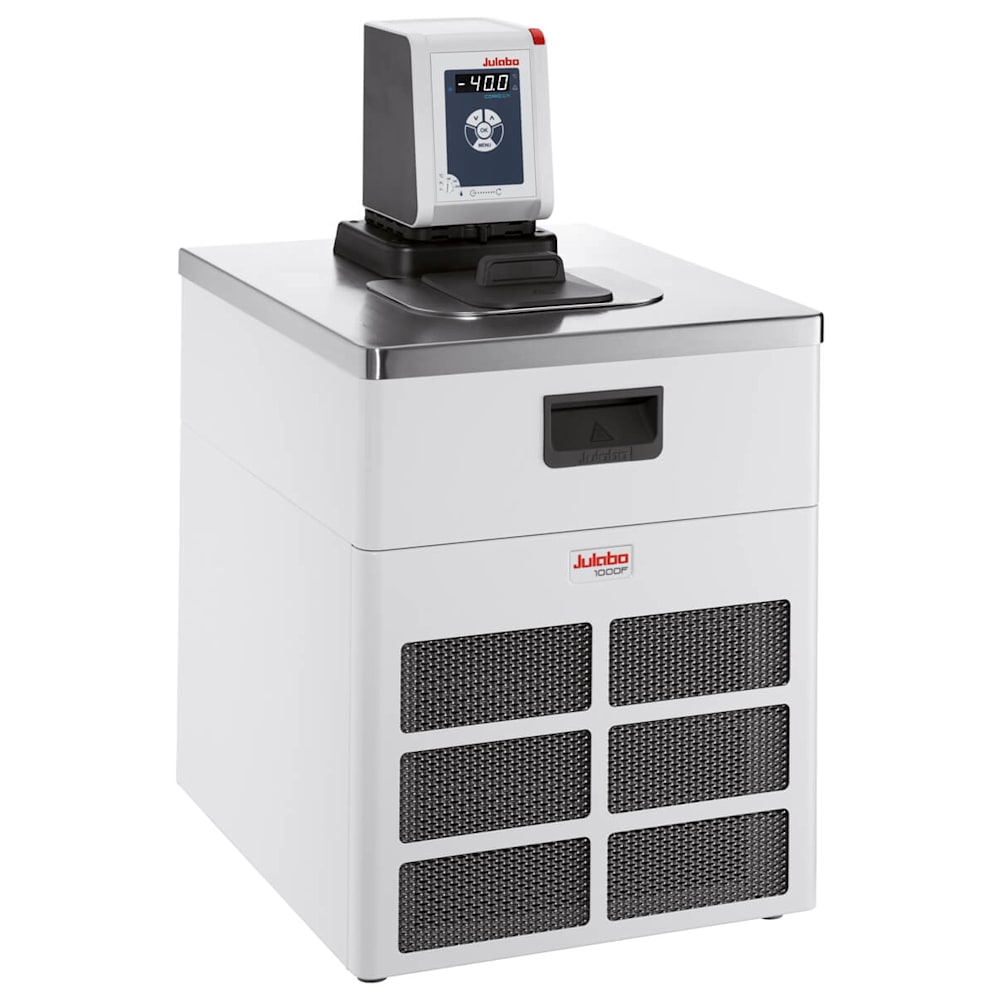

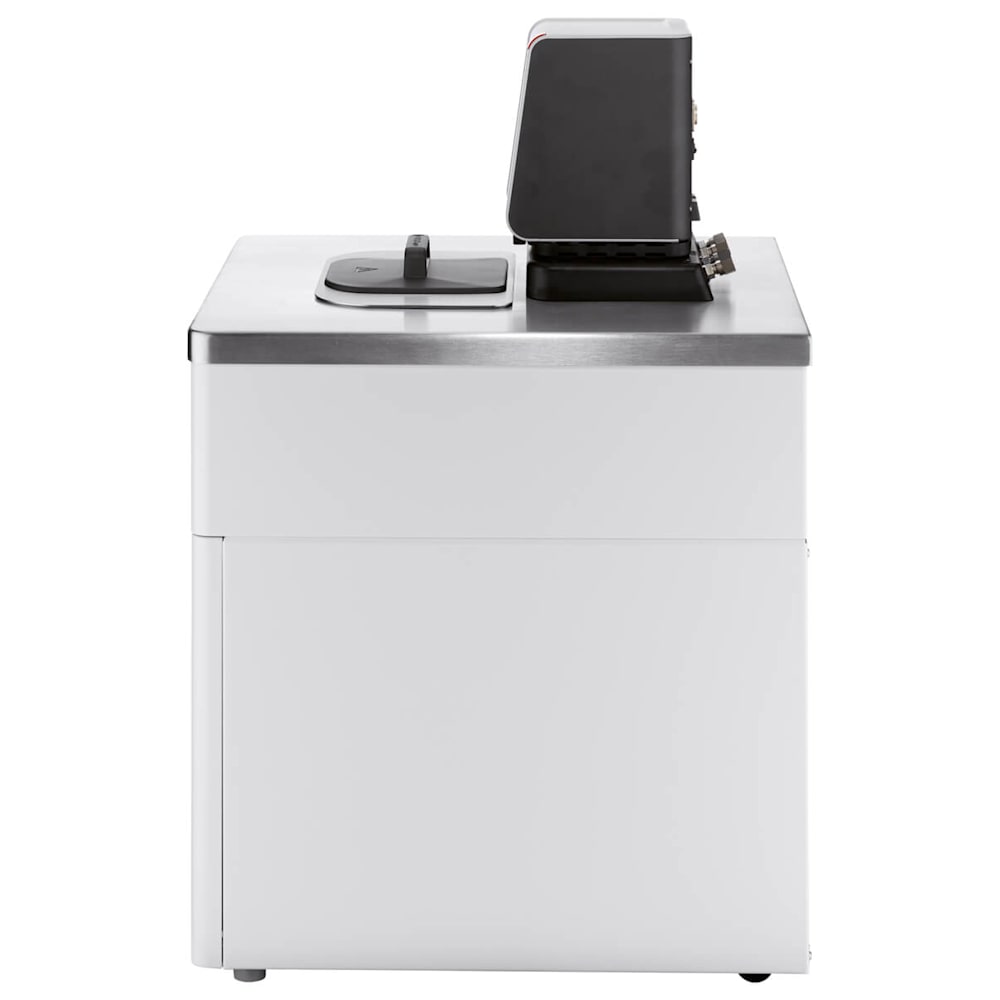

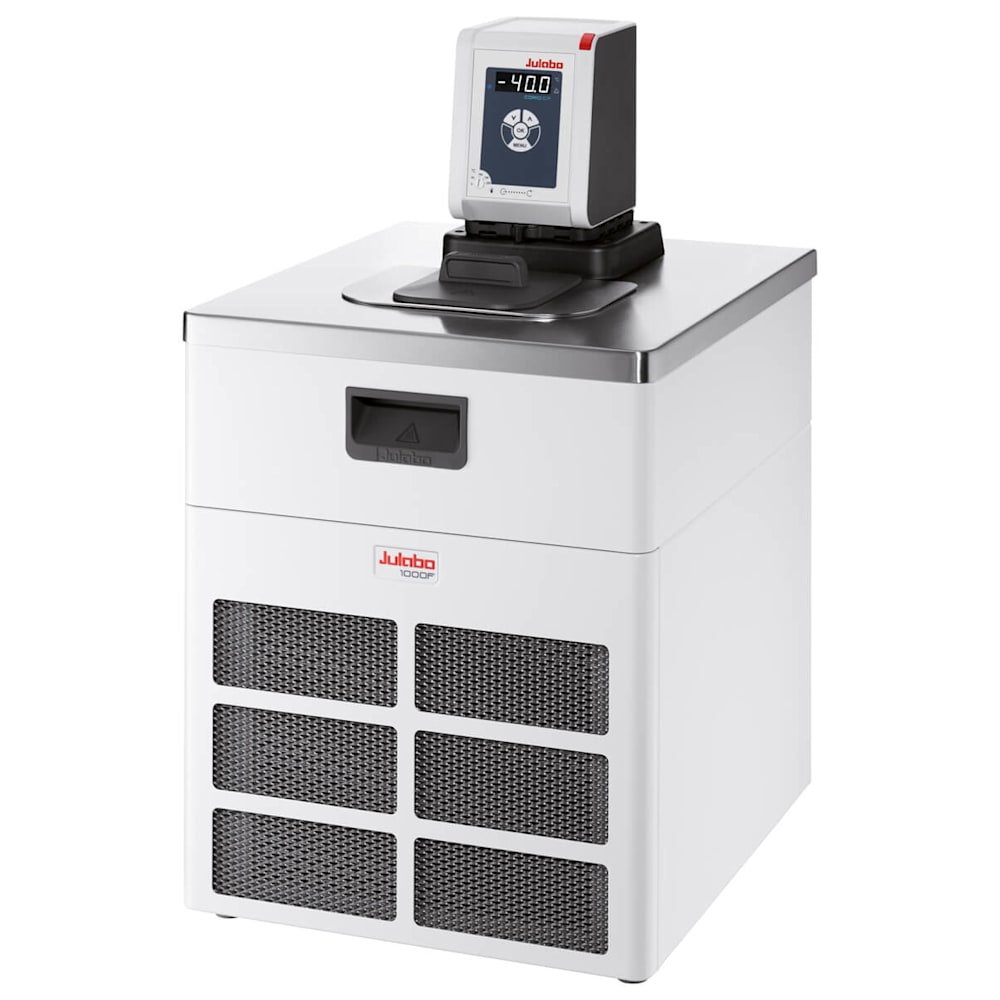

Julabo 9013707.02 – CORIO Refrigerated/Heating Circulator, 1000 W cooling, 1 kW heater, 7.5L, 115V/20A
$8,954.00
In Stock
The Julabo 9013707.02 refrigerated heating circulator provides advanced thermal control across a -40 to 150 °C working spectrum. This 7.5L laboratory equipment delivers 1000 W cooling capacity alongside an integrated 1 kW heater system. Technicians run analytical processes safely via its high-current 115V, 20A electrical interface network.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Julabo 9013707.02 - CORIO Refrigerated/Heating Circulator, 1000 W cooling, 1 kW heater, 7.5L, 115V/20A Specs
| Working temperature range (°C) | -50 ... +200 |
| Temperature control | PID |
| Temperature stability (°C) | ±0.03 |
| Setting / display resolution | 0.01 – 0.1 °C |
| Temperature Display | LED |
| Heating capacity (kW) | 1 |
| Cooling capacity (Medium Ethanol) | °C |
| kW | 1 |
| Pump capacity flow rate (l/min) | 8 ... 27 |
| Pump capacity flow pressure (psi) | 1.5 ... 10.2 |
| Bath opening / bath depth (W x L / D inch) | 7.1 x 13 / 5.9 |
| Pump connections | M16x1 |
| Barbed fittings diameter (inner dia. / mm) | 8 / 12 |
| Filling volume (liters) | 5 ... 7.5 |
| Refrigerant stage 1 | R452A |
| Filling volume refrigerant stage 1 (g) | 175 |
| Global Warming Potential for | 2140 |
| Carbon dioxide equivalent stage 1 (t) | 0.375 |
| Ambient temperature | 5...40 °C |
| Dimensions W x L x H (inch) | 16.5 x 19.3 x 27.6 |
| Weight (LBS) | 113.5 |
| Included with each unit | 2 Schlaucholiven passend für Schlauch 8 und 12 mm l.W. (Pumpenanschlüsse mit M16x1 Außengewinde) |
| Bath tank | Stainless steel |
| Bath cover | integrated |
| Cooling of compressor | Air |
