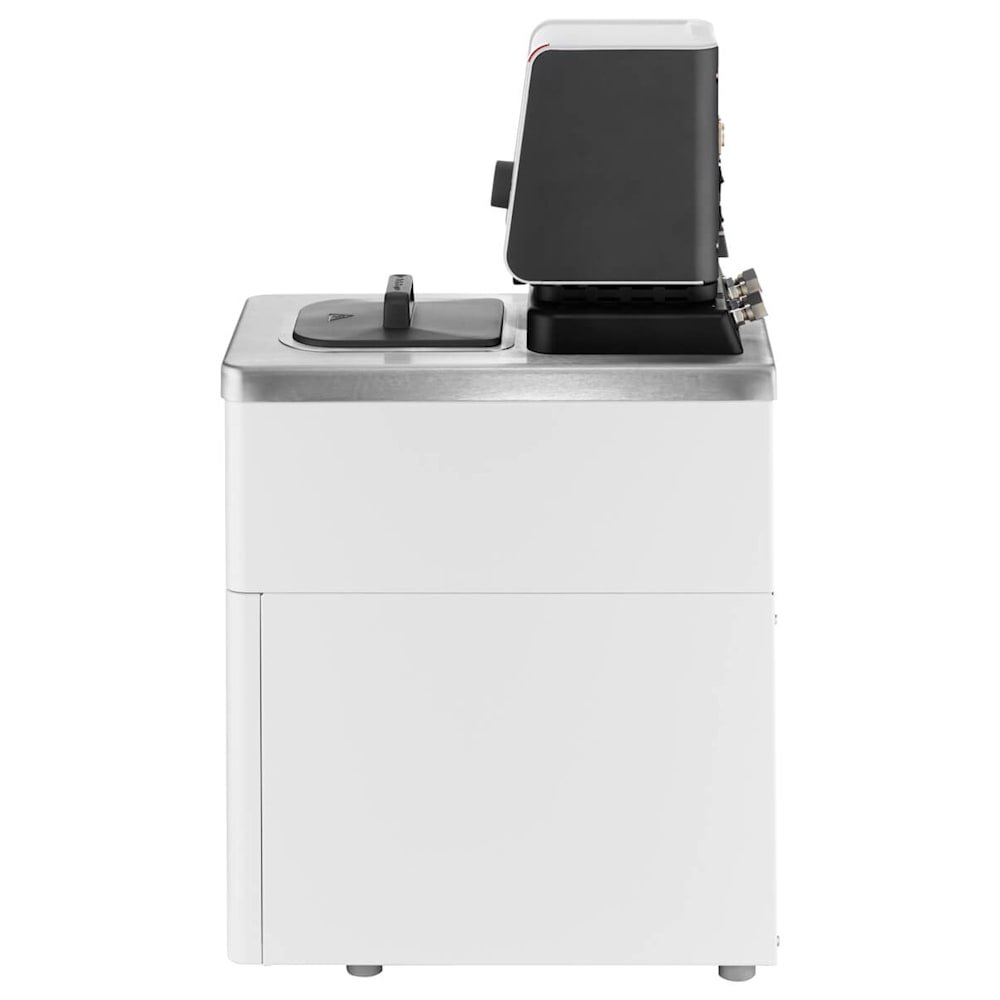

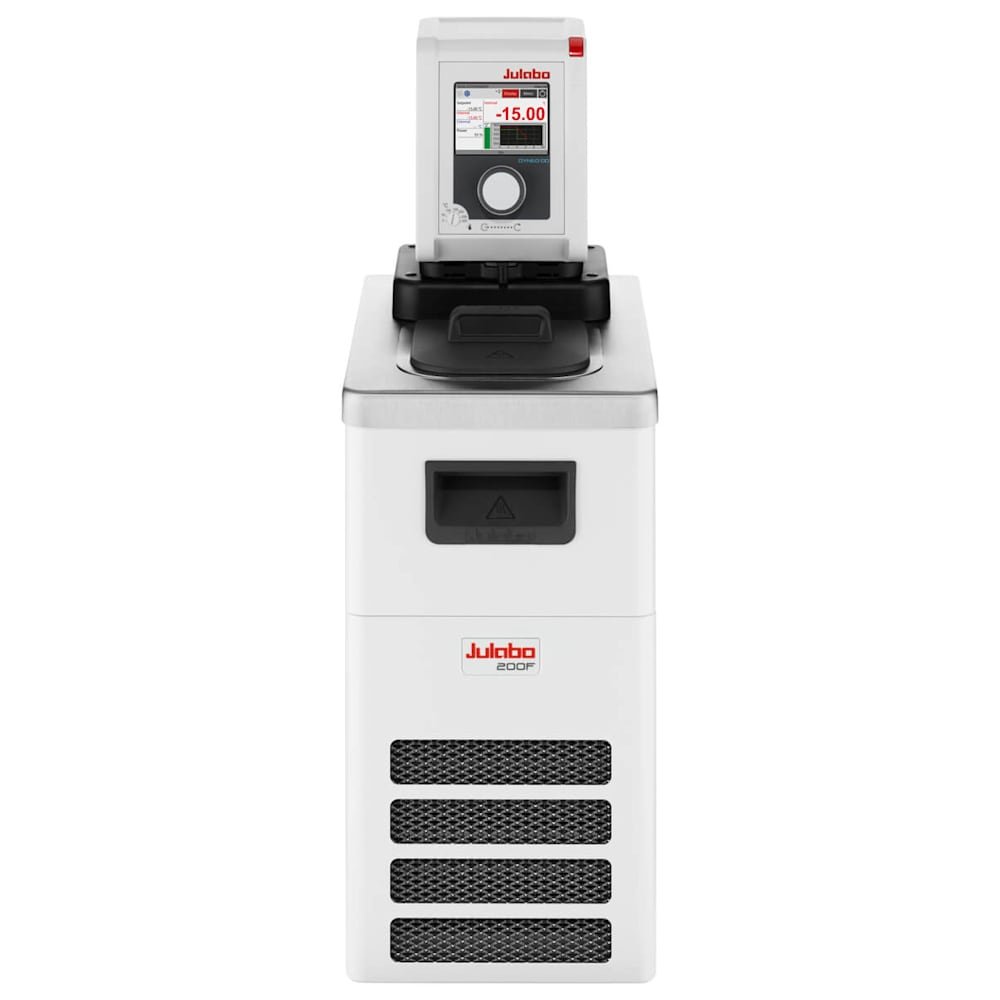

Julabo DYNEO DD-200F – Refrigerated/Heating Circulator
$5,291.00
In Stock
The Julabo DYNEO DD-200F refrigerated and heating circulator ensures highly accurate environmental waterwise fluid mapping by utilizing a compact built-in cooling compressor to track temperature curves down to -20 °C. Running on an internal operating loop framework, it enables technical operators to monitor system variations and pump capacity variables via a high-visibility digital color LCD screen layout interface cleanly, offloading profiles via serial links.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Julabo DYNEO DD-200F - Refrigerated/Heating Circulator Specs
| Order No. | 9021701 |
| Order No. with RS232 Option | 9021701.D |
| Order No. with analog Option | 9021701.A |
| Model series | DYNEO |
| Category | Refrigerated - Heating Circulators |
| Working temperature range (°C) | -20 ... +200 |
| Temperature control | PID |
| Temperature stability (°C) | ±0.01 |
| Setting / display resolution | 0.01 °C |
| Temperature Display | 3.5" TFT Display |
| Heating capacity (kW) | 2 |
| Cooling capacity (Medium Ethanol) | °C 200 20 10 0 -10 -20 kW 0.2 0.2 0.17 0.15 0.1 0.02 |
| Pump capacity flow rate (l/min) | 8 ... 23 |
| Pump capacity flow pressure (bar) | 0.1 ... 0.6 |
| Viscosity max. (cSt) | 50 |
| Bath opening / bath depth (W x L / D cm) | 13 x 15 / 15 |
| Pump connections | M16x1 |
| Barbed fittings diameter (inner dia. / mm) | 8 / 12 |
| Filling volume (liters) | 3 ... 4 |
| Refrigerant stage 1 | R134a |
| Filling volume refrigerant stage 1 (g) | 70 |
| Global Warming Potential for R134a | 1430 |
| Carbon dioxide equivalent stage 1 (t) | 0.1 |
| Digital interfaces | USB |
| Analog connection input / output | Optional |
| Ambient temperature | 5...40 °C |
| Dimensions W x L x H (cm) | 23 x 39 x 65 |
| Weight (kg) | 25.7 |
| Included with each unit | 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) |
| Bath tank | Stainless steel |
| Bath cover | integrated |
| Cooling of compressor | Air |
