PolyScience MX23P100-A12E 23L Polycarbonate Open Bath, MX (Ambient +10 to 85 deg C), 240V, 50Hz
$1,573.00
In Stock
The PolyScience MX23P100-A12E open bath system delivers advanced fluid thermal conditioning across an ambient +10 to 85 °C range inside an economical 23-liter rigid polycarbonate tank. Powered by a standard 240V 50Hz electrical supply input framework, it features a built-in MX immersion heating core and a single-speed pressure pump. This laboratory setup displays real-time parameters on a vivid segmented digital LCD screen interface, offloading data via integrated serial connectivity links.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
PolyScience MX23P100-A12E 23L Polycarbonate Open Bath, MX (Ambient +10 to 85 deg C), 240V, 50Hz Specs
| Description | 23 L Open Bath System |
| Controller Type | MX |
| Display | 3.25" LCD |
| Languages Supported | English |
| Working Temperature Range °C | Ambient +10° to 85° |
| Temperature Stability °C | ±0.07° |
| Temperature Calibration Capability | 1-point |
| Working Access (L x W x D) (cm) | 21 x 30.5 x 20.3 cm |
| Pump Type | Pressure |
| Flammability Class (DIN 12876-1) | I (NFL) |
| Working Temperature Range °F | Ambient +20° to 185° |
| Working Temperature Range °C | Ambient +10° to 85° |
| Reservoir Capacity (gallons) | 6.08 |
| Reservoir Capacity (liters) | 23 |
| Reservoir/Tank Material | Polycarbonate |
| Reservoir Cover | Included |
| DuraTop | Yes |
| Working Access (L x W x D) (inches) | 8.3 x 12 x 8 in |
| Working Access (L x W x D) (cm) | 21 x 30.5 x 20.3 cm |
| Temperature Stability °F | ±0.13° |
| Temperature Stability °C | ±0.07° |
| Display | 3.25" LCD |
| Display Resolution (Set) | 0.1 |
| Display Resolution (Read) | 0.1 |
| Pump Type | Pressure |
| Pump Speed | One |
| Process Connections | 1/2" O.D. Barbed Tubes |
| Flammability Class (DIN 12876-1) | I (NFL) |
| Over-Temperature Protection / Failsafe Heater Control | Yes |
| Low Liquid Level Protection | Yes |
| Reservoir Drain | Yes |
| Cooling Coil | Accessory |
| Maximum Ambient Temperature °F | 95° |
| Maximum Ambient Temperature °C | 35° |
| Overall Dimensions (L x W x H) (inches) | 18 x 13.6 x 17.4 in |
| Overall Dimensions (L x W x H) (cm) | 45.7 x 34.5 x 44.1 cm |
| Environmental Compliance | RoHS, WEEE |
| Shipping Weight (pounds) | 45.0 |
| Shipping Weight (kilograms) | 20.4 |
| Part Number | MX23P100-A11B |
| Maximum Pressure (psi) | 2.3 |
| Maximum Pressure (bar) | 0.16 |
| Maximum Pressure Flow Rate (gpm) | 3.60 |
| Maximum Pressure Flow Rate (l/min) | 13.5 |
| Included Hardware | Fitting Kit for External Applications |
| Heater Wattage | 1100 |
| Electrical Requirements (VAC/Hz/Ph/A) | 120/60/1/10 |
| Regulatory Approvals | ETL |
| Part Number | MX23P100-A12E |
| Maximum Pressure (psi) | 1.8 |
| Maximum Pressure (bar) | 0.12 |
| Maximum Pressure Flow Rate (gpm) | 3.10 |
| Maximum Pressure Flow Rate (l/min) | 11.9 |
| Included Hardware | Fitting Kit for External Applications |
| Heater Wattage | 1100 |
| Electrical Requirements (VAC/Hz/Ph/A) | 240/50/1/6 |
| Regulatory Approvals | CE |
Be the first to review “PolyScience MX23P100-A12E 23L Polycarbonate Open Bath, MX (Ambient +10 to 85 deg C), 240V, 50Hz”
Related products

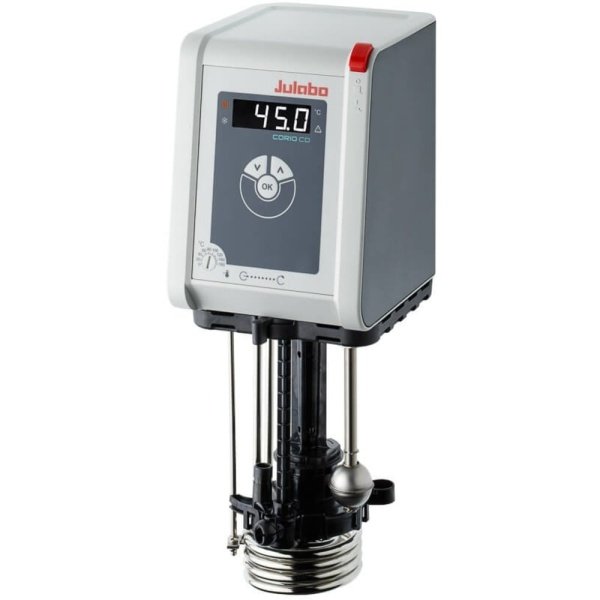

Julabo CD-BC4 – Heating Circulator
