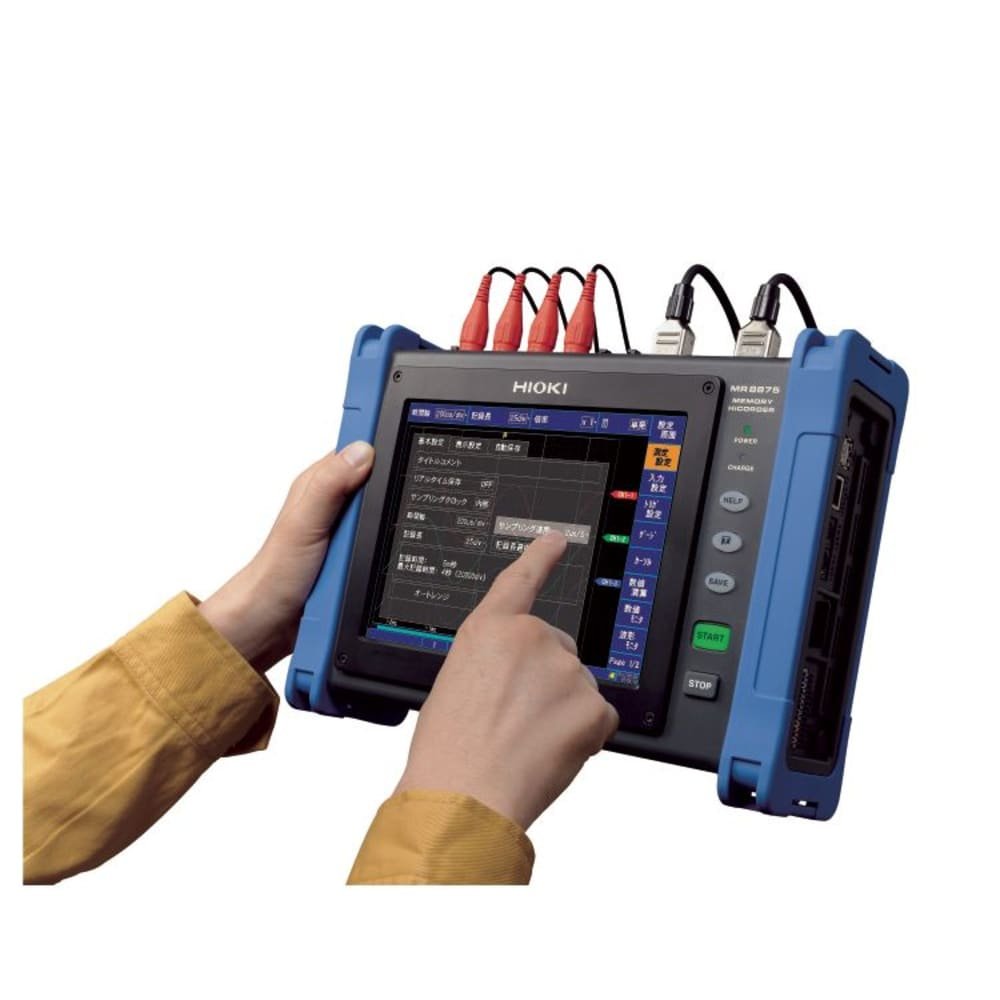

Hioki MR8875 Memory HiCorder (Max. 16-60 channels, 32MW)
$4,494.00
In Stock
Hioki MR8875 managing a multi-channel dynamic scanning interface, this advanced tracking recorder logs rapid waveform modulations across electrical system testing benches.
- 16 standalone scanning channels monitor inputs.
- 32 MW extreme memory volume holds.
- 150 V maximum direct voltage protects.
- 100 kHz frequency response maps signals.
- 8.4-inch color LCD display provides visualization.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Hioki MR8875 Memory HiCorder (Max. 16-60 channels, 32MW) Specs
| Number of channels | 16 |
| Measurement ranges | 5 mV, 10 mV, 20 mV, 50 mV, 100 mV, 200 mV, 500 mV, 1 V, 2 V, 5 V, 10 V/div |
| Maximum input voltage | 150 V DC |
| Frequency characteristics | DC to 100 kHz, -3 dB |
| Time axis | 200μs, 500μs, 1 ms, 2 ms, 5 ms, 10 ms, 20 ms, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 30 s, 50 s, 60 s, 100 s, 2.5 min/div External sampling |
| Memory capacity | Total 32 MW (8 MW/unit) |
| Display | 8.4-inch SVGA TFT color LCD with touch panel |
| Power supply | 1. AC Adapter Z1002 |
| External dimensions and weight | 298 (W) × 224 (H) × 84 (D) mm |
| Accessories | AC Adapter Z1002 × 1, protective sheet × 1, USB cable × 1, strap × 1, application disc × 1 |
- AC Adapter
- Protective sheet
- USB cable
- Strap
- Wave Viewer (Wv) Software
NOTE: DOES NOT include input modules, memory card, WAVE PROCESSOR 9335 Software.
Must be ordered separately.
