Michell Instruments Optidew Chilled Mirror Hygrometer
$4,252.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Description
Description

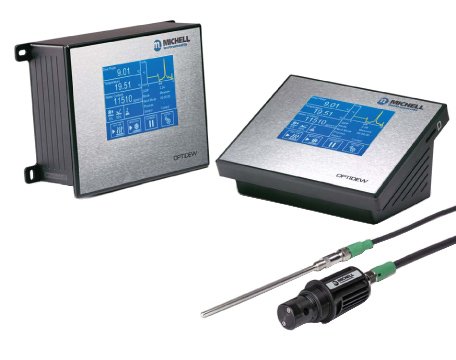

The Michell Instruments Optidew Chilled Mirror Hygrometer is available in bench top and wall mount configurations, and features an intuitive touch screen interface for easy local operation. Using the latest developments in chilled mirror technology, it has a response speed comparable to polymer relative humidity sensors, combined with the reliability of drift-free measurements common to all chilled mirror instruments.
Applications for the Optidew include:
- Reference humidity instrument for climatic and environmental chambers
- Inlet air measurement for engine testing
- HVAC testing
- Environmental monitoring in clean rooms
- Coating process monitoring – for confectionary and pharmaceuticals
- Control of humidity for metallurgical processes
Michell Instruments Optidew Chilled Mirror Hygrometer Specs
| Feature | Chilled mirror hybrid sensor |
| OPT401 | Bench Top |
| OPT501 | Wall Mount |
| OPT501 | Wall Mount |
| Feature | ±0.15°C dew point |
| Feature | ±0.1°C temperature |
| Feature | ±0.1°C temperature |
| Measurement range | -40 to 248°F (-40 to 120°C) |
| Feature | Touch-screen HMI |
| Feature | Polyoxymethylene (acetal, standard conditions) |
| Feature | PEEK (poly ether ether ketone, harsh environments) |
| Feature | PEEK (poly ether ether ketone, harsh environments) |
| Repeatability | ±0.05°C |
| Sensitivity | ±0.01°C |
| Feature | M36x1.5 process connection |
