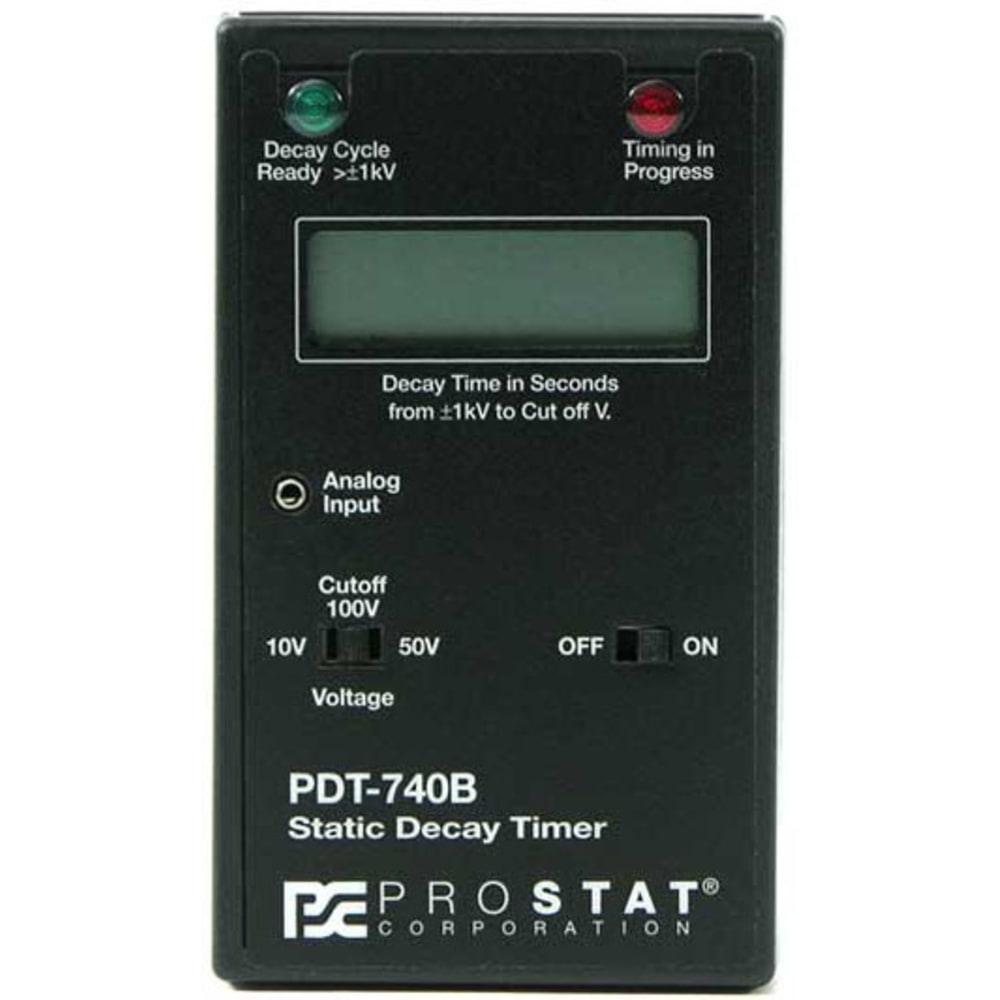

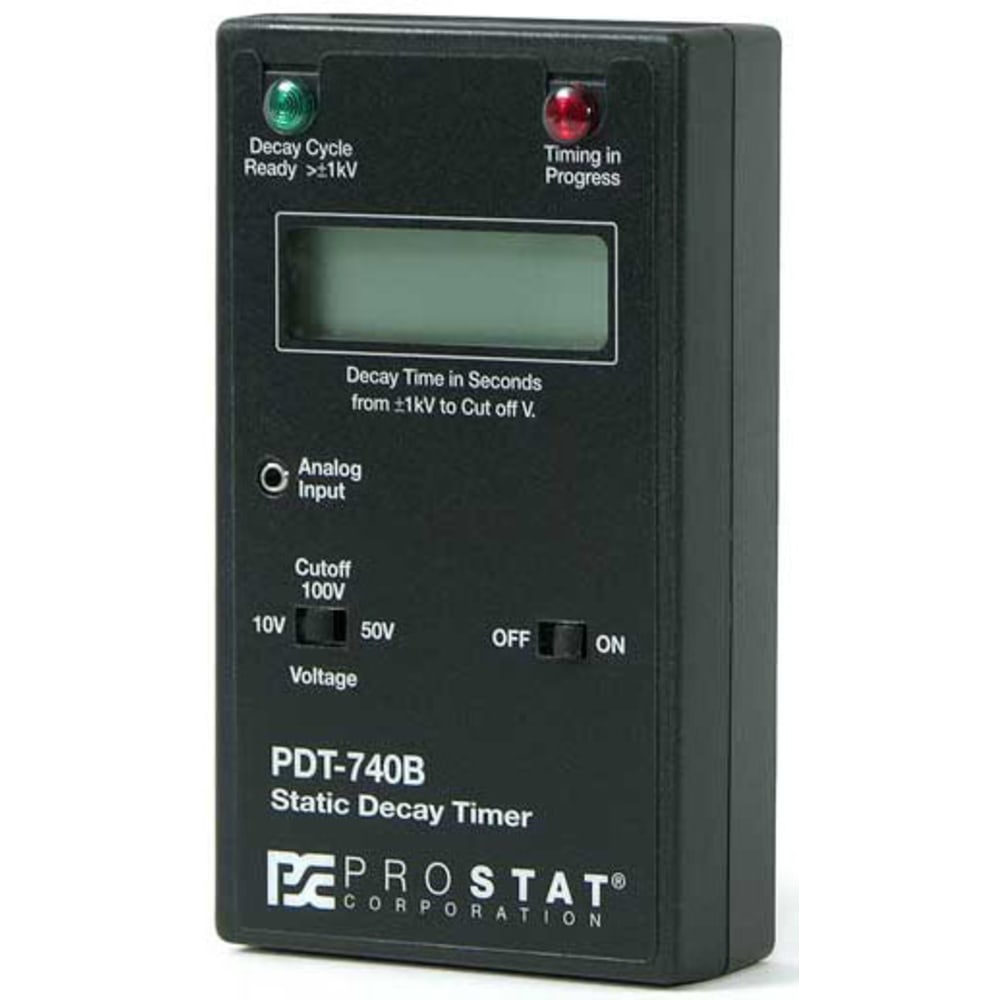

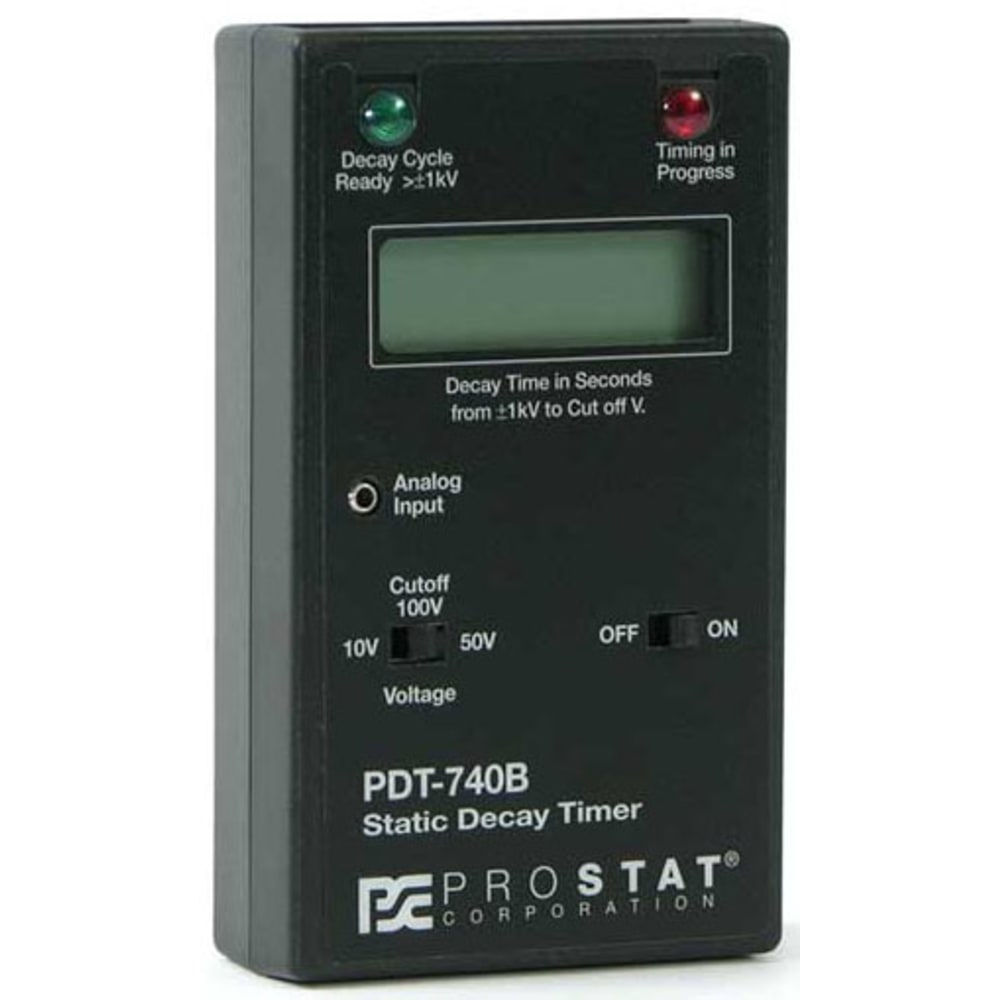

Prostat PDT-740B – Static Decay Timer
$377.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Prostat PDT-740B - Static Decay Timer Specs
| Controls | OFF-ON Cut Off Voltage, 10, 50 and 100 Volts (Selects Voltage to stop timing) |
| Indicators | Green LED: Decay Cycle Ready > ± 1kV, CPM voltage > ± 1,000 volts Red LED: Timing in Progress, CPM voltage decay timing activated LOBAT displayed when battery voltage <6.0 volts |
| Display | Liquid Crystal Display (LCD) displays elapsed decay time from ± 1,000 volts to selected Cut Off voltage in seconds and tenths of a second (00.0) |
| Polarity | Automatically senses Positive & Negative voltage references |
| Zero & Reset | Automatically Resets Timer and Display to 00.0 when CPM voltage > ± 1kV. Reset indicated when Green LED Decay Cycle Ready LED is ON. |

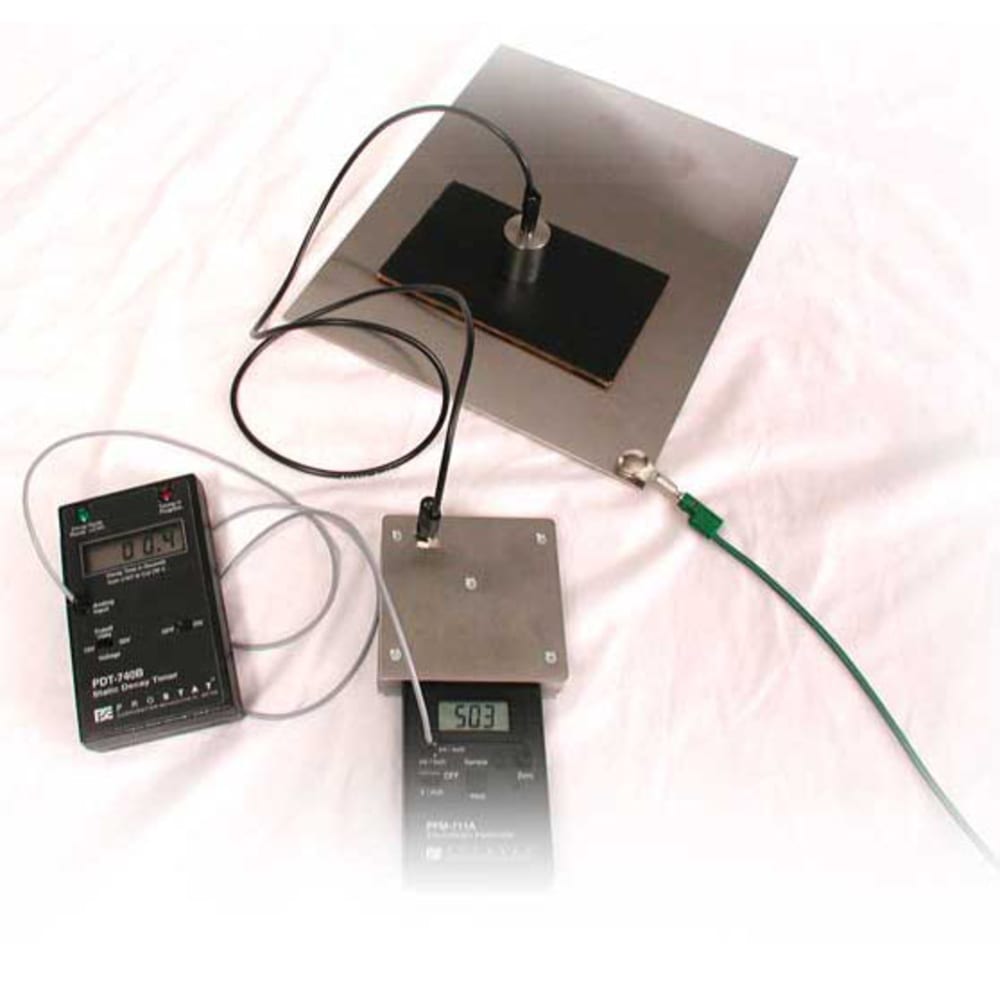

| Response | Approximately 200 milliseconds in combination with the CPM-720 and PFM-711A |
| Timing Range | From 0.2 to 159.9 seconds |
| Timing Setpoints | Reset when voltage input 100mv ± 2mv (1,000 Field Meter Volts ± 20V) Cut Off Voltage @ 100 V: 10mv ± 0.2mv (100 Field Meter Volts ± 2V) Cut Off Voltage @ 50 V: 5mv ± 0.2mv (50 Field Meter Volts ± 2V) Cut Off Voltage @ 10 V: 1mv ± 0.2mv (10 Field Meter Volts ± 2V) |
| Accuracy | Typically < ± 5% |
| Power | One (1) standard 9-volt battery, PROCELL, Eveready #216 (NEDA 1604, JIS 006P, IEC 6F22)Eveready #216 |
| Battery Life | >40 hours typical |
| Dimensions (L x W x D) | 4.50 inches x 2.75 inches x 1.0 inches |
| Weight: | 6.5 oz. (184 gm) |
- PDT-740B Static Decay Timer
- 700AC Analog Cable
- 9 Volt Alkaline Battery
