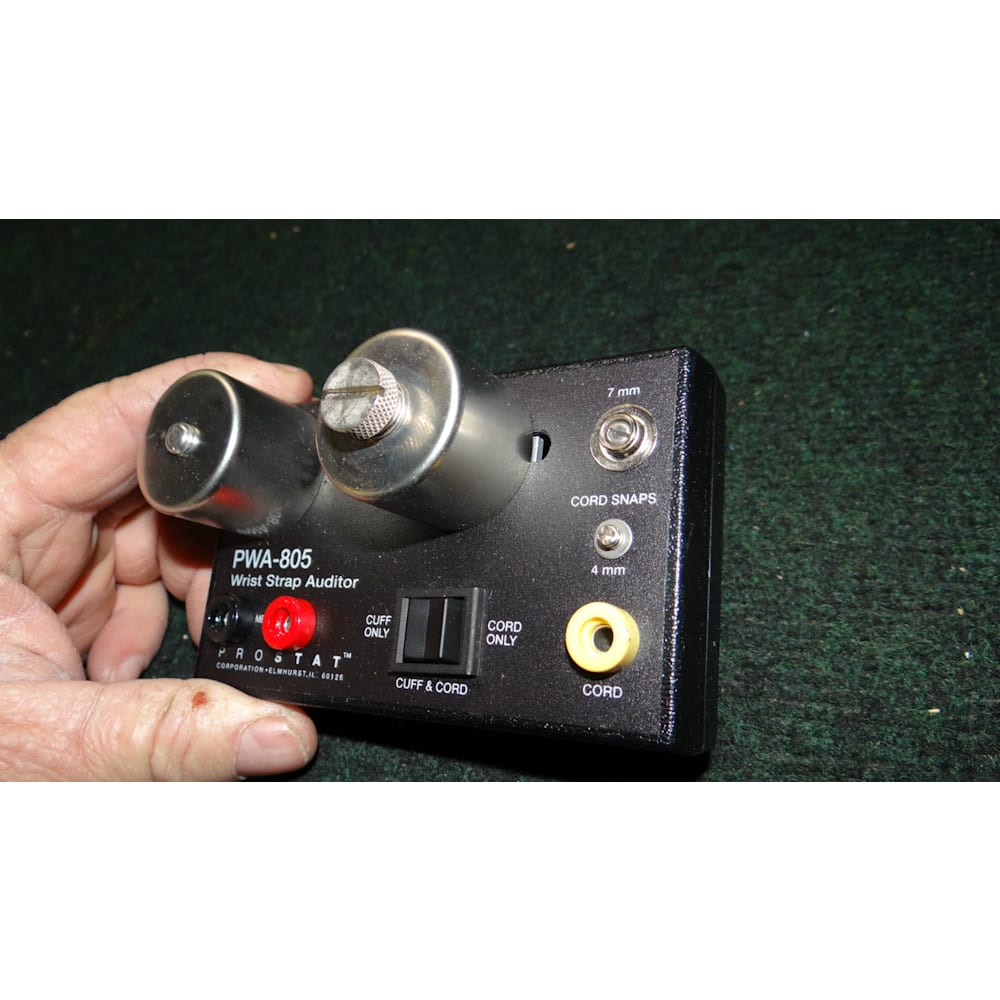

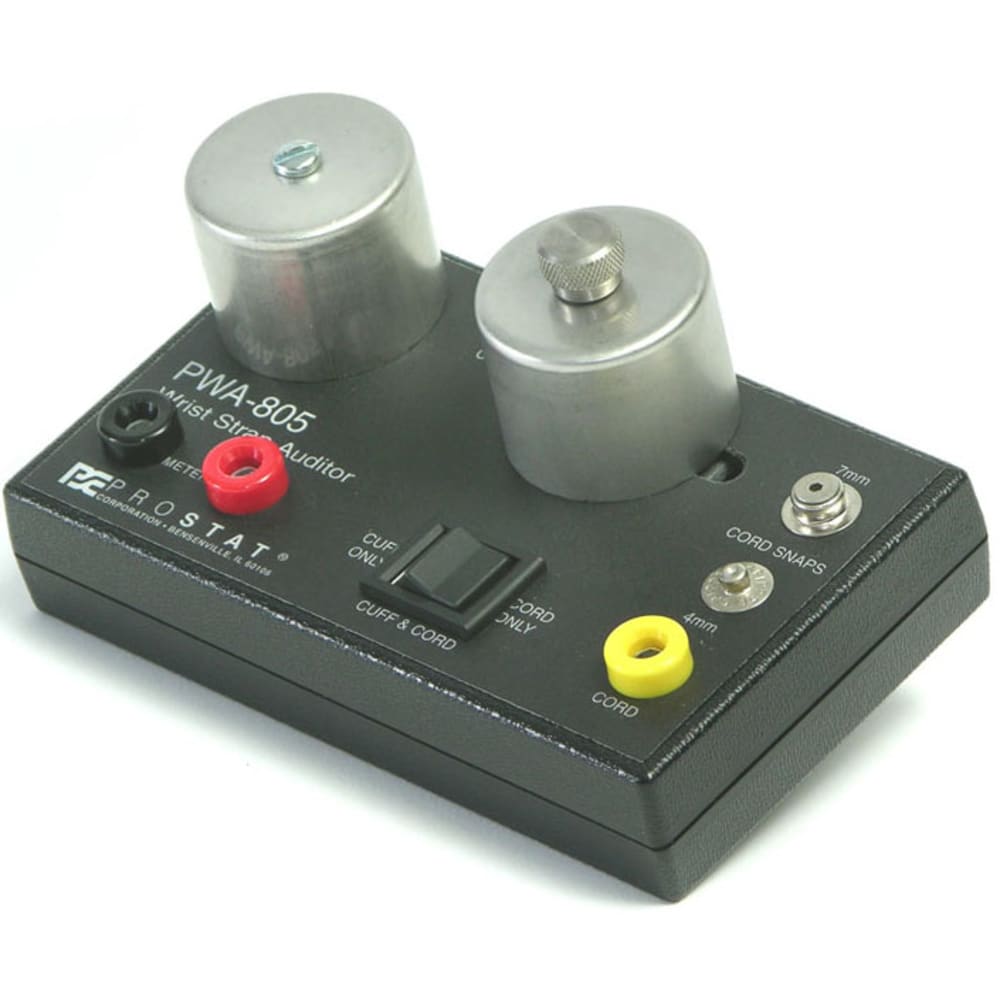

Prostat PWA-805 – Wrist Strap Auditor
$244.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Prostat PWA-805 - Wrist Strap Auditor Specs
| Model | Prostat PWA-805 |
| Fixture Case (L x W x H) | 4.6" L x 2.75" W x 0.95" H inches |
| Wrist Strap Cylinders | Two (2) top mounted metal cylinders: 1 fixed, 1 adjustable for cuff size Cylinder Diameter: 1.25" x 1.0" H Adjustable cylinder equipped with knurled locking screw for positioning |
| Controls | Three position rocker switch: (1) Cuff Only [Resistance between Cylinders] (2) Cuff & Cord Assembly [Resistance from cord ground point to cuff cylinder]; (3) Cord Only [Resistance from cord ground point to cuff snap connections] |
| Connections | Megohmmeter: 2 banana receptacles for meter leads Cord Groundable Point: 1 banana receptacle 2 Cord Cuff Snaps: 1 each 7mm diameter, 1 each 4mm diameter |
| Power | Not Applicable. The fixture is used in conjunction with the Prostat PRS-801 Resistance System and test leads or any resistance measuring device. |
| Weight | 4.5 oz (128g) |
