Fluke Networks CFP2-100-Q-NW CertiFiber Pro Quad OLTS V2 without Wi-Fi
Fluke Networks CFP2-100-Q-NW CertiFiber Pro Quad OLTS V2 without Wi-Fi - Image 2

Fluke Networks CFP2-100-Q-NW CertiFiber Pro Quad OLTS V2 without Wi-Fi

$10,891.00
In Stock
In Stock
Add to wishlist
Commercial Pricing
Request for Quotations for Bulk Orders
SKU: Fluke-Networks-CFP2-100-Q-NW
Category:
Brand:

Fluke Networks CFP2-100-Q-NW CertiFiber Pro Quad OLTS V2 without Wi-Fi Specs

Input ConnectorInterchangeable connector adapter (LC standard, SC, ST and FC optional)
Detector TypeInGaAs
Wavelengths850 nm, 1300 nm, 1310 nm, 1550 nm
Power Measurement Range0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths)
Power Measurement Uncertainty1,2< +/- 5% +/- 32 pW
Measurement Linearity3< ± 0.1 dB
Re-calibration Period1 year
SpecificationCertiFiber Pro Multimode Modules
Testing Speeds (excludes referencing times)Smart Remote mode: < 3 seconds (2 wavelengths, one direction, auto wavelength detection)   Far End Source mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection)   Loopback mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection)
Input/Output ConnectorsInterchangeable connector adapter (LC standard, SC, ST and FC optional)
Launch Condition1,2Encircled Flux compliant to TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1
Fiber Types Tested50/125 µm or 62.5/125 µm
Source Type and WavelengthsLED source 850 nm ± 30 nm 1300 nm ± 20 nm
Maximum Length Measurement12 km
Length Measurement Accuracy± 1.5 m plus ± 1 % of length
Output Power (Nominal)≥ -24 dBm with EF-TRC
Output Power Stability3± 0.05 dB over 8 hours ± 0.03 dB over 15 minutes
Source Wavelengths850 nm, 1300 nm, 1310 nm, 1550 nm
Power Measurement Range0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths)
Power Measurement Uncertainty1, 2< +/- 5% +/- 32 pW
Measurement Linearity3< ± 0.1 dB
Re-calibration Period1 year
TitleRequirement
Output Power>-5 dBm   <0 dBm   SMF-28 singlemode fiber   Continuous wave   SC/UPC connector
Operating Wavelength650 nm nominal
Output ModesContinuous wave   Pulsed mode (2 Hz to 3 Hz blink frequency)
Connector Adapter2.5 mm universal
Laser SafetyClass II CDRH   Over operating temperature range
TitleRequirement
Operating Temperature-18° C to 45° C
Storage Temperature-30° C to +60° C
Operating Relative Humidity   % RH without condensation0 % to 90 %, 32 °F to 95 °F (0° C to 35° C)   0 % to 70 %, 95 °F to 113 °F (35° C to 45° C)
VibrationRandom, 2 g, 5 Hz-500 Hz
Shock1 m drop test with and without module and adapters
SafetyCSA C22.2 No. 1010.1: 1992   EN 61010-1 1st Edition + Amendments 1, 2
Pollution Degree2
AltitudeOperating: 4,000 m; storage: 12,000 m
EMCEN 61326–1

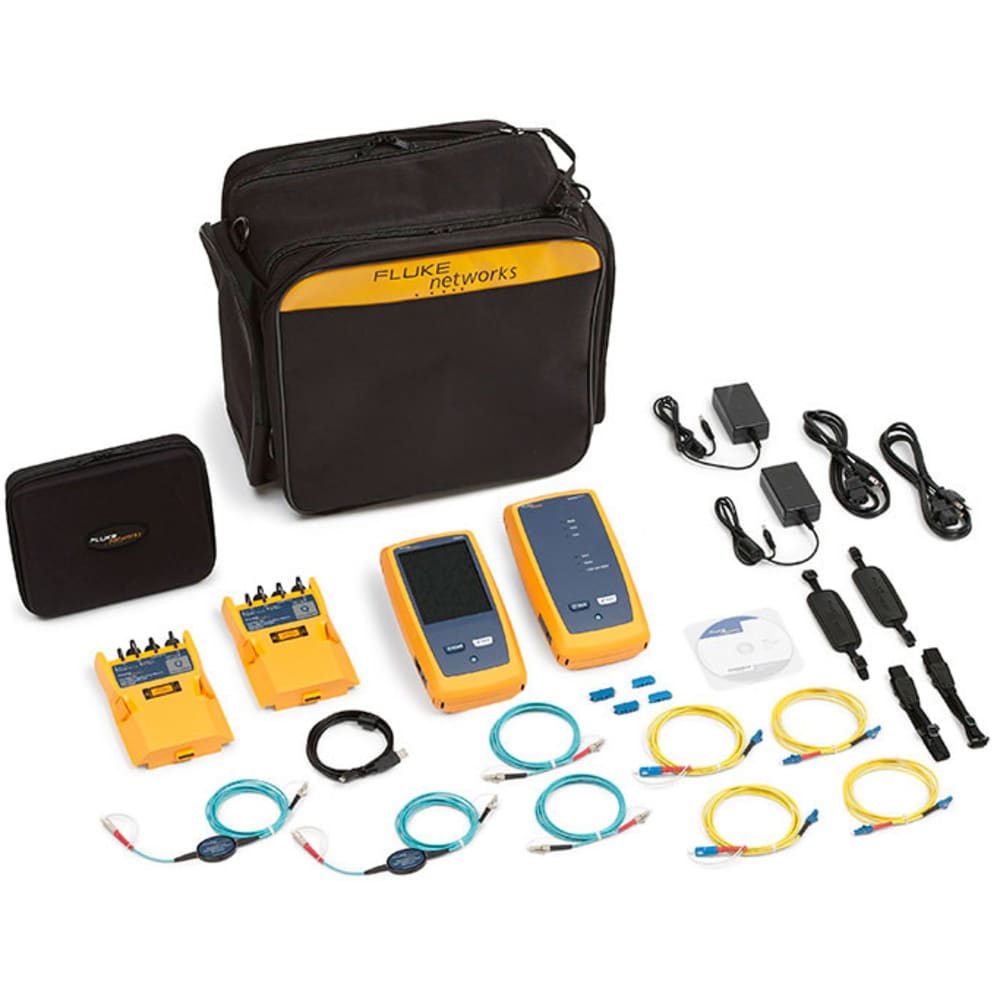

  • Versiv Mainframe & Remote
    •
  • (2) CertiFiber Pro Quad OLTS modules
    •
  • SC/LC EF-compliant MM TRC Kit 50 µm
    •
  • SC/LC SM TRC Kit
    •
  • TRC Carrying Case
    •
  • (2) LC/LC Simplex Adaptors
    •
  • (2) Hand Straps
    •
  • (2) Shoulder Straps
    •
  • Carry Case
    •
  • USB Interface Cable
    •
  • Versiv Open Source Software CD
    •
  • (2) AC Chargers
    •
  • Statement of Calibration
    •
  • Getting Started Guide
