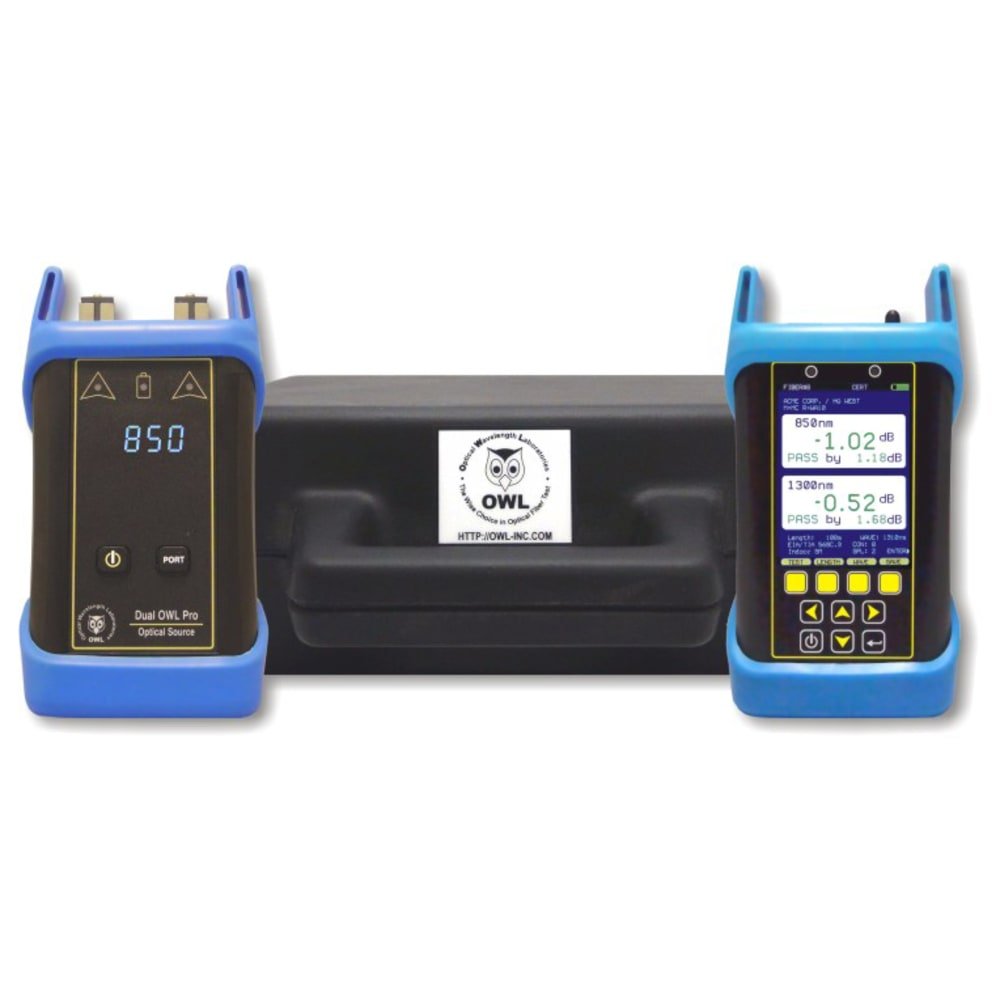

OWL KF7-D83 – Fiber Owl 7 Basic Certification Kit (Multimode: 850/1300nm)
$653.00
In Stock
To establish absolute compliance with standards-based insertion loss budget parameters, field engineers deploy high-resolution diagnostics. The OWL KF7-D83 configuration focuses on dual multimode local area network attenuation profiling via an 850/1300 nm LED light engine. This handheld assembly displays high-sensitivity core metrics on a 2.8-inch color screen, recording 10,000 custom reference data logging entries.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
OWL KF7-D83 - Fiber Owl 7 Basic Certification Kit (Multimode: 850/1300nm) Specs
| Detector Type | InGaAs |
| Calibrated Wavelengths *1 | 850, 980, 1300, 1310, 1490, 1550, 1625 |
| Measurement Range | +5 to -70 dBm |
| Accuracy | ±0.15 dB |
| Display Resolution | 0.01 dB |
| Battery Life | Up to 50 hours (Lithium Polymer) |
| Detector Connector Type | 2.5mm/1.25mm universal |
| Data Storage | Up to 10000 data points |
| Displayed Measurement Units | dBm, dB, mW, µW, nW |
| Modes of Operation | CERT, LOSS, OPM |
| Display Type | Hi-resolution Color LCD |
| Auto-shutdown | Yes |
| Operating Temperature | -10 to 55° C |
| Storage Temperature | -30 to 70° C |
| Dimensions | 2.9 x 4.49 x 1.3 in. (72.9 x 112.3 x 31.8 mm) |
| Weight | 12 oz. (373g) |
| Output Type | Multimode |
| Launch Method | LED |
| Center Wavelength | 850 nm: 850 ±30 nm 1300 nm: ± 50 nm |
| Spectral Width | 850 nm: 50 nm 1300 nm: 180 nm |
| Output Power | -20 dBm |
| Output Modes | CW / Modulated |
| Initial Accuracy | ± 0.1 dB |
| Battery Life | Up to 150 hours (re-chargeable Lithium Polymer) |
| Operating Temp. | 0 to 55° C |
| Storage Temp. | 0 to 75° C |
| Dimensions | 2.87 x 4.42 x 1.25 in. (72.9 x 112.3 x 31.8 mm) |
| Weight | 10 oz. (284g) |
| Connector Type | SC |
- Fiber OWL 7 (p/n: F7)
- Dual OWL Pro (p/n: DP83)
- Hard-shell carrying case
- Protective rubber boots
- USB download cables and battery chargers
- USB flash drive containing OWLView software and product documentation
- NIST certificate of calibration
