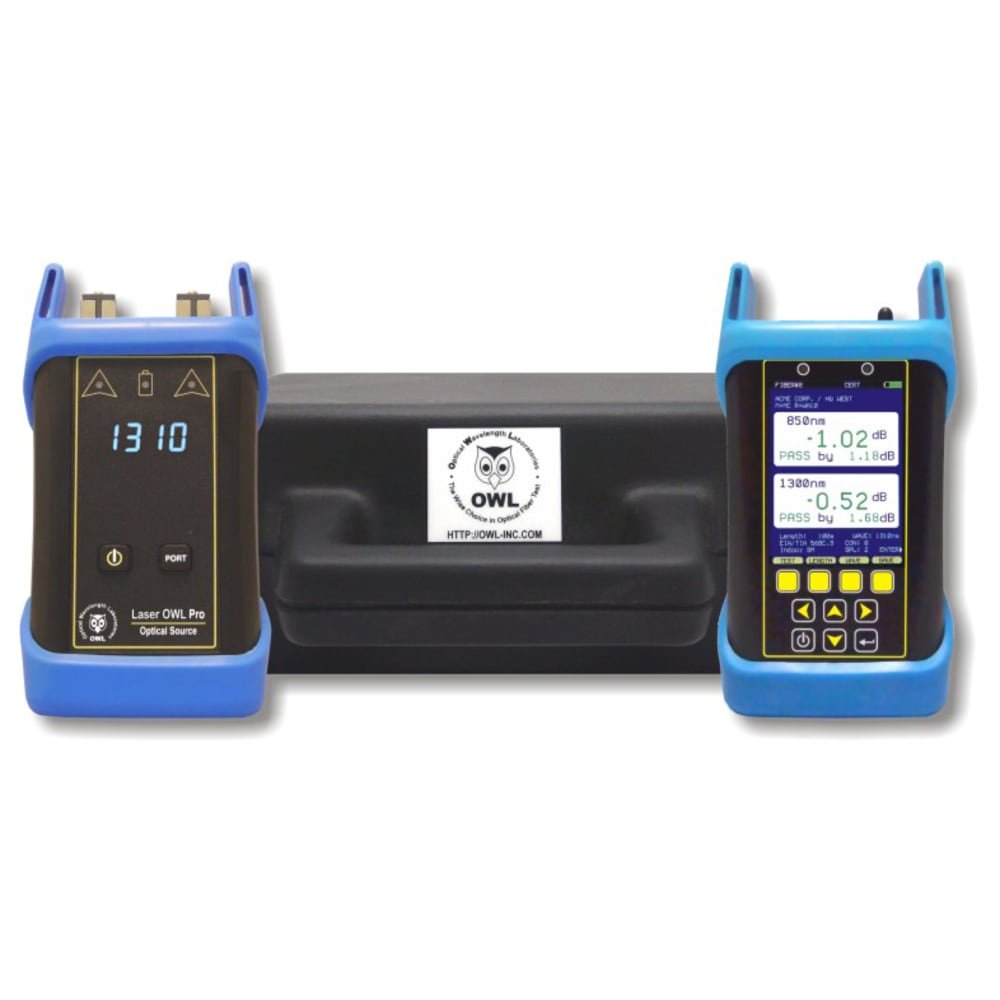

OWL KF7-L35 – Fiber Owl 7 Basic Certification Kit (Singlemode: 1310/1550nm)
$1,065.00
In Stock
The single-mode optimized OWL KF7-L35 ensures complete physical layer compliance across long-haul telecom networks. Facility engineers use this specialized dual-laser setup to execute zero-loss, standards-compliant link validation, leveraging an InGaAs detector and 10,000-point data logging memory for comprehensive tier-one documentation.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
OWL KF7-L35 - Fiber Owl 7 Basic Certification Kit (Singlemode: 1310/1550nm) Specs
| Detector Type | InGaAs |
| Calibrated Wavelengths *1 | 850, 980, 1300, 1310, 1490, 1550, 1625 |
| Measurement Range | +5 to -70 dBm |
| Accuracy | ±0.15 dB |
| Display Resolution | 0.01 dB |
| Battery Life | Up to 50 hours (Lithium Polymer) |
| Detector Connector Type | 2.5mm/1.25mm universal |
| Data Storage | Up to 10000 data points |
| Displayed Measurement Units | dBm, dB, mW, µW, nW |
| Modes of Operation | CERT, LOSS, OPM |
| Display Type | Hi-resolution Color LCD |
| Auto-shutdown | Yes |
| Operating Temperature | -10 to 55° C |
| Storage Temperature | -30 to 70° C |
| Dimensions | 2.9 x 4.49 x 1.3 in. (72.9 x 112.3 x 31.8 mm) |
| Weight | 12 oz. (373g) |
| Output Type | Singlemode |
| Launch Method | FP Laser |
| Center Wavelength | 1310 nm: 1310 ± 20 nm 1550 nm: 1550 ± 30 nm |
| Spectral Width | 1310 nm: 2 nm 1550 nm: 2 nm |
| Output Power | -10 dBm |
| Output Modes | CW / Modulated |
| Initial Accuracy | ± 0.1 dB |
| Battery Life | Up to 150 hours (re-chargeable Lithium Polymer) |
| Operating Temp. | 0 to 55° C |
| Storage Temp. | 0 to 75° C |
| Dimensions | 2.87 x 4.42 x 1.25 in. (72.9 x 112.3 x 31.8 mm) |
| Weight | 10 oz. (284g) |
| Connector Type | SC |
- Fiber OWL 7 (p/n: F7)
- Laser OWL Pro (p/n: LP35)
- Hard-shell carrying case
- Protective rubber boots
- USB download cables and battery chargers
- USB flash drive containing OWLView software and product documentation
- NIST certificate of calibration
