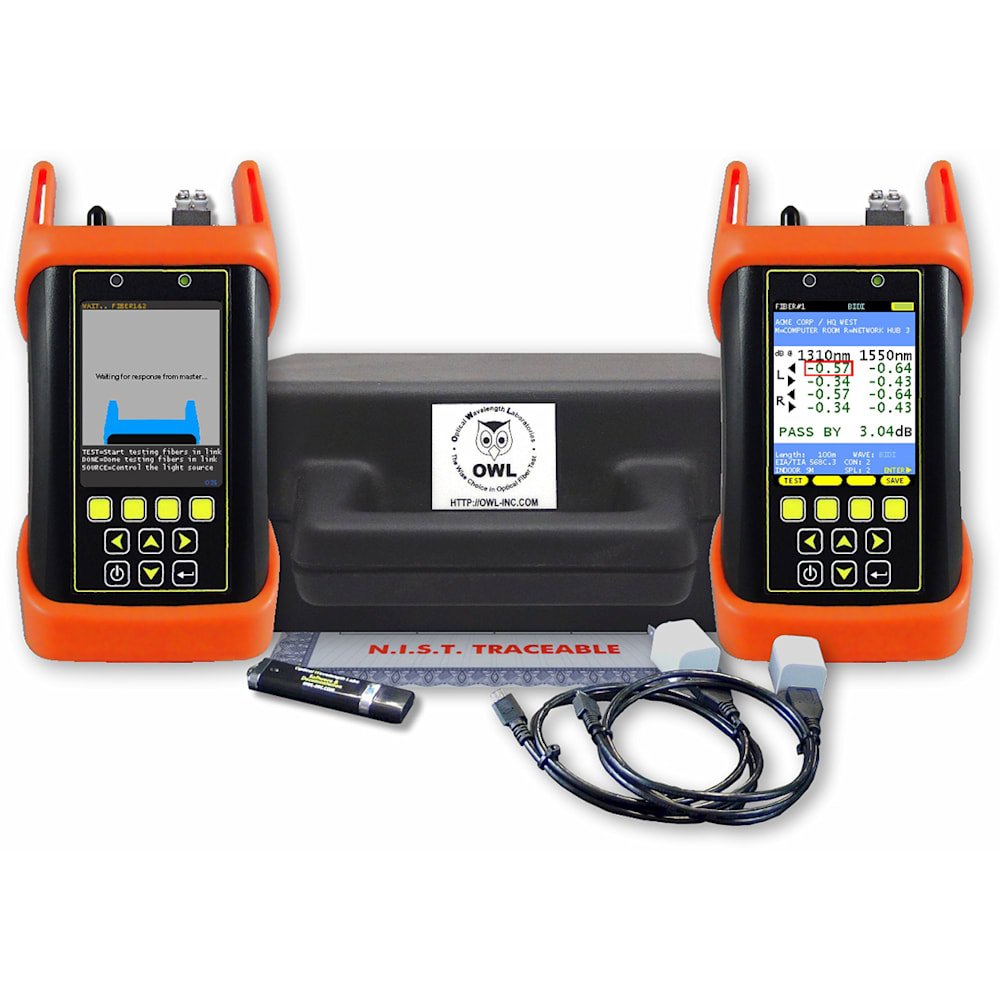

OWL F7BSV – Fiber 7 Bi-Directional OLTS
$2,415.00
In Stock
Simultaneous dual-fiber tier-one compliance validation inside long-haul telecommunication systems reaches maximum operational speed when utilizing the OWL F7BSV bi-directional certifier package. Operating cleanly with ±0.15 dB absolute power meter accuracy, this dual-wavelength 1310/1550 nm single-mode system combines a master meter and remote injector, logging 10,000 custom reference data logging profiles directly for OWLView software report assembly.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
OWL F7BSV - Fiber 7 Bi-Directional OLTS Specs
| Display Type | 2.8" Color LCD |
| Battery Type | Lithium Polymer |
| Battery Life - full brightness - dim mode | MASTER up to 25 hours up to 20 hours REMOTE up to 55 hours up to 50 hours |
| Auto-shutdown | Yes |
| Operating Temperature | -10 to 55 C |
| Storage Temperature | -30 to 70 C |
| Dimensions | 2.87" x 4.42" x 1.25" |
| Weight | 10 ounces (284 g) |
| Detector Type | InGaAs |
| Wavelengths | 850, 980, 1300, 1310, 1490, 1550, 1625nm |
| Measurement Range | +5 to -70 dBm |
| Accuracy (Uncertainty) | ±0.15 dB |
| Display Resolution | 0.01 dB |
| Measurement Units | dBm, dB |
| Connector Type | Universal (2.5mm and 1.25mm) |
| Data Storage Points | <10,000 |
| Download Port Connection | USB |
| Software | OWLView |
| Modes of Operation | PAIR, BIDI, CERT, LOSS, OPM |
| Length Measurement Range | up to 25 km |
| Length Measurement Accuracy | ±2.5 meters |
| Type (MM / SM) | LED / FP Laser |
| Center Wavelength | 850 +30/-10 nm 1300 ±50 nm 11310 ±30 nm 11550 ±30 nm |
| Spectral Width (FWHM) | 850 nm: 50 nm 1300 nm: 180 nm 1310 nm: 2 nm 1550 nm: 2 nm |
| Initial Accuracy (Uncertainty) | ±0.1 dB |
| Output Modes | CW, Modulated |
| Type (MM / SM) | Red Laser |
| Center Wavelength | 650nm |
| Output Power | 0 dBm (1mw) |
| Output Modes | CW, Modulated |
| Connector Type | 2.5mm universal |
