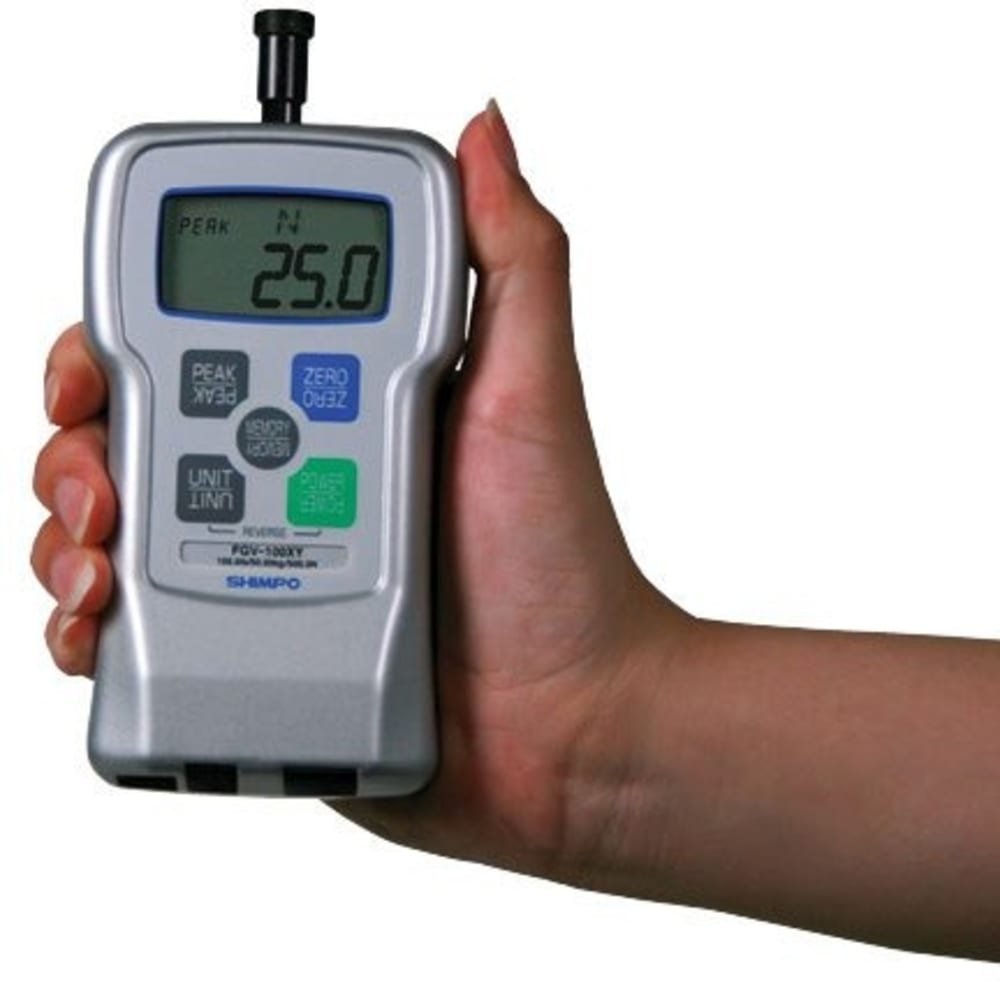

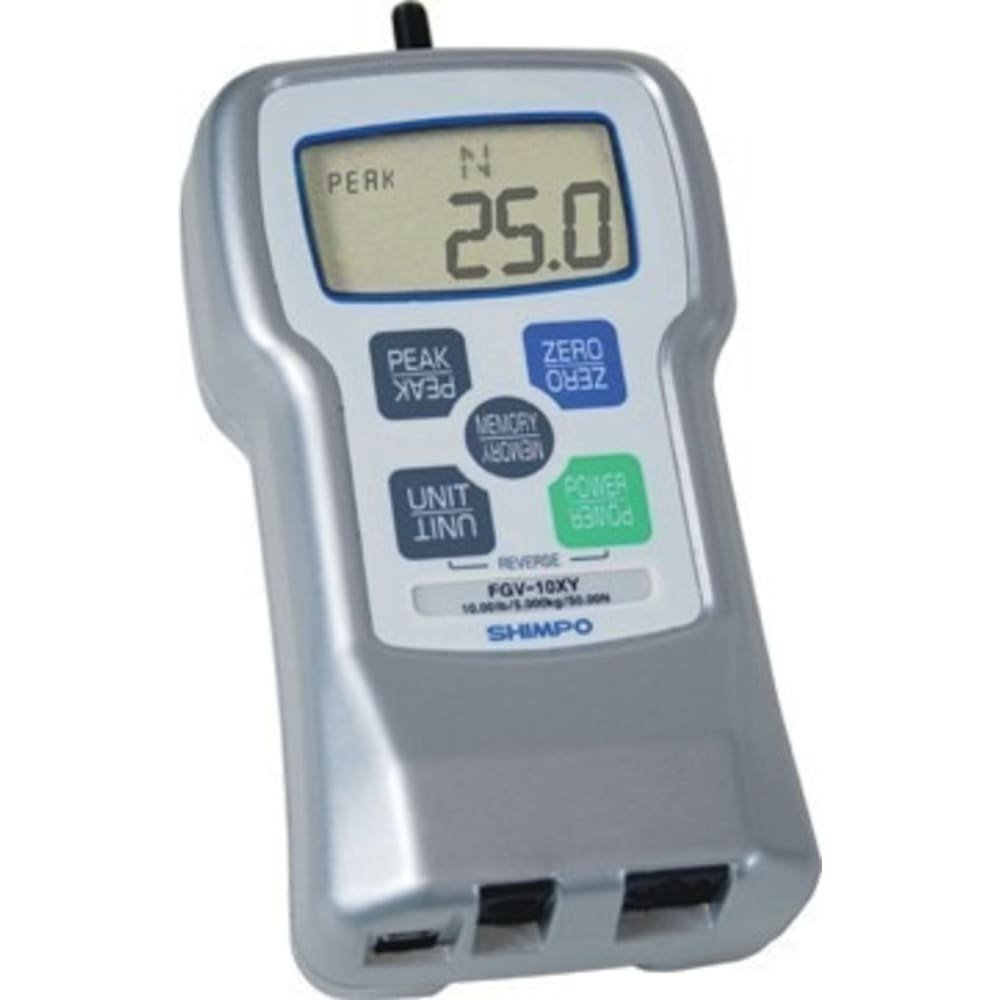

Shimpo FGV-1XY – Digital Force Gauge, 1 lb capacity
$524.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Shimpo FGV-1XY - Digital Force Gauge, 1 lb capacity Specs
| Model | FGV-1XY |
| Capacity | 1 lb 5 N 500 g 16 oz |
| Resolution | 0.001 lb 0.001 N 0.1 kg 0.01 oz |
| Units of Measure | lb / oz /g / N |
| Measurements Mode | Standard, Compression Peak, Tension Peak |
| Display Rate | User Selectable: 1, 2, 3, 5, 10, 20 times per second |
| Sampling Rate | 1000 times per second |
| Accuracy | ± 0.2% F.S. |
| Influence of temperature | Gain : ± 0.01 LOAD / Zero : ±0.01 / R.C. / Drift of zero point can be cancelled with tracking function. |
| Display | Main display: 4-digits 12mm high, Reversible |
| Overload | 200% of Full Scale |
| Tracking | User Selectable (ON/OFF) |
| USB | Allows communication between FGV-XY and ToriemonUSB via USB cable(included). |
| RS-232C | Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory. |
| Analog | ± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10kΩ |
| Overload/Comparator | Open-collector output (Max DC30V/5mA). |
| Power | Rechargeable Nickel hydride battery or AC adapter/charger. Usable while charging. Operating Time: Approximately 8 hours after a full charge. Charging Time: 16 Hours Max. |
| Auto Power Off | Default is 10 minutes. Can be disbaled. Automatically disabled when connected to AC adapter. |
| Memory function | Continuous memory: 1000 data points, Single memory: 100 data points, Standard memory: 50 data points Statistics functions (max, minimum, peak, average, standard deviation) |
| Comparator Function | User Selectable: HI and LO |
| Temperature Range | 0 ~ 40° C (-32 ~ 104° F) |
| Humidity Range | 35 ~ 85% RH |
| Dimensions | 147mm (L) x 75mm (W) x 38mm(H) |
| Weight | Approx. 450g |
| Accessories (Included) | AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable |

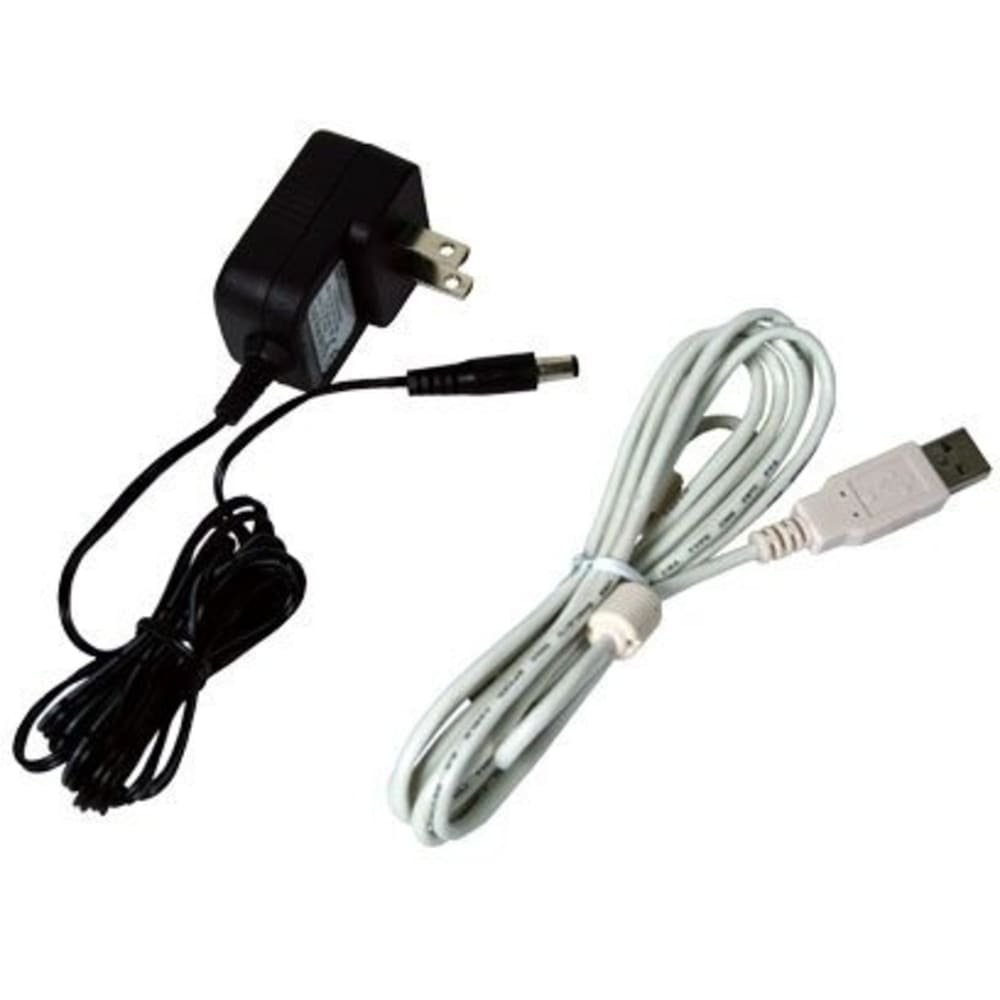

- AC adapter/charger

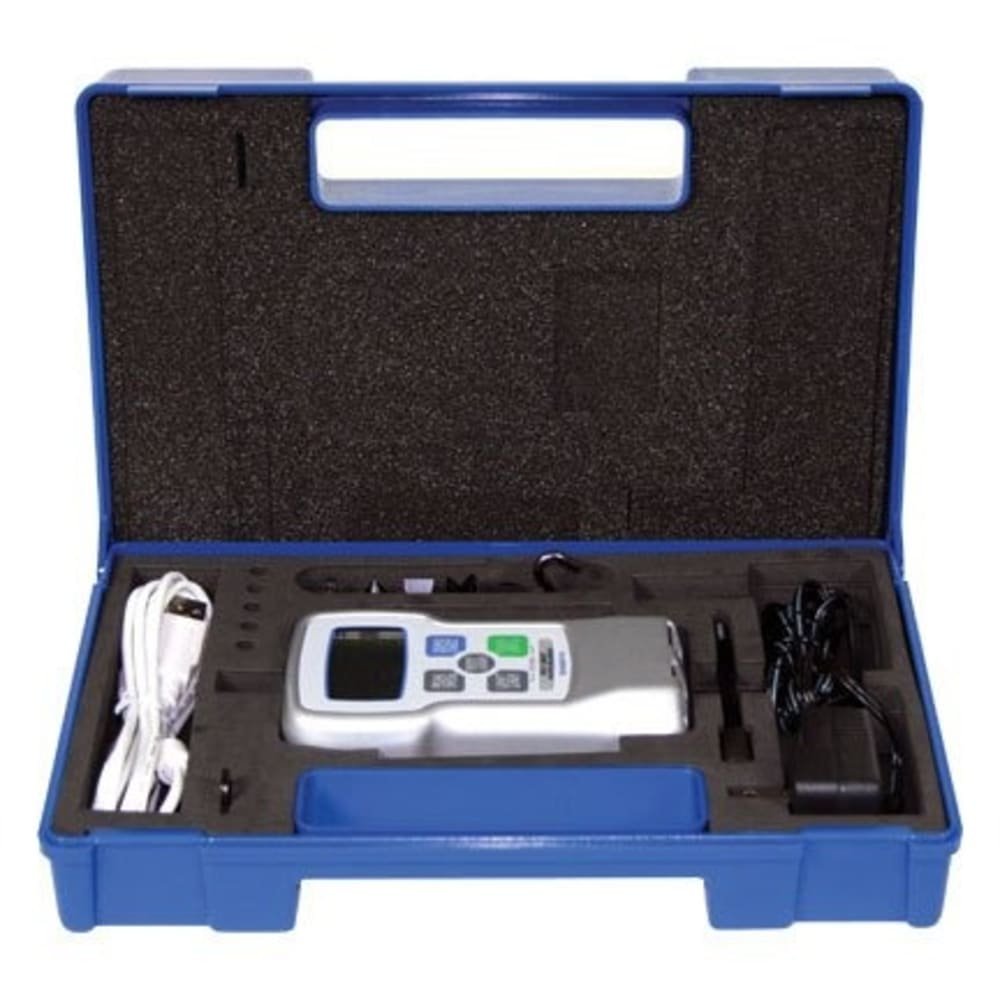

- Carrying case
- Hook
- Chisel
- Flat head
- Notched head
- Hanger
- Cone head
- Thread adapter
- Extension rod
- USB cable
