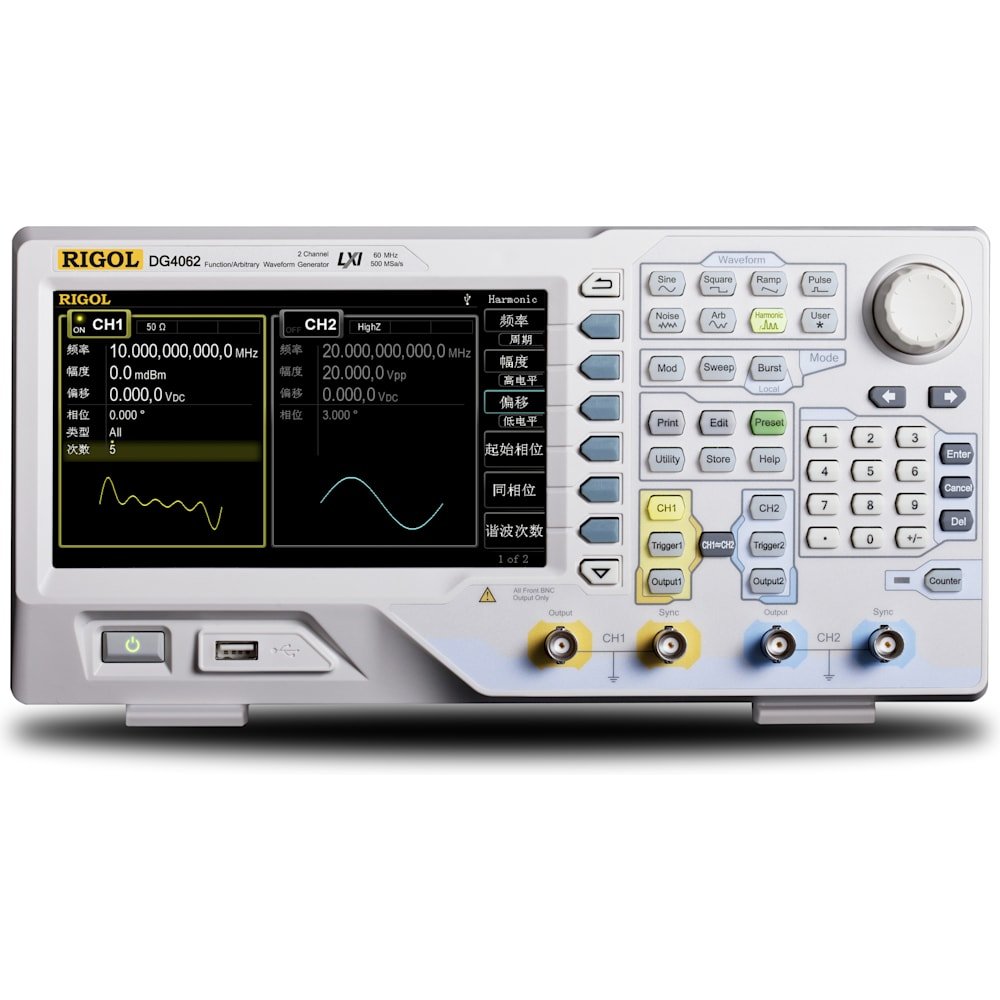

Rigol DG4062 Arbitrary Waveform Generator – 60 MHz
$688.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Rigol DG4062 Arbitrary Waveform Generator - 60 MHz Specs
| Model | DG4062 |
| Maximum Frequency | 60MHz |
| Channels | 2 |
| Sample Rate | 500MSa/s |
| Waveforms | Basic |
| Built-In Arbitrary | 150-off, including: Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, DC |
| Frequency Characteristics | Sine |
| Square | 1μHz to 25MHz |
| Ramp | 1μHz to 1MHz |
| Pulse | 1μHz to 15MHz |
| Harmonic | 1μHz to 30MHz |
| Noise (-3dB) | 60MHz Bandwidth |
| Arbitrary Waveform | 1μHz to 15MHz |
| Resolution | 1μHz |
| Accuracy | ±2ppm, 18°C to 28°C |
| Sine Wave Spectral Purity | Harmonic Distortion |
| Total Harmonic Distortion | <0.1% (10Hz to 20kHz, 0dBm) |
| Spurious (Non-Harmonic) | <-65dBc (f ≤ 10MHz) 10MHz) |
| Phase Noise | <-115dBc/Hz @ 10kHz offset (f = 10MHz, 0dBm) |
| Square Wave | Rise / Fall Time |
| Overshoot | ≤3% typical (1Vpp) |
| Duty Cycle | 20.0% to 80.0%, f ≤ 10MHz 40.0% to 60.0%, 10MHz 40MHz |
| Non-Symmetry | 1% of the period + 5ns |
| Jitter (rms) | 2ppm + 500ps typical (f ≤ 5MHz) 500ps (f > 5MHz) |
| Ramp Waveform | Linearity |
| Symmetry | 0% to 100% |
| Pulse | Period |
| Pulse Width | ≥18ns |
| Rising / Falling Edge | ≤11ns |
| Overshoot | <3% typical (1Vpp) |
| Jitter (rms) | 2ppm +500ps typical (f ≤ 5MHz, 1Vpp) 500ps (f > 5MHz, 1Vpp) |
| Arbitrary Waveform | Length |
| Vertical Resolution | 14 bits |
| Sample Rate | 500MSa/s |
| Min. Rise / Fall Time | <5ns typical (1 Vpp) |
| Jitter (rms) | 2ppm + 500ps typical (f ≤ 5MHz, 1Vpp) 500ps (f > 5MHz, 1Vpp) |
| Interpolation Method | Off, Linear |
| Editing Mode | Point Edit, Block Edit |
| Harmonic Generator | Harmonic Order |
| Harmonic Type | Even Harmonic, Odd Harmonic, Order Harmonic, User |
| Harmonic Amplitude | The amplitude of each harmonic can be set independently |
| Harmonic Phase | The phase of each harmonic can be set independently |
| Output Characteristics | Impedance |
| Protection | Short-Circuit Protection - The output is disabled automatically when an overload occurs |
| Amplitude Range | 1mVpp to 10Vpp (f ≤ 20MHz) 1mVpp to 5.0Vpp (f ≤ 60MHz) |
| Amplitude Resolution | 1mVpp or 3 digits |
| Amplitude Accuracy | ±1% of the set value ±2mV, typical |
| Amplitude Flatness | ±0.1dB (f ≤ 20MHz) ±0.2dB (f ≤ 60MHz) |
| Amplitude Units | Vpp, Vrms, dBm |
| Offset Range | ±5V |
| Offset Accuracy | 1% of the set value + 5mV + 0.5% of the amplitude |
| Modulation Characteristics | AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM |
| Burst Characteristics | Carrier Waveforms |
| Carrier Frequency | 2mHz to 60MHz |
| Burst Count | 1 to 1,000,000 or infinite |
| Start / Stop Phase | 0° to 360° |
| Internal Period | 2μs to 500s |
| Gated Source | External Trigger |
| Trigger Source | Internal, External or Manual |
| Trigger Delay | 0ns to 85s |
| Frequency Counter | Function |
| Frequency Resolution | 7 digits / second |
| Frequency Range | 1μHz to 200MHz |
- Power Cord
- USB Cable
- BNC Cable (1 meter)
- Quick Guide (Hard Copy)
- NIST calibration certificate for the DG4062
