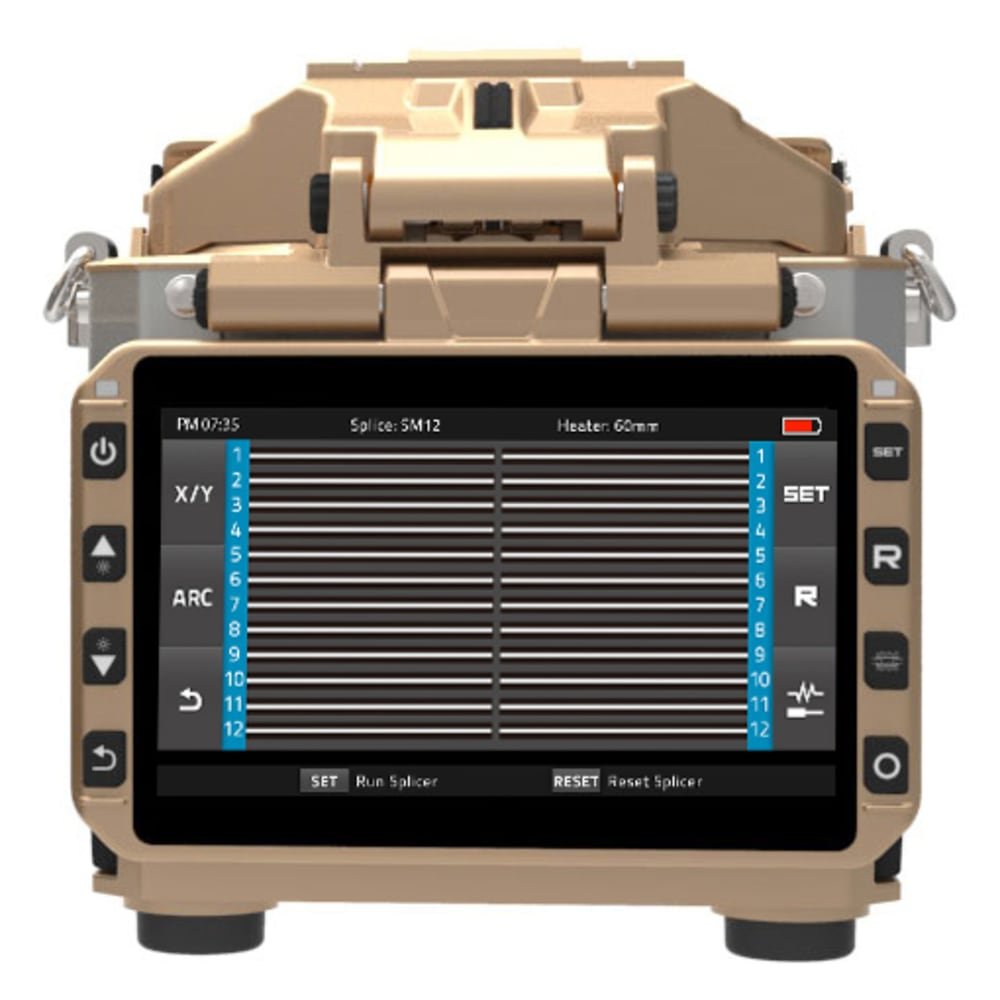

Fiberfox Mini12R-FT3X Mini12R Kit with 3-Pack FastTrack Calibration Service
$8,125.00
In Stock
The Fiberfox Mini12R-FT3X multi-fiber fusion splicer package eliminates operational maintenance bottlenecks by pairing a rugged ribbon-welding machine with a premium 3-pack FastTrack calibration coverage service certificate. This 1.75 kg lightweight field tool utilizes an automated tracking algorithm to fuse 12-fiber ribbons in 15 seconds, displaying real-time metrics on a tempered-glass LCD touchscreen.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Fiberfox Mini12R-FT3X Mini12R Kit with 3-Pack FastTrack Calibration Service Specs
| Applicable Fiber | SMF(G.652/657), MM(G.651), DSF(G.653), NZDS(G.655) |
| Fiber Count | Single to 12 Ribbon Fiber |
| Cladding dia./Sheath dia. | Single:125 / 160 to 3mm by Fiber Holder System Ribbon:125 / Ribbon Fiber Thickness 0.25 to 0.4mm |
| Average Slice Loss | 0.03bB(SM), 0.02db(MM), 0.08dB(DS) and 0.08dB(NZDS) Measured by cut – back method relevant ITU-T and IEC standards |
| Splice Mode/Heating Mode | 100 Splice Modes / 32 Heating Modes |
| Splice Time/Heating Time | 15 Sec / 20 Sec |
| Splice Result Data save | up to 2000 Splices |
| Viewing Method/Magnification | 2 Axis CMOS Camera with 4.3″ Color LCD / 33X and 60X Magnification |
| Applicable Protection Sleeve | 60mm, 40mm (2.36in, 1.57in) |
| No. of Splice/Heating per Battery | 120 cycles with LBT-50 |
| Electrode Life | 1500 Splices |
| LCD Screen | 4.3″ Hi-Def Touch Screen w/ Temper proof glass |
| Optical System | Mirror |
| Weight | 2.77 lbs (without battery) |
| Size | 4.8 x 4.88 x 5.4 (in) |
| Operating Environment | Elevation 0-5,000 meters, 14~140˚F, 0~95% relative humidity |
| Storage Condition | Temperature -40 to 176˚F, 0~95% relative humidity, battery -4~86˚F |
| Terminal | USB 2.0 (Mini-B Type) for PC |
| Pull Test | 1.96~2.25N (standard) 4.4N (Optional) |
- MINI 12R Splicer
- Precision Cleaver with Auto Bin
- Cleaver Soft Case
- Two Battery Packs
- Cooling Tray
- Fiber Holders (3pr-1f,6f,12f)
- Shoulder Strap
- Thermal Stripper
- Manual Stripper
- Universal SOC Holder (2)
- SOC Heater Block
- USB to Mini HDMI Cable
- Power cord / AC Adapter
- USB Charger
- Phillips Screwdriver
- FiberFox Splice Sleeves
- Spare Electrodes (pair)
- Sweeper Brush
- Scrubber Brush
- Facial Brush
- Yellow Hard Case
- Soft Cover User Manual
- Operation Manual CD
- 3 Year Warranty
