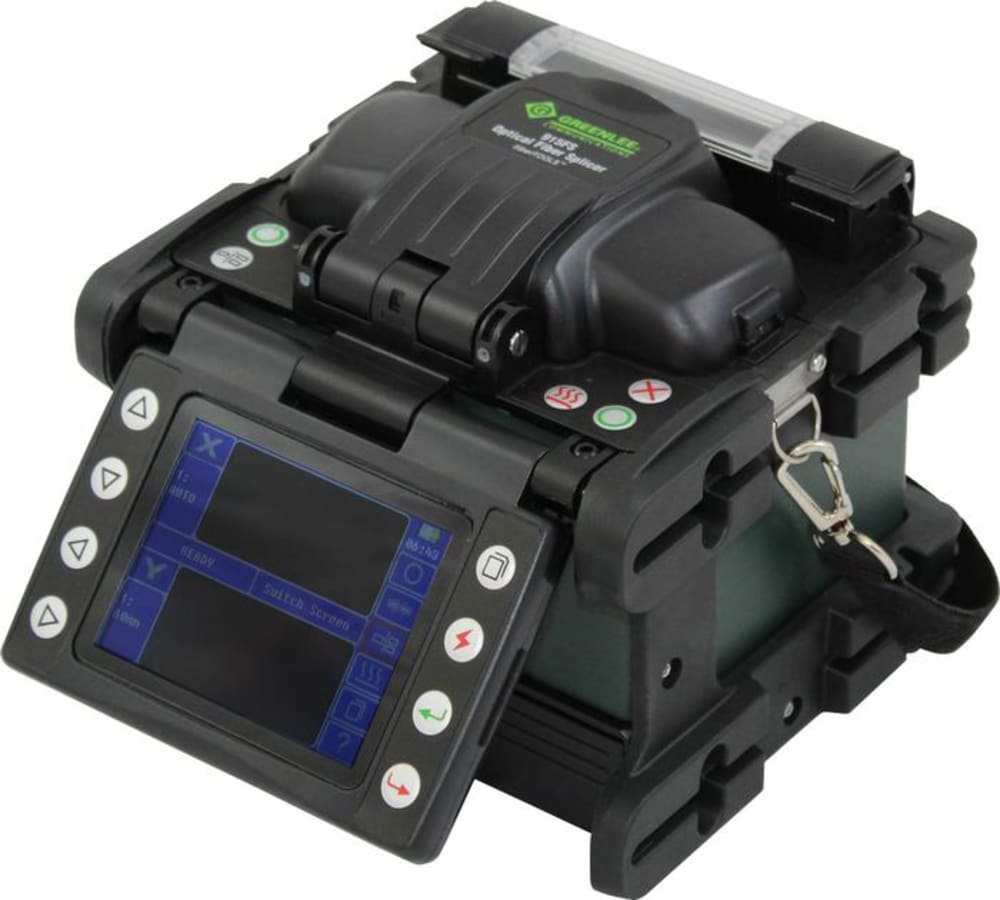

Tempo 915FS – Optical Fusion Splicer
$2,474.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Tempo 915FS - Optical Fusion Splicer Specs
| Applicable Fibers | MMF (ITU-T G.651), SMF (ITU-T G.652), DSF (ITU-T G.653), NZDSF (ITU-T G.655), BIF (ITU-T G.657), EDF |
| Fiber Cleaved Length | 10 mm |
| Cladding Diameter | 80-150 μm |
| Coating Diameter | 100-1000 μm |
| Fiber Count | Single |
| Fiber Aligning Method | Active Clad Alignment |
| Return Loss | ≥60 dB |
| Actual Average Splice Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS, LEAF, and BIF)* |
| Splicing Mode | 60 preset/user-definable modes |
| Splicing Time | <9 seconds in standard SM, 12 seconds in AUTO modes |
| Arc Calibration Mode | Automatic and Manual |
| Boot Time | 5 seconds |
| Protection Sleeve Length | 60 mm, 40 mm, and micro sleeves |
| Storage of Splice Results | 5000 results |
| Tension Test | 2 N |
| Fiber Display Magnification | 200X |
| Tube Heating Mode | 20 preset and user definable modes; adjustable 0–240 seconds |
| Attenuator Mode | 0.1 to 15 dB |
| Electrode Life | 5000 splices |
| Splices per Battery Charge | 240 |
| Tube Heating Time | 28 seconds typical (24s to 36s) |
| Splicing/Heating Times | 150 cycles (splice/tube heat) typical |
| Display | 3.5 inch color turn-over LCD |
| Connectivity | USB 2.0 |
| Ingress Protection | IP5X (Dust); IPX2 (Water) |
| Operating Condition | 0-5000 m (0-16,400 ft) above sea level; 0 to 95% RH; -25 to 50 °C (-13 to 122 °F): Maximum wind velocity of 15 m/s |
| Storage Condition | -30 to 70 °C (-22 to 158 °F); 0 to 95% RH |
| Power Supply | North America AC adapter (100-240 VAC); Li battery (4400 mAh) |
| Weight | 1.5 kg (3.3 lb) including battery 1.2 kg (2.6 lb) without battery |
| Dimensions (HxWxT) | 125 x 125 x 135 mm (4.9 x 4.9 x 5.3 in) |
| Splice-on Connector | SC, LC, FC, and ST |
- 915FS fusion splicer
- Yellow carrying case
- Tweezers
- Extra set of electrodes
- USB cable
- 250um adapters (pair)
- 900um adapters (pair)
- SC/LC SOC Adapter
- Splice on Connector oven insert
- Allen key
- Power supply
- Line cord
- Carrying strap
- Cooling tray
- Battery
- Electrode Cleaner
