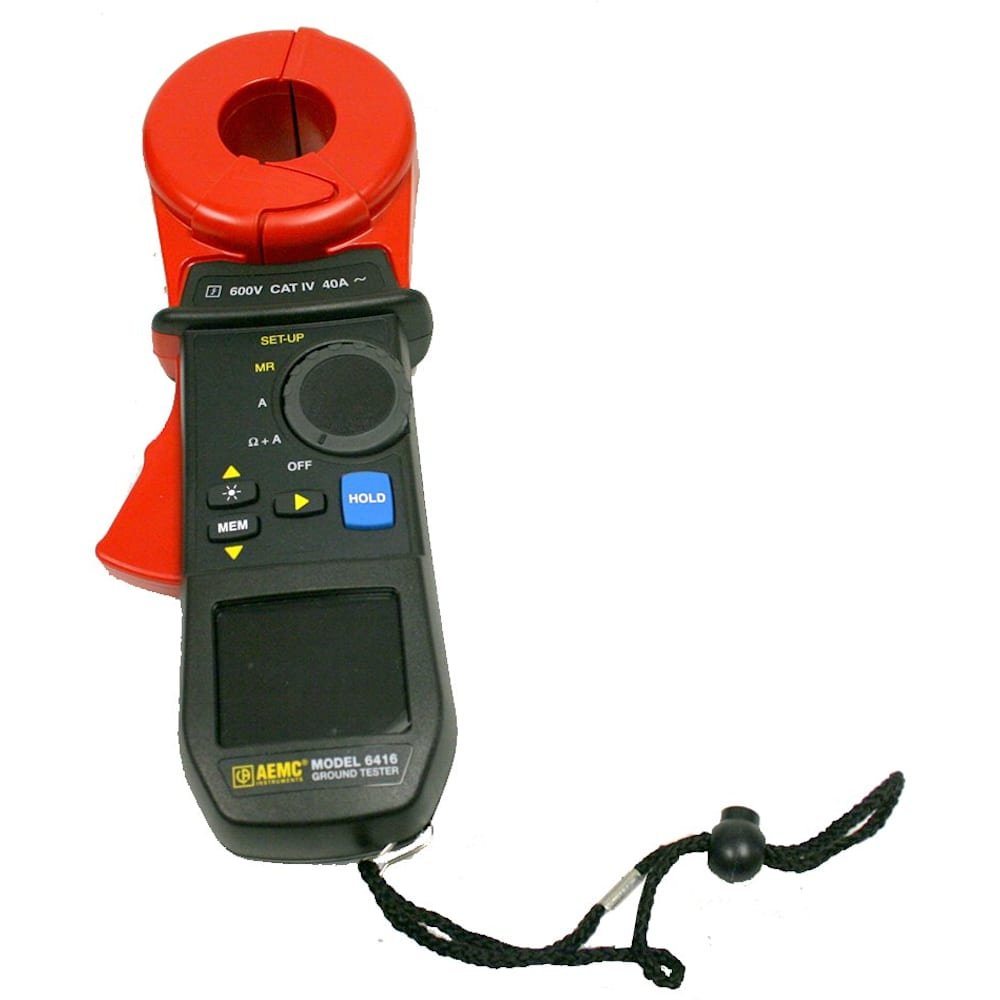

AEMC 6416 – Ground Resistance Tester
$1,099.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
AEMC 6416 - Ground Resistance Tester Specs
| Ground Resistance Auto-Ranging 0.01 to 1500Ω | Measurement Range |
| 0.010 to 0.099Ω | 0.001Ω |
| 0.10 to 0.99Ω | 0.01Ω |
| 1.0 to 49.9Ω | 0.1Ω |
| 50.0 to 99.5Ω | 0.5Ω |
| 100 to 199Ω | 1OΩ |
| 200 to 395Ω | 5Ω |
| 400 to 590Ω | 10Ω |
| 600 to 1150Ω | 50Ω |
| 1200 to 1500Ω | 50Ω |
| Current Measurement Auto-Ranging 0.2mA to 40A | 0.200 to 0.999mA |
| 1.000 to 2.990mA 3.00 to 9.99mA | 10µA |
| 10.00 to 29.90mA 30.0 to 99.9mA | 100µA |
| 100.0 to 299.0mA 0.300 to 0.990A | 1mA |
| 1.000 to 2.990A 3.00 to 39.99A | 10mA |
| Resistance Measurement Frequency | 50, 60, 128 or 2083Hz (user selectable) |
| Current Measurement Frequency | 47 to 800Hz |
| Power Source | 4x1.5V LR6 (AA) Alkaline batteries or 4 NiMH batteries; Battery life: 12 hours, or 14,400 30-second measurements approx |
| Data Storage | Model 6416: 300 measurements; Model 6417: 2000 measurements |
| Dimensions | 2.16 x 3.74 x 10.31” (55 x 9 x 262mm) |
| Weight | 2.06 lbs (935g) approx. with batteries |
| Jaw Opening | 1.38” (35mm) max |
| Display | Multi-function, bright yellow organic display (OLED) |
| Operating Temperature | -4° to 131°F (-20° to 55°C) |
| Operating Humidity | 10% to 90% RH |
| Safety Rating | EN 61010-1 (Ed. 2 of 2001); 600V CAT IV |
- Users Manual
- Hard Carrying Case
- (4) 1.5V AA batteries
Be the first to review “AEMC 6416 – Ground Resistance Tester”
Reviews
There are no reviews yet.
