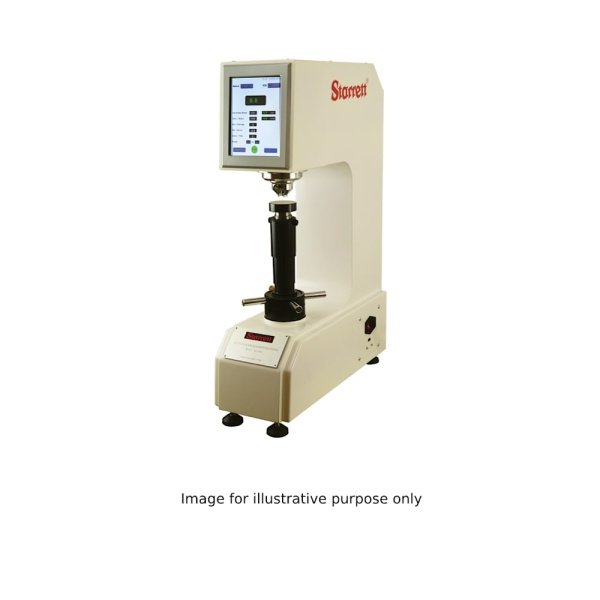

Phase II+ 900-415 – Rockwell Hardness Tester with Load Cell and Touch Screen
$4,900.00
In Stock
Advanced aerospace manufacturing quality control scans and high-load device evaluation checks reach absolute stability when using the Phase II+ 900-415 closed-loop tester. This rockwell hardness tester with load cell and touch screen manages regular industrial testing metrics up to 150 kgf. It incorporates an automated indentation tracking engine to eliminate manual dial reading errors cleanly.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Phase II+ 900-415 - Rockwell Hardness Tester with Load Cell and Touch Screen Specs
| Minor Load | 10 Kgf |
| Major Load | 60 Kgf, 100 Kgf, 150 KGF |
| Test Force Application | Load Cell Closed Loop |
| Test Force Control | Motorized |
| Results Display | Hi Def LCD Digital Readout |
| Resolution | 0.01HR |
| Vertical Capacity | 8.0" |
| Throat Depth | 7.8" |
| Height | 22" |
| Width | 31" |
| Weight | 175 lbs |
| Test resolution | 0.01HR Rockwell unit |
| Operation temperature | 50° - 95°F (10ᵒC～35ᵒC) |
| Ambient environment | clean, no vibration, no strong magnetic field, and no corrosive medium |
| Power supply | single phase, AC, 110-220 with manual change, 50～60Hz, 4A |
- C-scale Diamond Indenter
- 1/16" Ball Indenter
- (3) HRC test Blocks
- (1) HRB Test Block
- (1) HRA Test Block
- Test Table 5.87" (150mm)
- Flat Anvil 2.5" (63mm)
- Std. V- Anvil
- Dust Cover
- Accessory Case
