Instek GPT-9602 AC 100VA AC/DC Withstanding Voltage Tester
Instek GPT-9602 AC 100VA AC/DC Withstanding Voltage Tester - Image 2
Instek GPT-9602 AC 100VA AC/DC Withstanding Voltage Tester - Image 3
Instek GPT-9602 AC 100VA AC/DC Withstanding Voltage Tester - Image 4

Instek GPT-9602 AC 100VA AC/DC Withstanding Voltage Tester

$682.00
In Stock
In Stock
Add to wishlist
Commercial Pricing
Request for Quotations for Bulk Orders
SKU: Instek-GPT-9602
Category:
Brand:

Instek GPT-9602 AC 100VA AC/DC Withstanding Voltage Tester Specs

ModelGPT-9601
Output Capacity100VA
AC Withstanding (ACW)5kVac   20mA
DC Withstanding (DCW)-
Insulation Resistance (IR)-
Ground Bond (GB)-
ARC DetectionYES
Ramp-Up Function0.1s Fixed
Memory Storage for Setting1
AUTO Mode-
Safety InterlockYES
Remote TerminalYES
Signal I/OYES
USB/RS232C Interface-
GPIB Interface-
Display, LCD240 x 48
CE ComplianceYES
Output-Voltage Range0.10kV~ 5.00kV
Output-Voltage Resolution10V
Maximum Rated Load100 VA (5kV/20mA)
Maximum Rated Current20mA (0.5kV
Output-Voltage WaveformSine wave
Output-Voltage Frequency50 Hz / 60 Hz selectable
Voltage Regulation± (1.5% + 2 counts) [full load ->no load]
Voltmeter Accuracy± (1.5% of reading + 2 counts)
Current Measurement Range [1]0.01mA~20.0mA
Current Best Resolution0.01mA(0.01mA~9.99mA)   0.1mA(10.0mA~20.0mA)
Current Measurement Accuracy± (2.0% of rdg + 5 counts) when HI SET<1.00mA   ± (2.0% of rdg + 3 counts) when HI SET=1.00mA
Window Comparator MethodYes
ARC DetectYes
RAMP (Ramp-Up Time)0.1s Fixed
TIMER (Test Time)OFF, 1s~180s
GNDON
Upper CurrentPause
AC15mA≦I≦20mA
0.01mA≦I<15mANot necessary
Output-Voltage Range0.10kV~ 6.00kV
Output-Voltage Resolution10V
Maximum Rated Load25W (5kV/5mA)
Maximum Rated Current6mA (0.5kV
Voltage Regulation± (1.5% + 2 counts) [full load ->no load]
Voltmeter Accuracy± (1.5% of reading + 2 counts)
Current Measurement Range [1]0.01mA~6.00mA
Current Best Resolution0.01mA(0.01mA~6.00mA)
Current Measurement Accuracy± (2.0% of rdg + 5 counts) when HI SET<1.00mA   ± (2.0% of rdg + 3 counts) when HI SET=1.00mA
Window Comparator MethodYes
ARC DetectYes
RAMP (Ramp-Up Time)0.1s Fixed
TIMER (Test Time)OFF, 1s~180s
GNDON
Upper CurrentPause
DC0.01mA≦I≦6.00mA
Insulation Resistance[for GPT-9612/9603]
Output Voltage50V/100V/250V/500V/1000V
Output-Voltage Accuracy± (3.0% of setting + 1 count) with no load
Voltage Regulation± (1.5% + 2 counts) [full load ->no load]
Voltmeter Accuracy± (1.5% of reading + 2 counts)
Resistance Measurement Range1MO~ 2000MO
Test VoltageMeasure Range
50V / 100V / 250V1~50MΩ   51~2000MΩ
500V / 1000V1~500MΩ   501~2000MΩ ± (5% of reading + 2MΩ)
Output Impedance600kΩ
Window Comparator MethodYes
RAMP (Ramp-Up Time)0.1s Fixed
TIMER (Test Time)1s~180s
GNDOFF
NoteThe specifications apply when the GPT-9600 series are powered on for at least 30 minutes at 15°C~35°C.
Display240 x 48 Ice Blue dot matrix LCD
AUTO Mode*AC-IR / IR-AC / DC-IR / IR-DC
InterfaceRemote, Signal I/O
Power SourceAC 100-120 V / 220-240 V ±10%
Power Line Frequency50/60Hz
Power ConsumptionMax 400VA

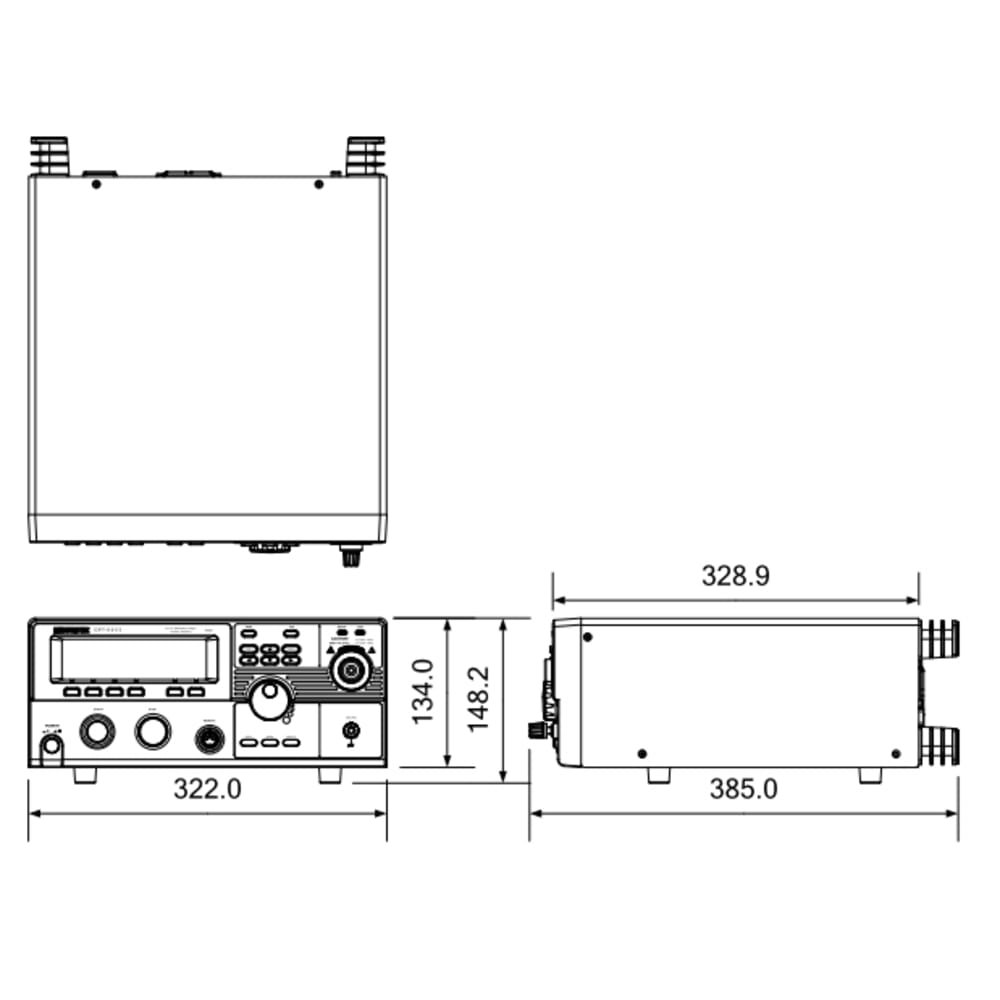

Dimensions322(W) x 148(H) x 385(D) mm
WeightApprox. 9kg max.
NoteTo operate over the specific temperature range may cause damage to the circuit. And, do not use in a place where strong magnetic or electric field exists.
Warranty Environment15°C to 35°C, Humidity 70% (no condensation)
Operation Environment0°C to 40°C, Humidity 70% (no condensation)
Storage Environment-10°C to 70°C, Humidity 85% (no condensation)
Installation LocationIndoors at an amplitude of up to 2000m

  • Quick Start Guide x 1
    •
  • CD x1(completed user manual)
    •
  • Power cord x 1
    •
  • Interlock key x 1
    •
  • Remote terminal male plug x 1
    •
  • Test lead GHT-114 x 1
