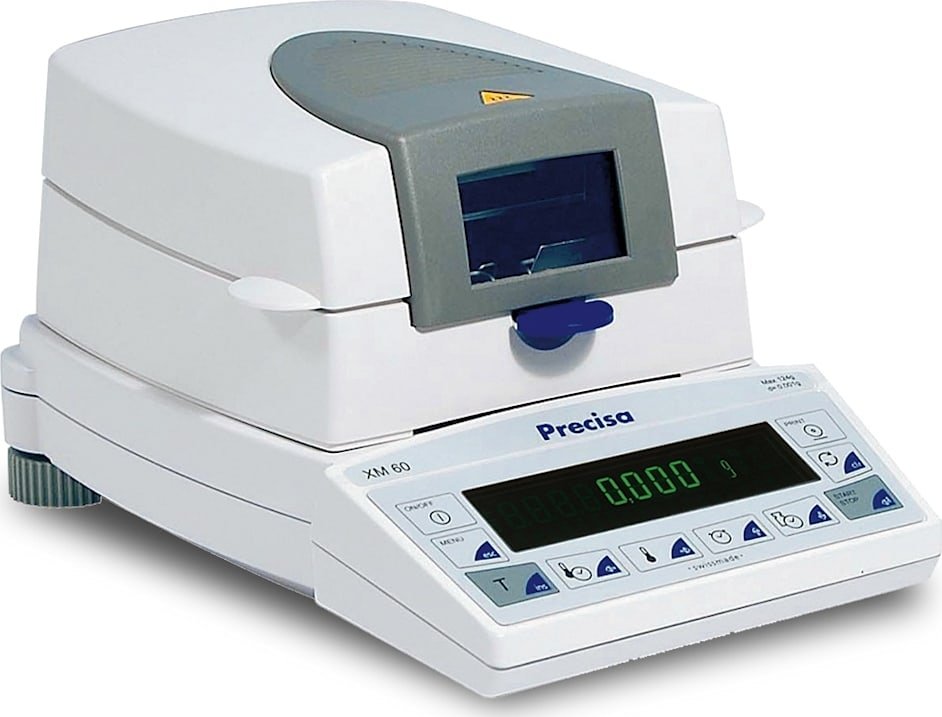

Intelligent Weighing Technology XM 60-HR Laboratory Balance
$3,813.00
In Stock
The Intelligent Weighing Technology XM 60-HR high-performance moisture analyzer delivers exceptional metrology accuracy during low-volume laboratory or industrial material density validation checks. This specialized precision instrument manages a 124 g capacity with an ultra-sharp 0.0001 g (0.1 mg) readability window, operating in an extreme temperature range up to 230°C while storing 20 custom method profiles natively.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Intelligent-Weighing-Technology-XM-60-HR Specs
| Weight Calibration | External manual |
| Temperature Calibration | Two point (100/160C) |
| Capacity | 124 g |
| Readability - g | 0.1 mg (0.0001 g) |
| Readability - % moisture | 0.001% |
| Recommended Minimum Sample | 5 g |
| Repeatability | 0.1 mg |
| Linearity | 0.2 mg |
| Sensitivity Drift | (10…30°C) 1.5 ppm / °C |
| Stabilization Time | < 3 seconds |
| Temperature Range | 30-230°C, 1° increments |
| Heat Source | Halogen, Infrared, Metal (glass-free available) |
| Normal Operating Environment | 50°F to 85°F (10°C to 30°C) at 85% RH non-condensing |
| Ultimate Operating Environment | 0°C to 40°C at 70% RH non-condensing for SCS equipped units |
| Weighing Units | % moisture (% weight loss), % solid (% residue), g/kg, residual, Loss |
| Available Languages | English, French, German |
| Tare Range | 100% Subtractive |
| Power Source | 120VAC 50/60Hz 6.5A), 450 Watt |
| Construction | Die cast aluminum |
| Display | Vacuum Fluorescent Display |
| Pan Size | 3.54 in / 90 mm diam |
| Sample Pan Maximum Volume | 45 mL nominal full at level - in 3.8 x 3.54 x 0.3 in / 96 mm x 90 mm x 7mm pan |
| Overall Dimensions (W x D x H) | 8.3 x 13.4 x 7 in 210 x 340 x 178 mm |
| Connectivity | Standard: RS-232 Optional: USB to RS-232 Adapter |
| Net Weight | 13 lb / 5.9 kg |
| Shipping Weight | 16.1 lb / 7.3 kg |
