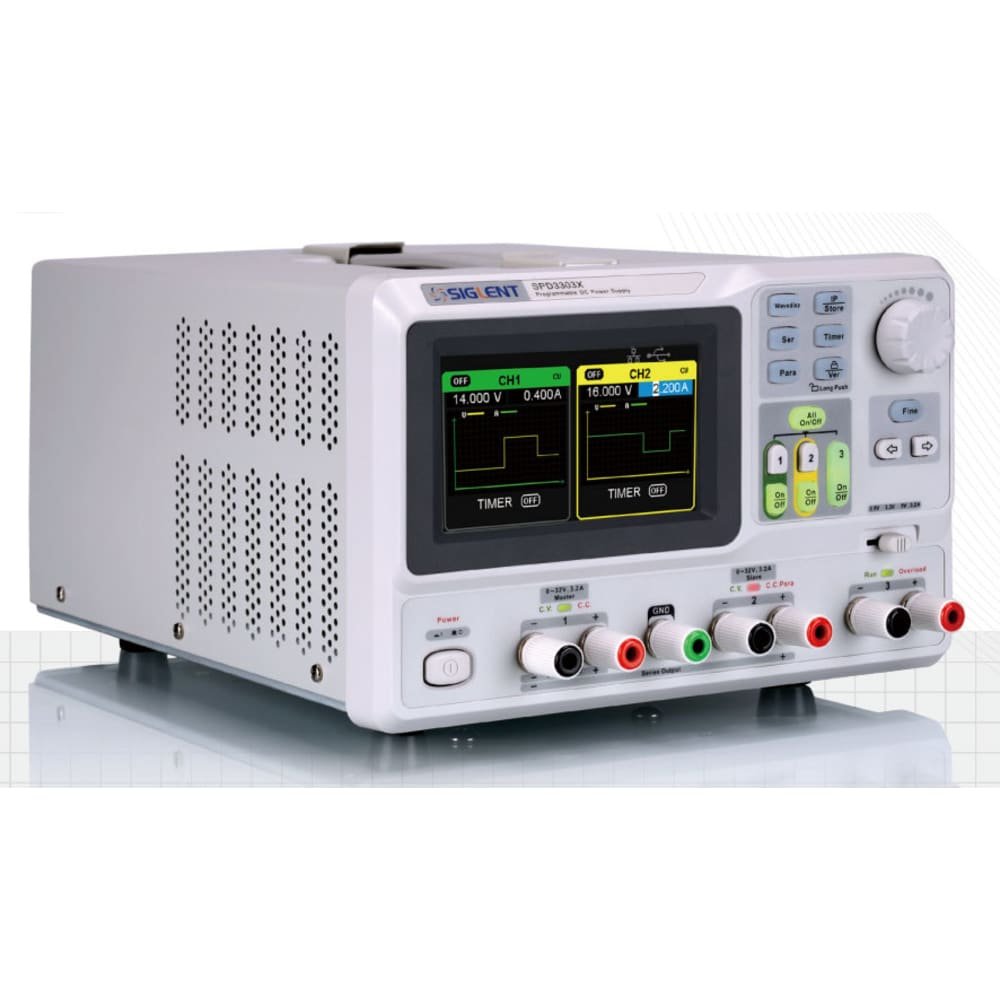

Siglent SPD3303X-E – Programmable Linear DC Power Supply (3 Channels, 220W)
$298.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Siglent SPD3303X-E - Programmable Linear DC Power Supply (3 Channels, 220W) Specs
| Channel: | CH1 output voltage：0 ～ 32V, output current：0 ～ 3.2A CH2 output voltage：0 ～ 32V, output current：0 ～ 3.2A CH3 output voltage：2.5/3.3/5.0V, output current ：3.2A |
| Display: | 4.3 inch true color TFT-LCD 4 digits voltage 3 digits current |
| Resolution: | 10mV/10mA |
| Program Accuracy: | Voltage ± (0.5% of reading+2digits) Current ± (0.5% of reading+2digits) |
| Readback Accuracy: | Voltage ± (0.5% of reading+2digits) Current ± (0.5% of reading+2digits) |
| Line Regulation: | ≤0.01%+3mV |
| Load Regulation: | ≤0.01%+3mV |
| Ripple&Noise: | ≤1mVrms(5Hz ～ 1MHz) |
| Recovery Time: | ＜ 50μs(50% load change, minimum load 0.5A) |
| Line Regulation: | ≤0.2%+3mA |
| Load Regulation: | ≤0.2%+3mA |
| Ripple&Noise: | ≤3mArms |
| Line Regulation: | ≤0.01%+3mV |
| Load Regulation: | ≤0.01%+3mV |
| Line Regulation: | ≤0.01%+5mV |
| Load Regulation: | ≤300mV |
| Output Voltage: | (2.5/3.3/5V) ±8% |
| Line Regulation: | ≤0.01%+3mV |
| Load Regulation: | ≤0.01%+3mV |
| Ripple&Noise: | ≤1mVrms(5Hz ～ 1MHz) |
| Locking Key: | Yes |
| Memory Save/Recall: | 5 Sets |
| Max Output Power: | 220W |

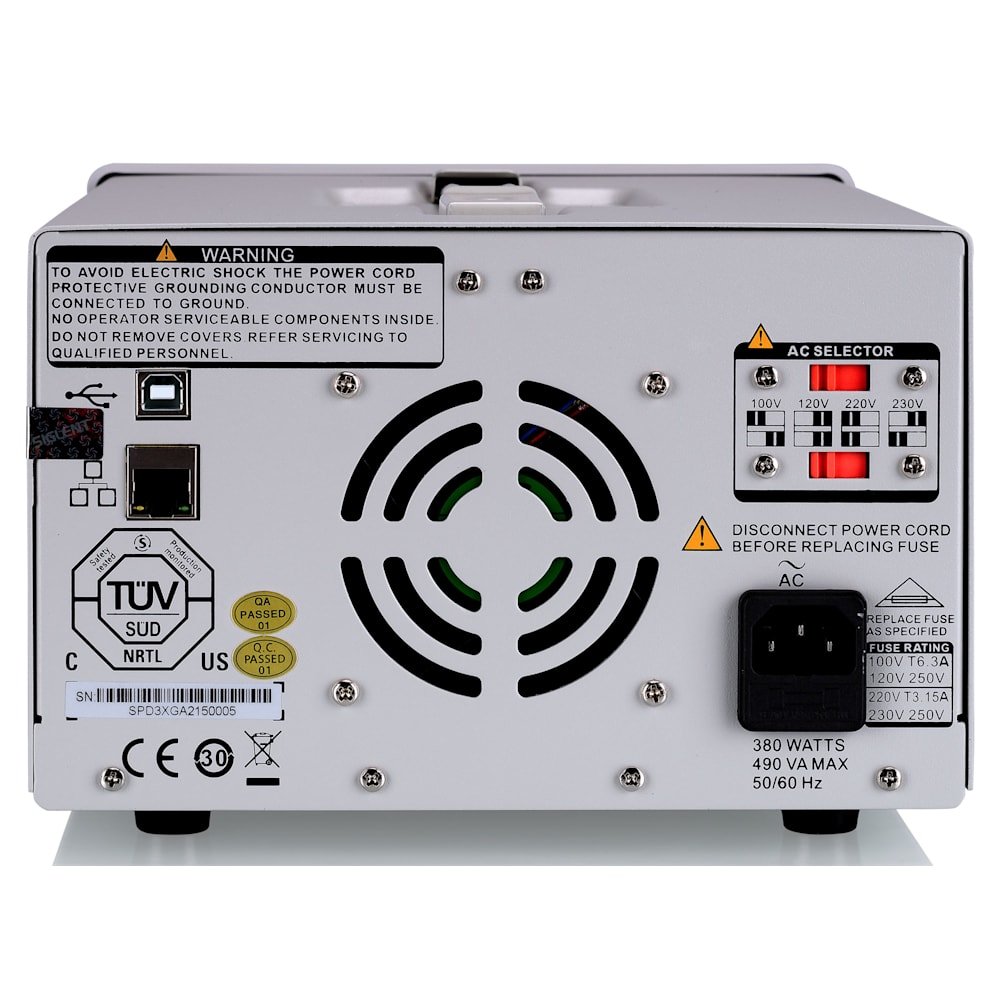

| Power Source: | AC 100V/120V/220V/230V ±10% 50/60Hz |
| Standard Configuration Interface: | USB Device, LAN |
| Insulation: | Case to Terminal ≥20MΩ (DC 500V) Case to AC line ≥30MΩ (DC 500V) |
| Elevation: | ≤2000m |
| Environment Temperature: | 0~40°C |
| Relative Humidity: | ≤80% |
| Installation Level: | II |
| Pollution Level: | 2 |
| Storage Environment: | Environment Temperature: -10~70°C Relative Humidity≤70% |
| Dimension: | 225 (W) x 143 (H) x 278 (D) mm |
| Weight: | 8.0kg |
- USB cable
- Quick start guide
- Product certificate
- Power cord
- Resources CD (product documentation and software)
- Output test cord - 2 sets
- NMI traceable calibration certificate (NIST equivalent)
