Binder World FD023UL-120V – Drying/Heating Chamber with Forced Convection, 20 L, 120 V 1 ph 60 Hz
$1,788.00
In Stock
A quiet mechanical air circulation engine and an economical mechanical convection design parameter dictate the operational framework of this hardware. The Binder World FD023UL-120V space-saving heating wrapper manages process liquids safely across narrow benchtop workspaces. Labeled as a drying/heating chamber with forced convection, 20 l, 120 v 1 ph 60 hz apparatus, this 120V unit drives small-scale analytical trials cleanly without unexpected thermal variations.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Binder World FD023UL-120V - Drying/Heating Chamber with Forced Convection, 20 L, 120 V 1 ph 60 Hz Specs
| Option model | Standard |
| Order number | 9010-0196 |
| Heating-up time to 150 °C [min] | 25 |
| Recovery time after 30 seconds door open at 150 °C [min] | 6 |
| Temperature fluctuation at 150 °C [± K] | 0.3 |
| Temperature range +5 °C above ambient temperature to | 300 °C |
| Temperature variation at 150 °C [± K] | 2.5 |
| Air change (approx.) at 150 °C [x/h] | 64 |
| Nominal power [kW] | 0.8 |
| Phase (Nominal voltage) | 1~ |
| Power frequency [Hz] | 60 |
| Rated Voltage [V] | 120 |
| Unit fuse [A] | 12.5 |
| Unit doors | 1 |

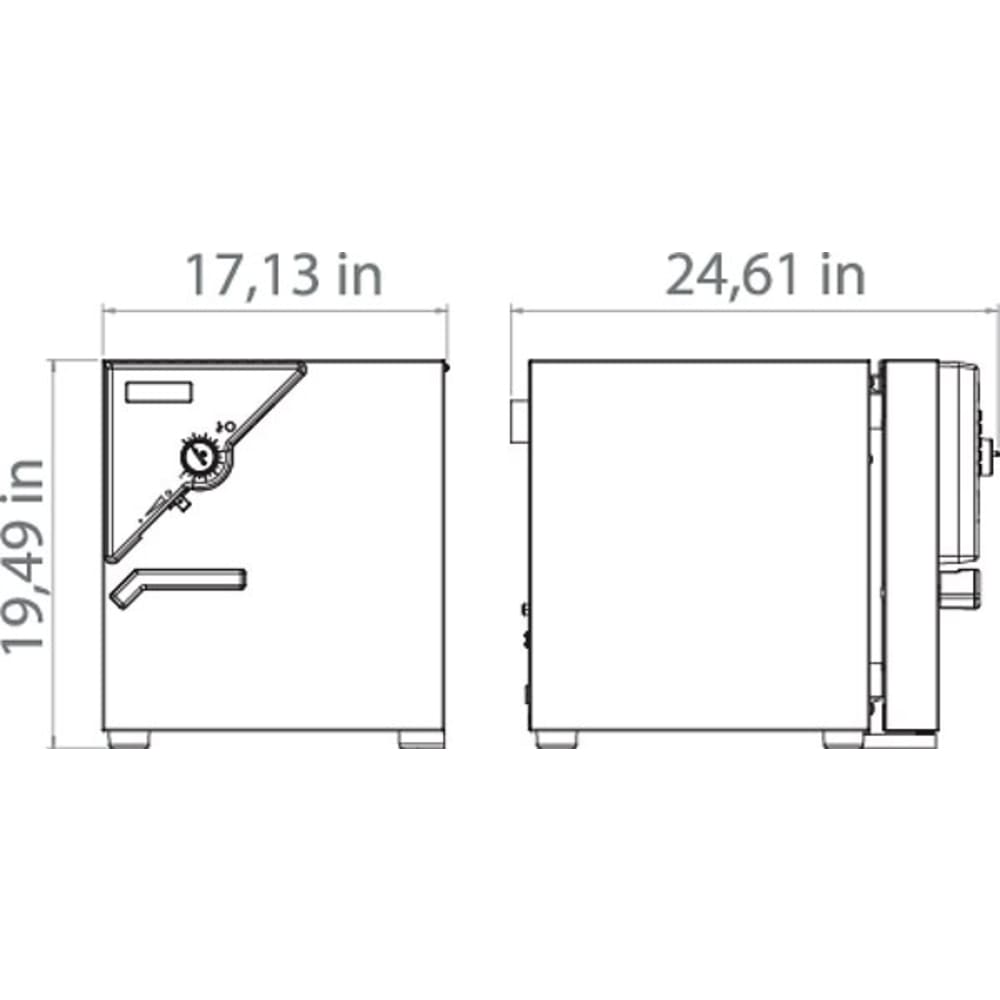

| Depth net [in] | 20.49 |
| Height net [in] | 19.5 |
| Width net [in] | 17.14 |
| Depth [in] | 11.82 |
| Height [in] | 13 |
| Width [in] | 8.75 |
| Interior volume [cu.ft.] | 0.7 |
| Load per rack [lbs] | 26 |
| Net weight of the unit (empty) [lbs] | 60 |
| Permitted load [lbs] | 55 |
| Wall clearance back [in] | 6.3 |
| Wall clearance sidewise [in] | 3.94 |
| Energy consumption at 150 °C [Wh/h] | 300 |
| Number of shelves (std./max.) | 2/4 |
