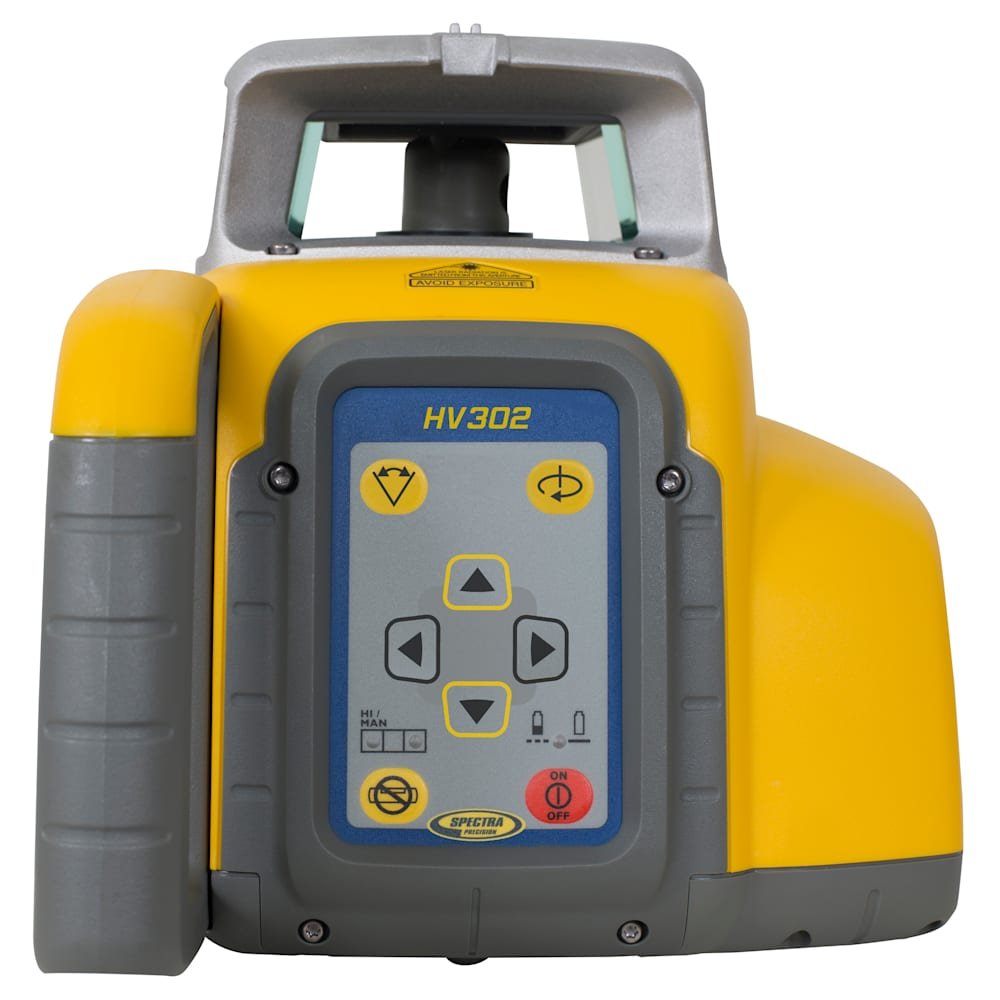

Spectra Precision HV302-7 with HL760 Receiver
$962.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Spectra Precision HV302-7 with HL760 Receiver Specs
| Leveling accuracy | ± 1.5 mm/30 m, 1/16" @ 100 ft, 10 arc seconds |
| Operating diameter | appr. 800 m (2600 feet) |
| Rotation | 0, 10, 80, 200, 600 rpm |
| Pre-selected scan sizes | 5°, 15°, 45°, 90°, 180° and 0 |
| Laser type | red diode laser 600-680 nm |
| Laser class | Class 3A/3R, max. 5 mW |
| Self-leveling range | ± 5° (±9%) |
| Leveling indicators | LED flashes |
| Radio range (HL760) | up to 100 m (330 ft) |
| Power source | 10.000 mAh NiMH battery pack |
| Battery life | 45 hours NiMH; 60 hours alkaline |
| Operating temp. | -20°C to 50°C (-4°F to 122°F) |
| Storage temp. | -20°C to 70°C (-4°F to 158°F) |
| Tripod attachments | 5/8 x 11 horizontally and vertically |
| Dust and waterproof | Yes - IP66 |
| Weight | 3.1 kg (6.8 lbs) |
| Low voltage indication | LED battery indicator |
| Low voltage disconnection | unit shuts off |
| Warranty | 5 Years |
| Digital readout units | mm, cm, ft, in, frac. in |
| Reception height | 127 mm (5 inches) |
| Six On-grade sensitivities | - Ultra Fine 0.5 mm (~1/32 in) - Super Fine 1 mm (~1/16 in) - Fine 2 mm (~1/8 in) - Medium 5 mm (~1/4 in) - Coarse 10 mm (~1/2 in) - Calibration Mode 0.1 mm (~1/64 in) |
| Battery life (2 x AA) | 60+ hours continuous operation |
| Auto shut-off | 30 minutes/24 hours |
| Operating temp. | -20°C to 50°C (-4°F to 122°F) |
| Dust and waterproof | Yes - IP67 |
| Weight | 0.37 kg (13.1 oz) |
| Warranty | 3 Years "No Excuses" |
- Jobsite-tough Carrying Case
