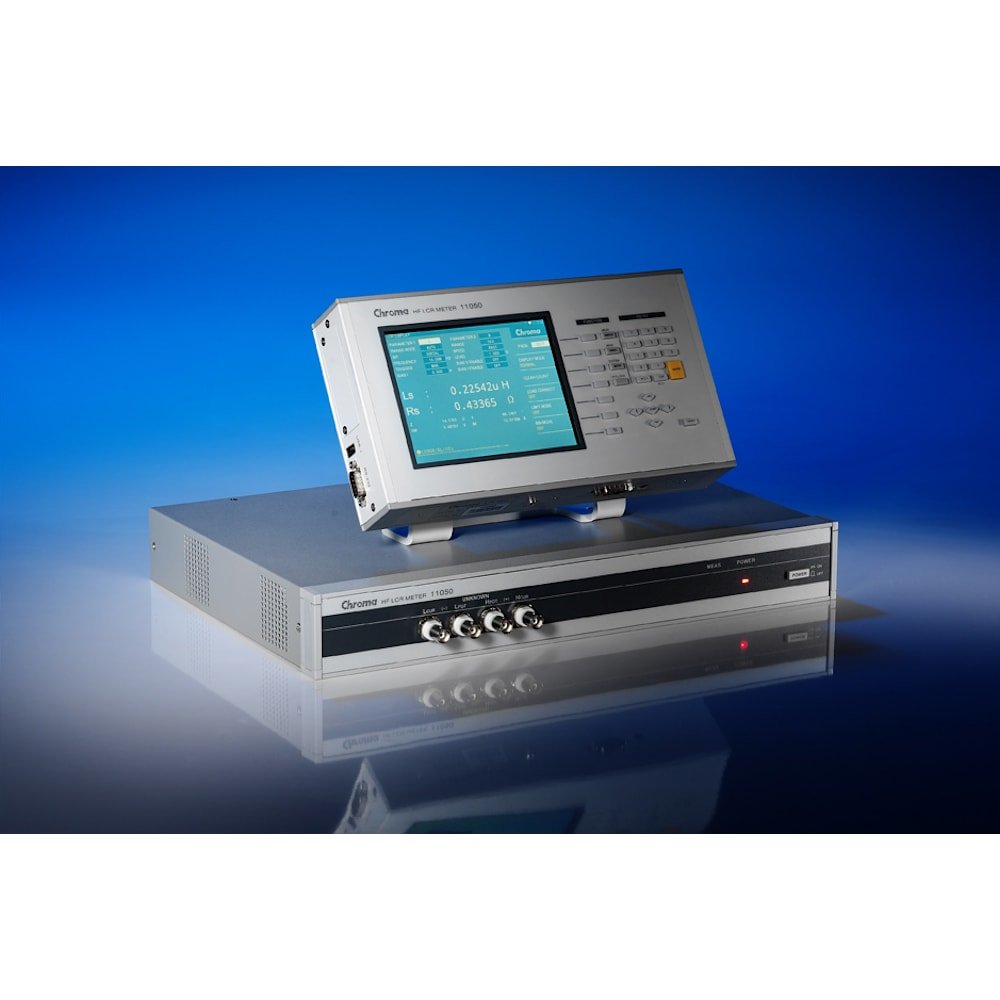

Chroma 11050 – HF LCR Meter – 10MHz
$9,276.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Chroma 11050 - HF LCR Meter - 10MHz Specs
| Model | 11050 |
| Test Parameter | L, C, R, Z, Y, DCR, Q, D,θ |
| Test Frequency | 1kHz ~ 10MHz ± (0.1% + 0.01Hz) |
| Test Level | ≤1MHz: 10mV ~ 5V; ± [(10 + fm)% + 10mV] ; >1MHz: 10mV ~ 1V; ± [(10 + fm)% + 1mV] ; fm: test frequency [MHz] |
| Output Impedance | 100Ω, 25Ω, OFF |
| L | 0.00001uH ~ 99.999MH |
| C | 0.00001pF ~ 999.999F |
| R, Z | 0.01mΩ ~ 9999.99MΩ |
| DCR | 0.01mΩ ~ 999.99MOΩ |
| Q, D | 0.00001 ~ 99999 |
| θ | -90.00° ~ 90.00° |
| Z | ± 0.1% |
| DCR | ± 0.1% |
| θ | ± 0.04° |
| Measurement Speed | Fast : 15ms ; Medium : 150ms ; Slow : 295ms (1kHz) |
| Communication Interface | RS-232C, Handler, USB storage, External bias current control, GPIB (option), LAN (option) |
| Trigger Mode | Internal, Manual, External, Bus |
| Range Switching Mode | Auto, Hold |
| Equivalent Circuit Mode | Series, Parallel |
| Judgment | Compare, Bin-sorting |
| Correction | Open/Short Zeroing, Load Correction |
| Operating Environment | Temperature : 0°C ~ 40°C ; Humidity : 10% ~ 90% |
| Power Consumption | 60VA max. |
| Power Requirement | 100 ~ 240V ±10% , 47Hz ~ 63Hz |
| Dimension (H x W x D) | 230 x 428 x 290 mm / 9.06 x 16.85 x 11.42 inch |
| Weight | Approx. 8 kg / 17.64 lb |
