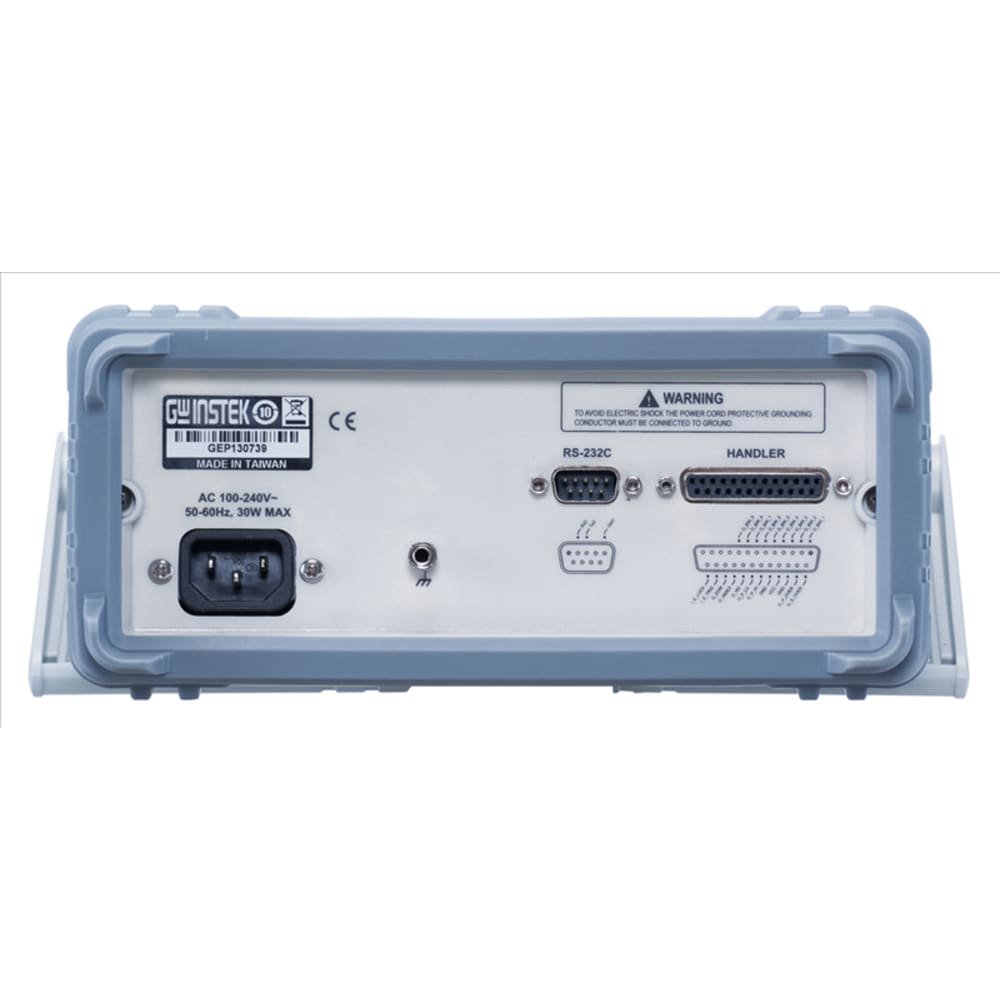

Instek LCR-6002 10Hz ~ 2kHz High Precision LCR Meter
$906.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Instek LCR-6002 10Hz ~ 2kHz High Precision LCR Meter Specs
| Slow / Med | 0.05% |
| Fast | 0.1% |
| Voltage | 10.00mV- 2.00V (±10%) CV :10.00mV- 2.00V(±6%) |
| Current | 100.0uA- 20.00mA (±10%) CC :100.0uA- 20.00mA(±6%) (@2VMax) |
| R, X, |Z| G, B, |Y| L C D Q θd θr DCR λ% | 0.00001O ~ 99.9999MO 0.01nS ~ 999.999S 0.00001uH ~ 9999.99H 0.00001pF ~ 9999.99mF 0.00001 ~ 9.99999 0.00001 ~ 99999.9 -179.999° ~ 179.999° -3.14159 ~ 3.14159 0.00001Ω ~ 99.9999MΩ -99999% ~ 99999% |
| 16 Combinations | Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, Rs-Q, Rp-Q, R-X, Z-θr, Z-θd, Z-D, Z-Q, DCR |
| Monitor parameter (2 selectable) | Z, D, Q, Vac, Iac, λ, λ%, θr, θd, R, X, G, B, Y |
| INT – panel setting | 10 file name |
| INT – measured data | 10000 Data(.csv) |
| USB storage | 10 file name for setting, 9999 file name for data, 999 Log file for LCD screen |
| Auto Level Control (ALC) | ON/OFF |
| Average | 1~256 times |
| Trigger | INT / MAN / EXT / BUS |
| Delay | 0ms~60s |
| Judgment | PASS / FAIL |
| Auto LCZ | ON / OFF |
| Screen Capture | Saving in to USB (Bmp form) |
- Safety Sheet x 1
- Power Cord x 1
- Test Fixture LCR-06Ax 1
- CD x1(User manual / PC software)
