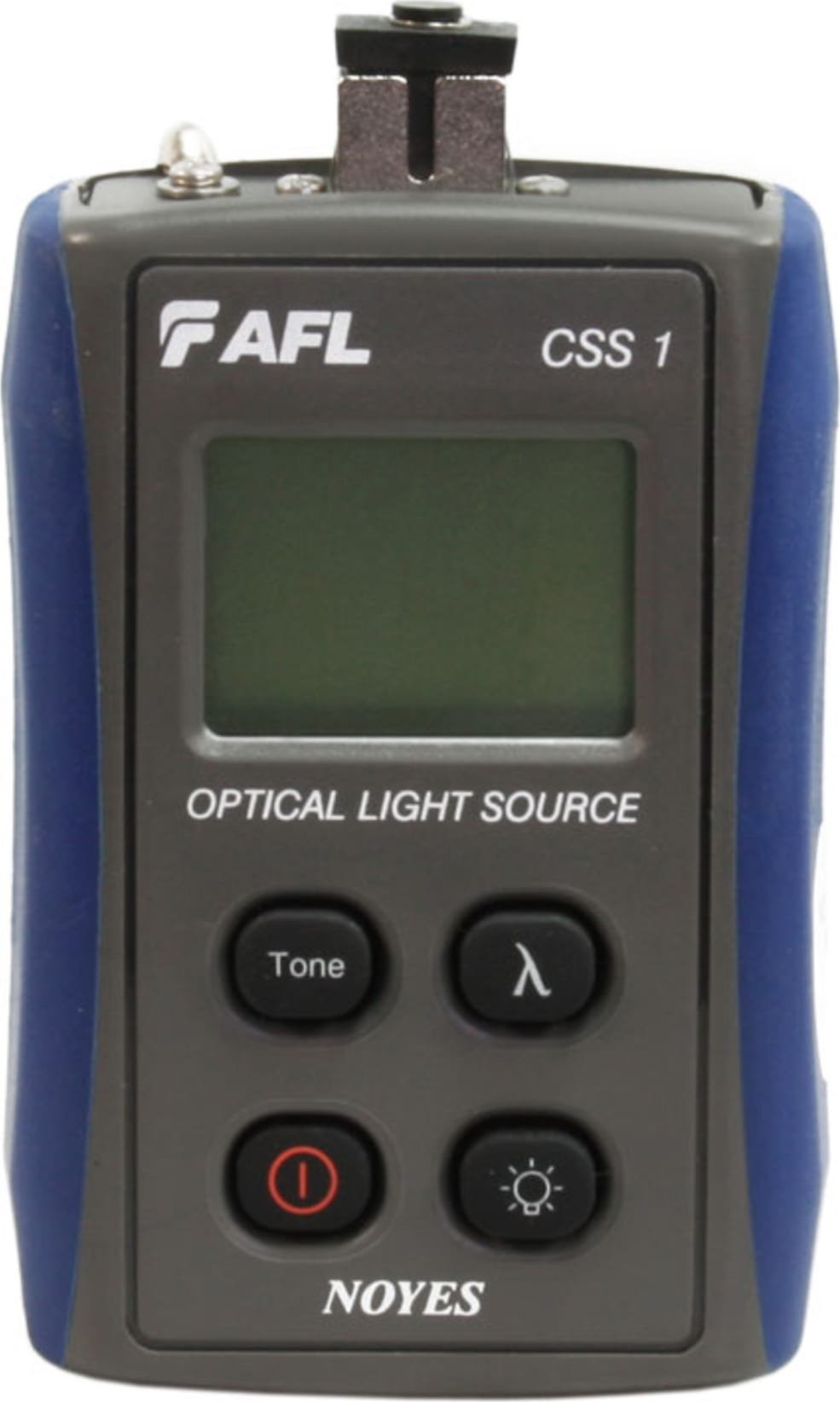

AFL CSS1-MM – Contractor Series LED Light Source (850/1300), Fixed SC Connector
$359.00
In Stock
Demanding enterprise IT contractors and network installation personnel maximize multi-mode link checking processes under strict shift timelines by adopting the robust AFL CSS1-MM Contractor Series LED light source. This specialized 850/1300 nm multi-mode instrument provides an exceptional stabilized optical stream layout to verify local area network backbones securely. It relies on a standardized fixed SC connector port configuration and real-time battery status markers to secure optimal operational accuracy over extended shifts.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
AFL CSS1-MM - Contractor Series LED Light Source (850/1300), Fixed SC Connector Specs
| Model | CSS1-MM (Single-Port) |
| Wavelength | 850 nm ±20 nm |
| Spectral Width (max) | 35 nm |
| Emitter Type. Safety Class | LED, Class I FDA 21 CFR 1040.10 & 1040.11, IEC 60825-1: 2007-03 |
| Output Power | ≥-20.0 dBm into 62.5/125 fiber |
| Output Stability c | ±0.1 dB over 1 hour; ±0.15 dB over 8 hours |
| Tone Output | 2000, 1000, 330, 270 Hz |
| Model | CSS1-MM |
| Output Connector | SC Fixed |
| Power | 2 AA batteries |
| Battery Life | 30 hours (typical) |
| Operating Temperature | -10 °C to 50 °C, 90 % RH (non-condensing) |
| Storage Temperature | -30 °C to 60 °C, 90 % RH (non-condensing) |
| Size (H x W x D) | 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) without boot |
| Weight | 0.29 kg (0.65 lb) without boot |
