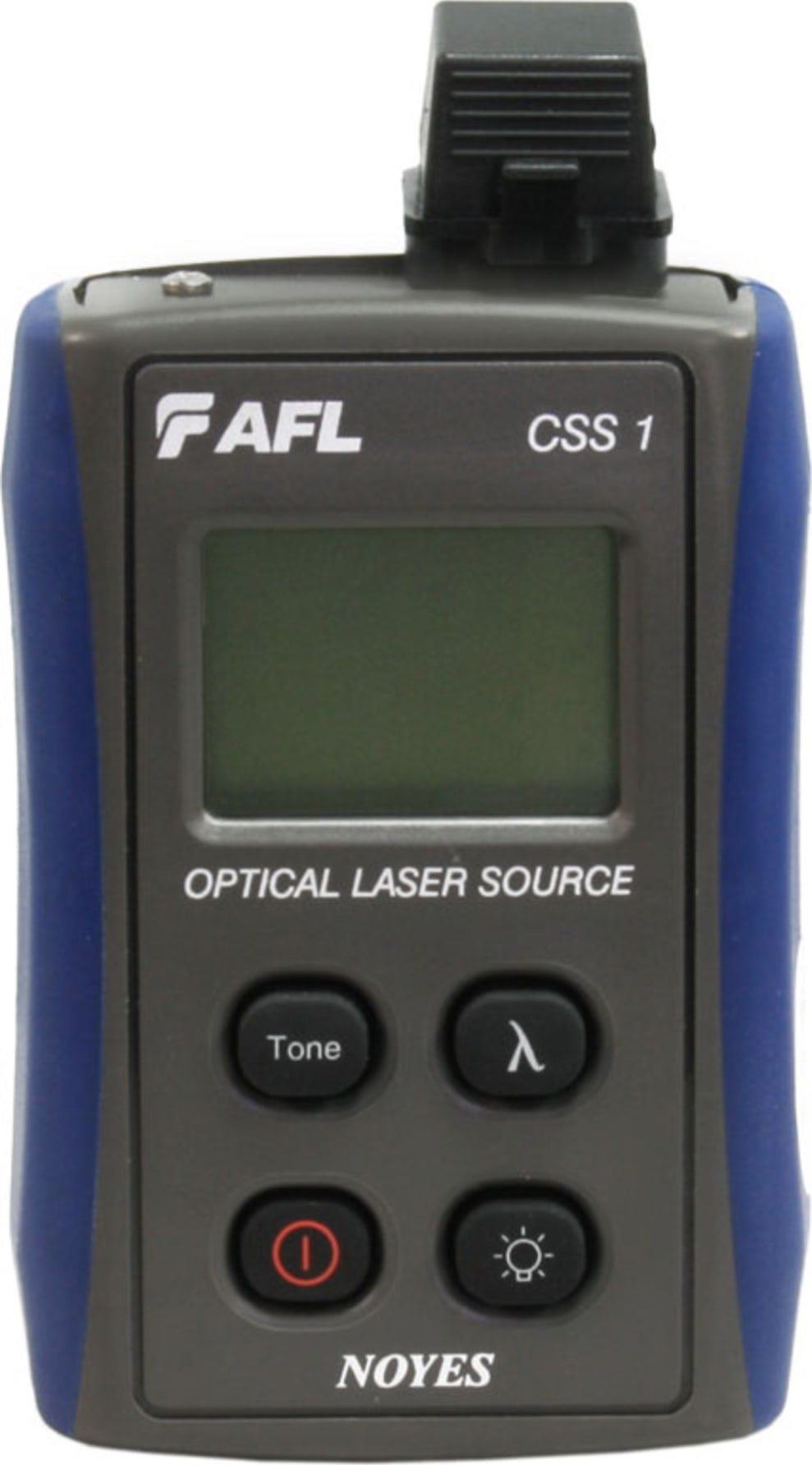

AFL CSS1-SM-SC – Contractor Series Laser Light Source (1310/1550), SC Connector
$614.00
In Stock
Comprehensive optical cable certification accuracy and professional tier-1 data tracking execution are the primary operational frameworks delivered by the highly automated AFL CSS1-SM-SC Contractor Series laser light source. This premium 1310/1550 nm single-mode testing hardware delivers exceptional signal stability with built-in test tone generation to ensure total operator verification accountability. It integrates a native heavy-duty SC connector port, an advanced internal microprocessor, and a bright backlit user interface display window.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
AFL CSS1-SM-SC - Contractor Series Laser Light Source (1310/1550), SC Connector Specs
| Model | CSS1-SM (Single Port) |
| Wavelength | 1310 nm ±20 |
| Spectral Width (max) | 5 nm |
| Emitter Type. Safety Class | Laser. Class I FDA 21 CFR 1040.10 & 1040.11, IEC 60825-1: 2007-03 |
| Output Power | ≥0.0 dBm into 9/125 fiber |
| Output Stability c | ±0.05 dB over 1 hour; ±0.15 dB over 8 hours |
| Tone Output | 2000, 1000, 330, 270 Hz |
| Model | CSS1-SM |
| Output Connector | SC, FC, ST, LC |
| Power | 2 AA batteries |
| Battery Life | 75 hours (typical) |
| Operating Temperature | -10 °C to 50 °C, 90 % RH (non-condensing) |
| Storage Temperature | -30 °C to 60 °C, 90 % RH (non-condensing) |
| Size (H x W x D) | 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) without boot |
| Weight | 0.29 kg (0.65 lb) without boot |
- Light source with connector adapter
- AA batteries
- User guide
- Carrying case
- 50 and 62.5 micron mandrels
