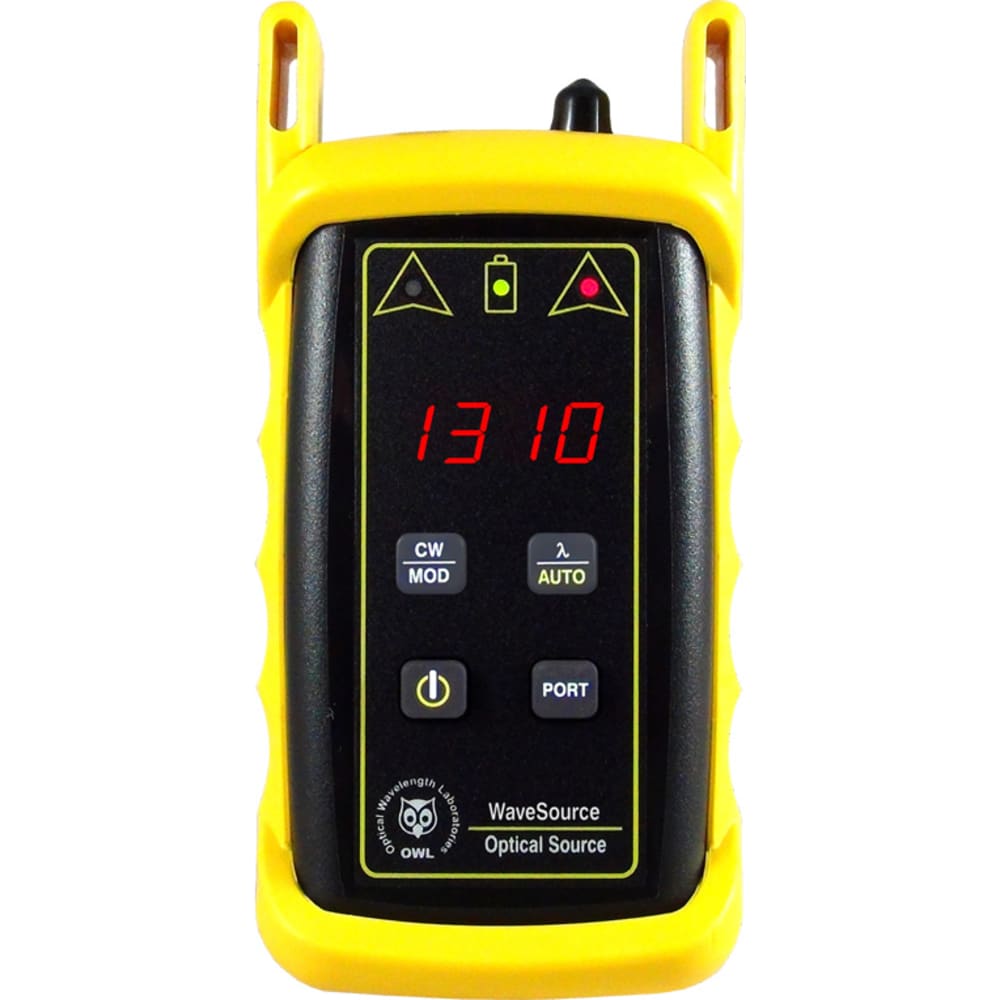

OWL WS-SDST WaveSource Dual SM Laser Source (1310 / 1550 nm) ST Connector
$597.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
| WaveSource Light Sources | |
| Output power | -20 dBm (multimode) -10 dBm (singlemode) |
| Initial Accuracy | +/- .10dB @ 25 C |
| Nist traceable calibrated wavelengths | 850nm, 1300nm (multimode) 1310nm, 1550nm (singlemode) |
| Center Wavelength | 850nm +30 / -10 nm (LED) 1300nm +/- 50nm (LED) 1310nm +/- 20nm (Laser) 1550nm +/- 30nm (Laser) |
| Spectral Width | 50nm @ 850nm (LED) 180nm @ 1300nm (LED) 2nm @ 1310nm (Laser) 2nm @ 1550nm (Laser) |
| Operating Temperature | -20 to +70 C |
| Storage Temperature | -40 to +85 C |
| WaveSource Configurations | ||||
| Multimode (Port A) | Single-mode (Port B) | |||
| Part # | Wavelengths | Connectors | Wavelengths | Connectors |
| WS-MDSD | 850, 1300 | ST, SC | 1310, 1550 | ST, SC |
| WS-MD | 850, 1300 | ST, SC | N/A | N/A |
| WS-SD | N/A | N/A | 1310, 1550 | ST, SC |
| WS-VSD | 650nm VFL* | ST, SC | 1310, 1550 | ST, SC |
| WS-MDV | 850, 1300 | ST, SC | 650nm VFL* | ST, SC |
| Part No. Legend WS-(MDV)(SDV) MDV (corresponds to Port A on the front of the unit) 850/1300nm = MD VFL = V SDV (corresponds to Port B on the front of the unit) 1310/1550nm = SD VFL = V * VFL stands for Visual Fault Locator. VFLs will work in both multimode or single-mode fibers. |
- WaveSource Dual SM
- Protective rubber boot
- 9-volt battery
- NIST-traceable certificate of calibration
- CD-ROM containing product manuals
