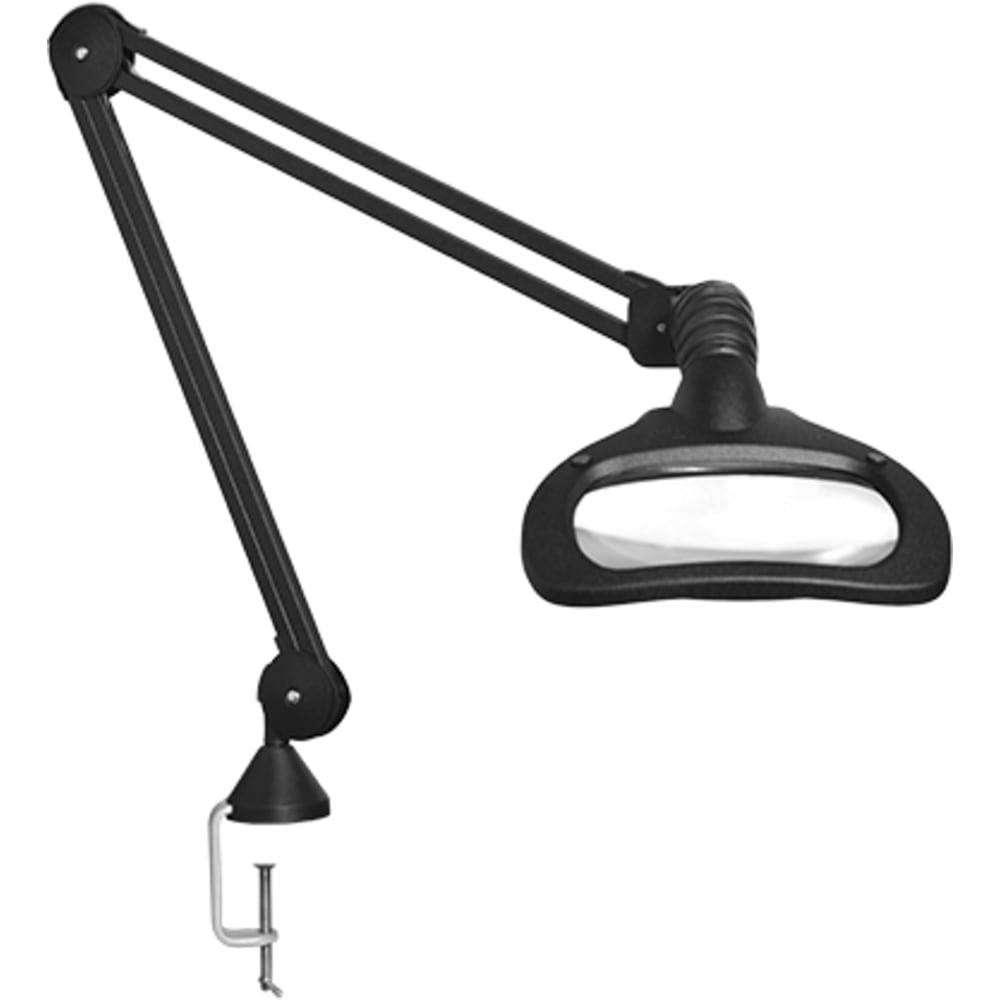

Vision Luxo WAL026781 – Wave LED Magnifier (ESD/UV Version), 45″ Arm, 5 Diopter Lens and Clamp
$469.00
In Stock
The Vision Luxo WAL026781 industrial testing magnifier delivers precise visual validation and immediate electro-static discharge shielding inside critical cleanroom assembly areas. This wave led magnifier (esd/uv version), 45″ arm, 5 diopter lens and clamp tool integrates double 6W UV-A LED source modules alongside structural conductive coating matrices. Industrial crews deploy its versatile 45-inch spring-balanced arm to detect tiny hairline material surface micro-cracks safely.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Vision Luxo WAL026781 - Wave LED Magnifier (ESD/UV Version), 45" Arm, 5 Diopter Lens and Clamp Specs
| IP classification | 20 |
| Maximum ambient temperature (°C) | 25 |
| ESD-Safe | Yes |
| Lightsource | LED |
| Number of lamps | 2 |
| Lamp power (W) | 12 |
| Lumen Out | 764 |
| Lumen/Watt | 59 |
| Average useful life (IEC 62717) Ta25 | 20000 |
| LLMF LED 50000h Ta25 | 0.80 |
| Cord length (ft) | 1.7 |
| Plug type | NA |
| Mounting | Edge clamp |
| Net weight (kg) | 4,5 |
| Arm length (in.) | 45 |
| Body color | Black |
| Primary Lens (D) | 5 |
| Magnification (X) | 2.25 |
| Working distance (mm) | 200 |
| Voltage from (V) | 110 |
| Maximum voltage (V) | 240 |
| Minimum frequency (Hz) | 50 |
| Maximum frequency (Hz) | 60 |
| Total consumption (W) | 13 |
