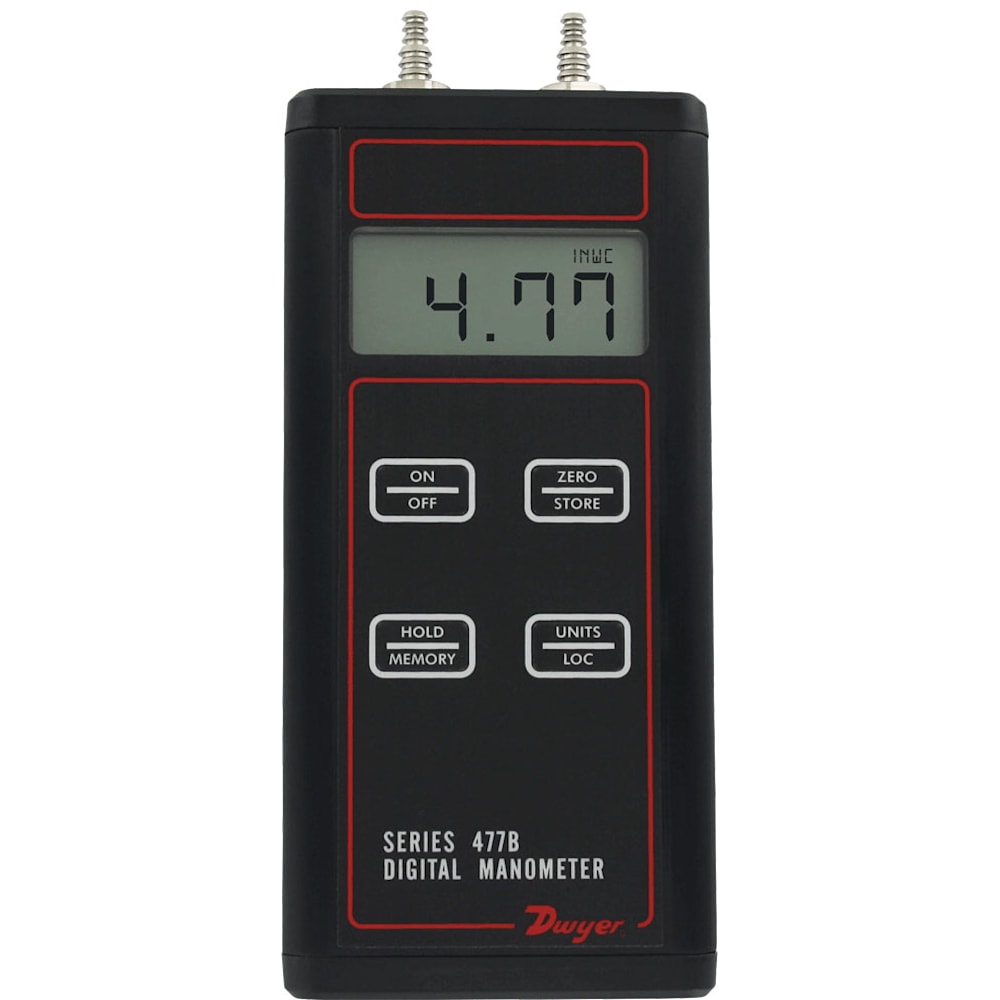

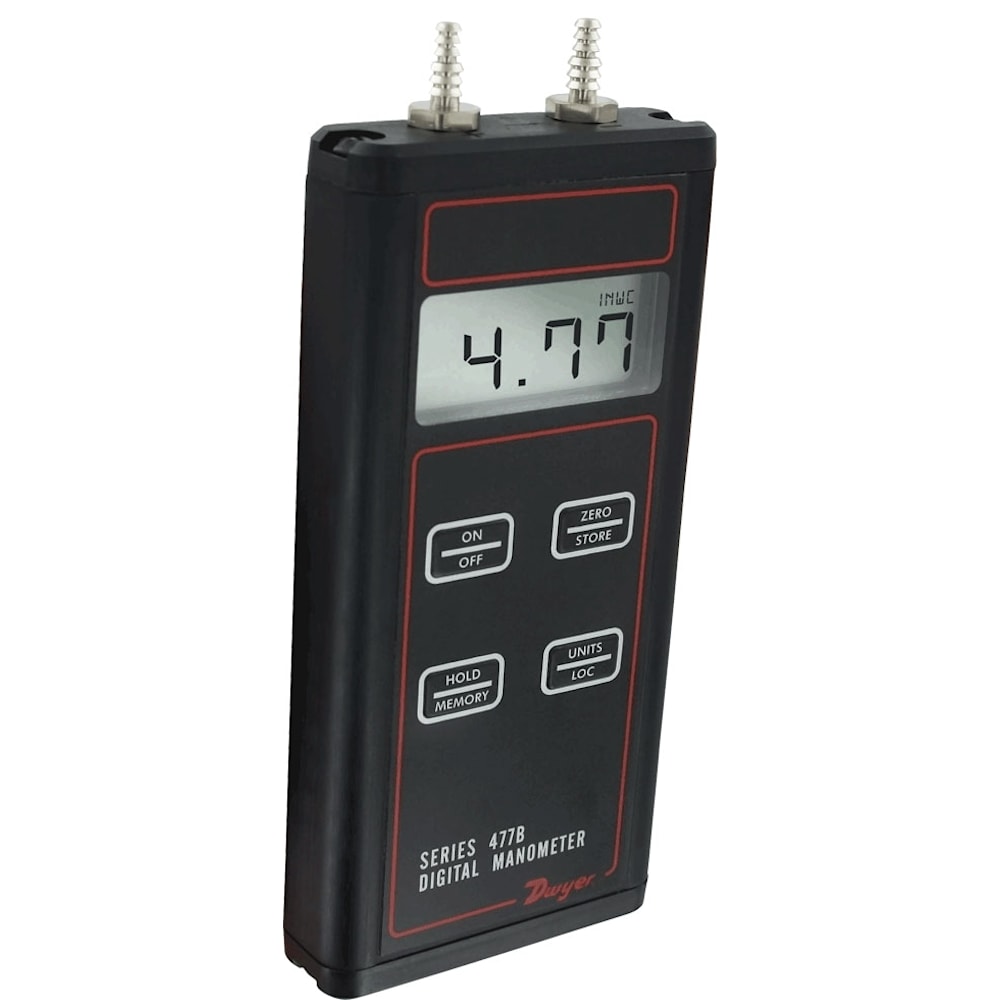

Dwyer 477B-2 – Handheld Digital Manometer, 0 to 40″ w.c. (0 to 9.96 kPa)
$406.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Dwyer 477B-2 - Handheld Digital Manometer, 0 to 40" w.c. (0 to 9.96 kPa) Specs
| Range | 0-40.00" w.c. |
| Service | Air and compatible gases. |
| Wetted Parts | Consult factory. |
| Accuracy | ±0.10% of full scale from 60 to 78F° (15.6 to 25.6°C); ±1% of full scale from 32 to 60 and 78 to 104°F (0 to 15 .6 and 25.6 to 40°C). |
| Pressure Hysteresis | ±0.1% of full scale. |
| Pressure Limits | See chart on catalog page. |
| Temperature Limits | 0 to 140°F (-17.8 to 60°C). |
| Storage Temperature Limits | -4 to 176°F (-20 to 80°C). |
| Display | 4-digit LCD (.425" H x .234" W digits). |
| Resolution | See chart on catalog page. |
| Power Requirements | 9 volt alkaline battery. Battery included but not connected. |
| Connections | Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing for 477B-1, 477B-2, 477B-3, 477B-4 and 477B-5 only. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 477B-6 and 477B-7 only. |
| Weight | 10.2 oz. (289 g). |
| Agency Approvals | CE. |
