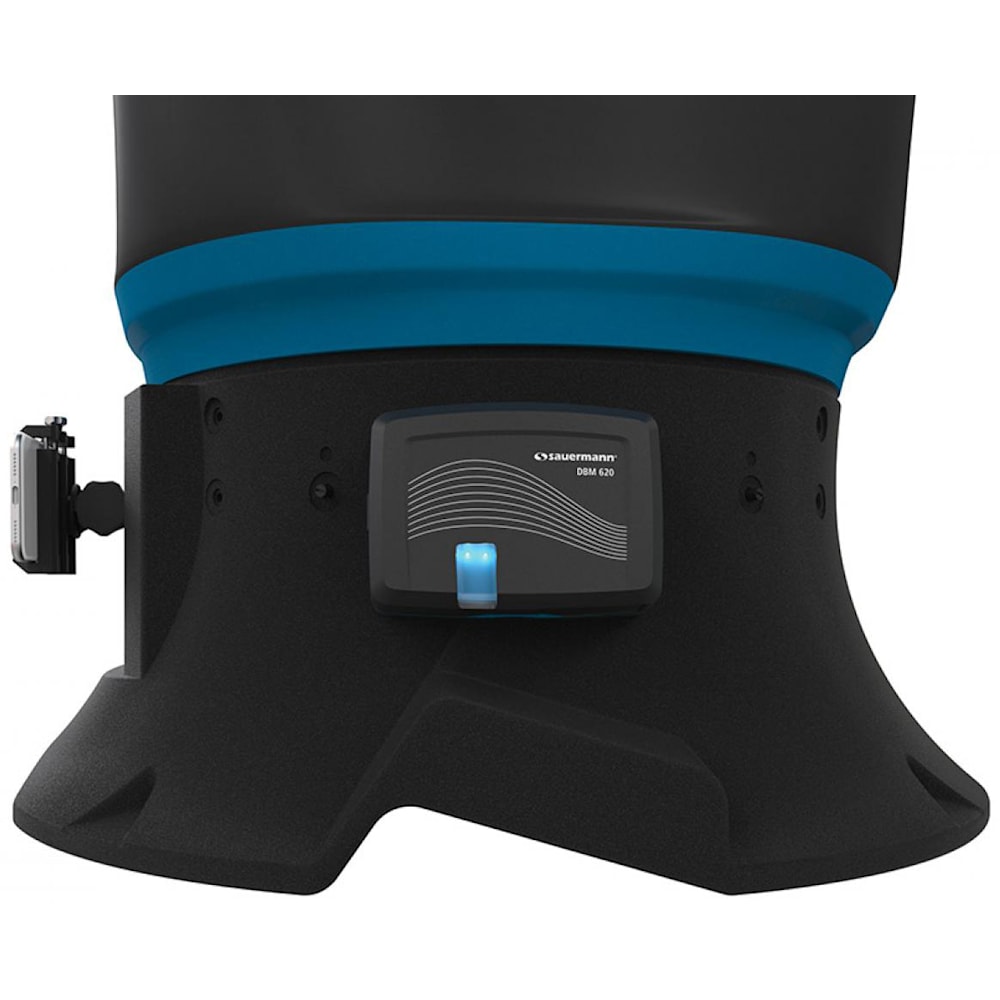

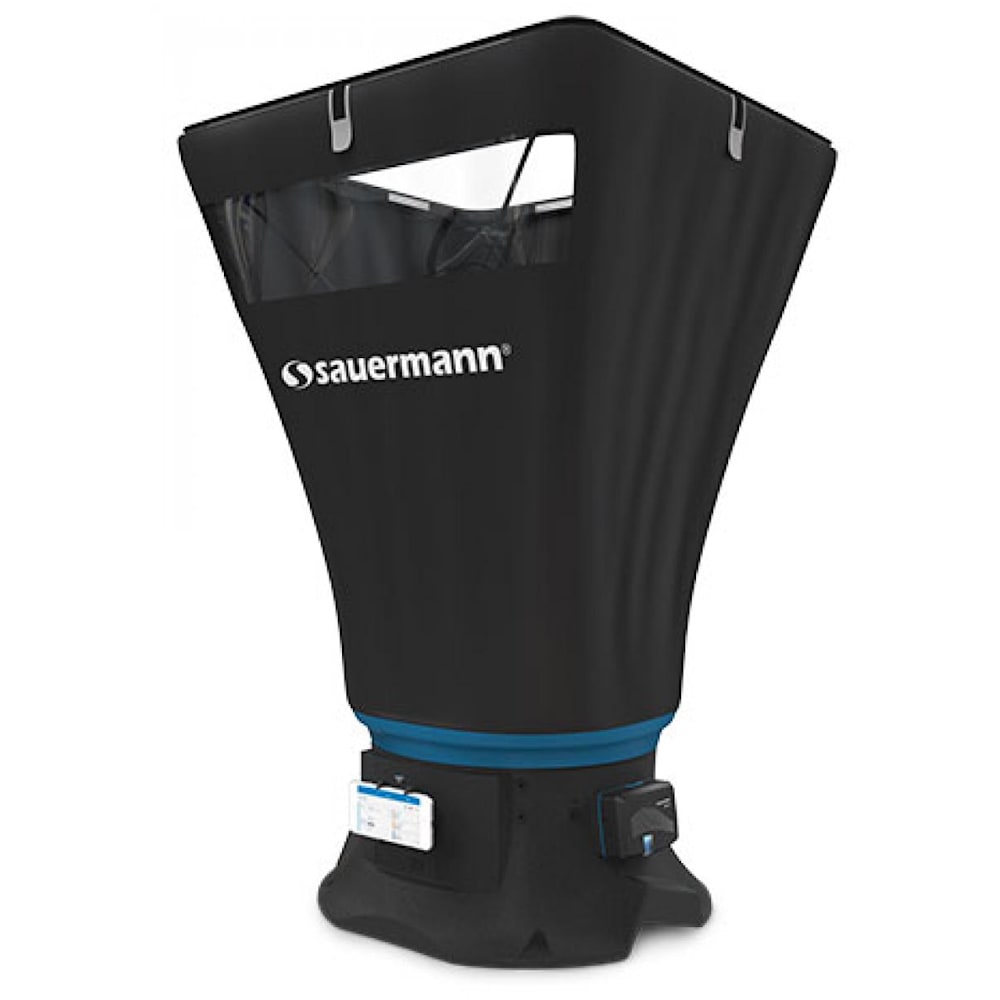

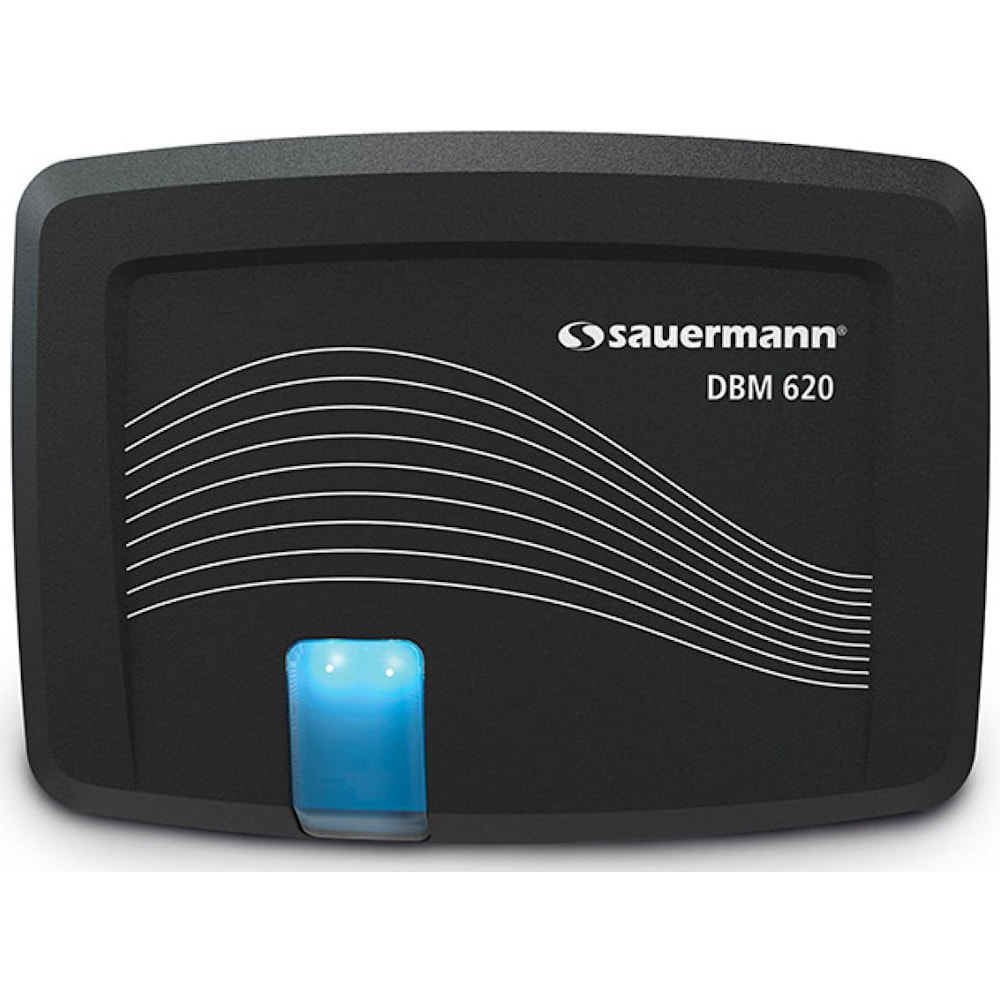

Sauermann DBM 620C – Air Flow Meter Kit
$2,340.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Sauermann DBM 620C - Air Flow Meter Kit Specs
| Type | Air Flow Meter |
| Includes | 1 Standard DBM 620 kit 4 Additionnal hoods: 1 Hood of 2.36 x 2.36 ft (720 x 720 mm) with foldable frame and transport case 1 Hood of 2.36 x 4.33 ft (720 x 1320 mm) with foldable frame and transport case 1 Hood of 1.38 x 4.99 ft (420 x 1520 mm) with foldable frame and transport case 1 Hood of 3.35 x 3.35 ft (1020 x 1020 mm) with foldable frame and transport case |
| Units | °C, % RH, Pa, m/s, hPa, mł/h |
| Airflow (calculated parameter) | Accuracy - ±3% of the measurement ±10 m3/h Measuring range - From 35 to +4250 m3/h Resolution - 1 m3/h |
| Air velocity (calculated parameter) | Accuracy - ±3% of the measured value ±0.04m/s Measuring range - From 0.2 to 10m/s Resolution - 0.01 m/s up to 3 m/s and 0.1 m/s beyond |
| Temperature (NTC) | Accuracy - ±0.2°C Measuring range - From -20 to 70°C Resolution - 0.1 °C |
| Relative humidity (capacitive sensor) | Accuracy -Repeatability, linearity: ±1.5%RH(2)(from 10 to 80% RH and from 10 to 50°C)(3)Hysteresis: 0.8% RH at 25°CTime drift: <0.5% RH per year in normalconditions of use (from 5 to 50°C and from20 to 80% RH, apart from indoor pollutants) Measuring range - From 0 to 100%RH Resolution - 0.1%RH |
| Atmospheric pressure | Accuracy - ±3 hPa Measuring range - From 700 to 1100hPa Resolution - 1 hPa |
| Pressure | Accuracy - ±0.2% of reading ±2 Pa(5) Measuring range - From 700 to 1100hPa | From -2500 to +2500 Pa Resolution - From 0.001 to 0.1 Pa |
| Parameters | Air velocity Airflow Humidity Temperature |

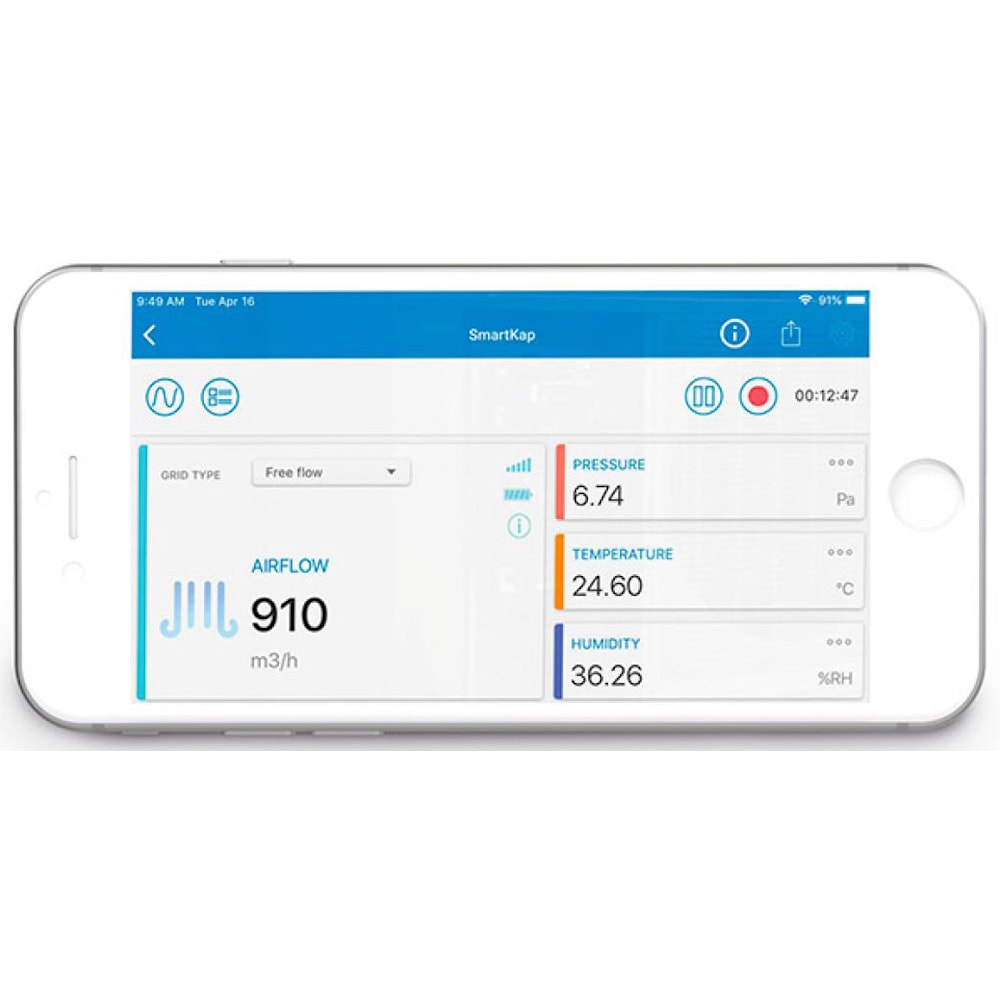

| Displays | On smartphone or tablet |
| Integrated support for smartphone or tablet | Adjustable integrated supportSmartphone or tablet max. dimensions: 10" |
| Connectors | ABS connectors, Ø7 x 4 mm |
| Maximum service pressure | 500 mbar |
| Storage capacity | Standard size of a measurement dataset report: 1 Mo |
| Module | Shock-proof made of ABS |
| Keypad | 1 key on the module |
| Languages | German, Spanish, Italian, Dutch, Portuguese, Hungarian, Polish, Romanian, Russian, Slovak, Finnish, Danish, Norwegian, Swedish, Chinese, Korean, Japanese |
| Bluetooth | Class 1 Bluetooth® 4.2 Bluetooth® range: 2.4 GHz Range up to 30 m (98 ft) - Depending on smartphone and tablet Bluetooth® radio strength. Minimum required versions: Android 4.4, iOS 8.0, Bluetooth® 4.0 |
| Auto-shut-off | Adjustable from 0 to 60 minutes |
| IP Protection | IP 40 |
| Battery life | 30 hours |
| Power supply | 4 alkaline batteries LR6 AA 1.5V |
| Protective cover | No |
| Environmental conditions of use | Air, non corrosive and combustible gasesTemperature: from -5 to +50°C, in dry air and non-condensing condition Hygrometry: in non-condensing conditions (< 80% RH)Maximum altitude: 2000 m |
| European Union directives | 2011/65/EU RoHS II; 2012/19/EU WEEE; 2014/53/EU RED |
| Length | 475 mm |
| Width | 455 mm |
| Height | 255 mm |
| Weight | 2900 g |
| Min | 0.00 °C |
| Max | 50.00 °C |
| Min | -20.00 °C |
| Max | 60.00 °C |
- 1 Standard DBM 620 kit

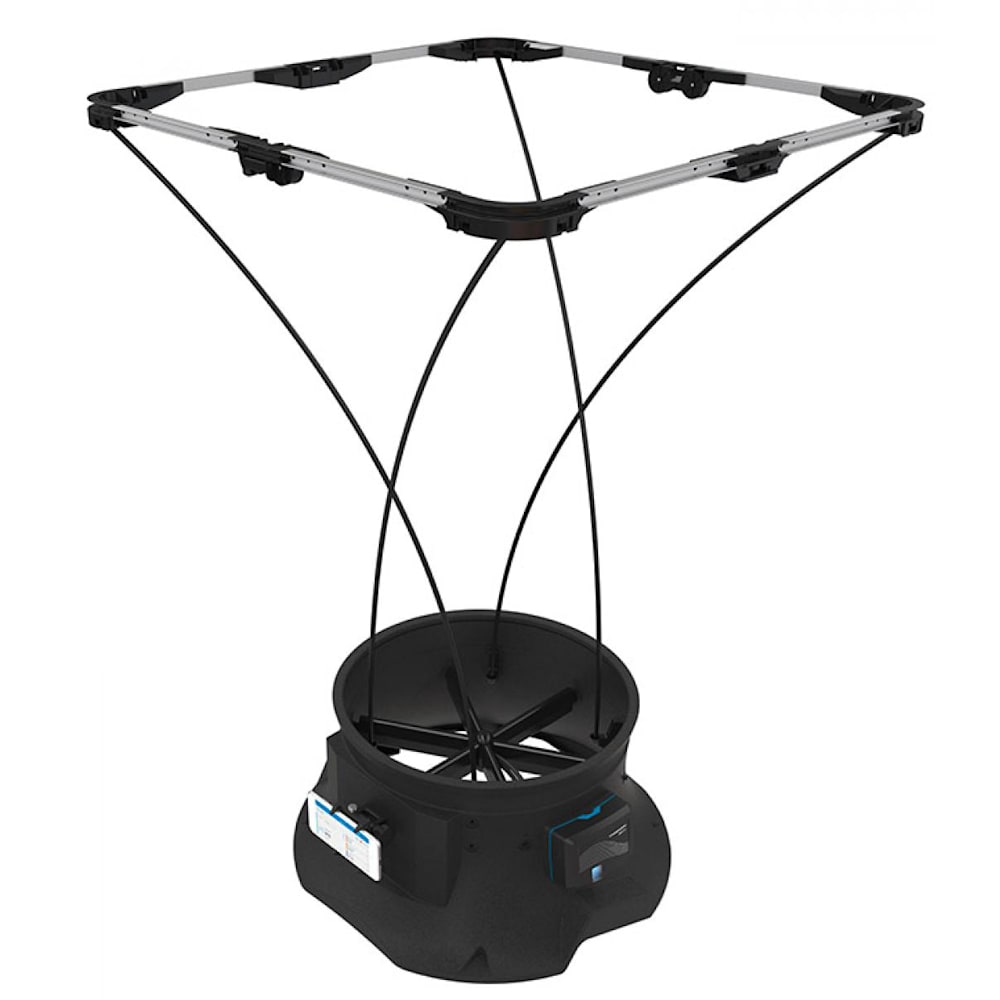

- 4 Additional hoods:
- 1 Hood of 2.36 x 2.36 ft (720 x 720 mm) with foldable frame and transport case
- 1 Hood of 2.36 x 4.33 ft (720 x 1320 mm) with foldable frame and transport case
- 1 Hood of 1.38 x 4.99 ft (420 x 1520 mm) with foldable frame and transport case
- 1 Hood of 3.35 x 3.35 ft (1020 x 1020 mm) with foldable frame and transport case
