Aven Tools 26800B-373-8 - Stereo Zoom Binocular Microscope SPZ-50 (6.75x-50x) on Ultra Glide Boom Stand and LED FOI
Aven Tools 26800B-373-8 - Stereo Zoom Binocular Microscope SPZ-50 (6.75x-50x) on Ultra Glide Boom Stand and LED FOI - Image 2
Aven Tools 26800B-373-8 - Stereo Zoom Binocular Microscope SPZ-50 (6.75x-50x) on Ultra Glide Boom Stand and LED FOI - Image 3
Aven Tools 26800B-373-8 - Stereo Zoom Binocular Microscope SPZ-50 (6.75x-50x) on Ultra Glide Boom Stand and LED FOI - Image 4
Aven Tools 26800B-373-8 - Stereo Zoom Binocular Microscope SPZ-50 (6.75x-50x) on Ultra Glide Boom Stand and LED FOI - Image 5

Aven Tools 26800B-373-8 – Stereo Zoom Binocular Microscope SPZ-50 (6.75x-50x) on Ultra Glide Boom Stand and LED FOI

$2,134.00
In Stock
In Stock
Add to wishlist
Commercial Pricing
Request for Quotations for Bulk Orders
SKU: Aven-26800B-373-8
Category:
Brand:

Aven Tools 26800B-373-8 - Stereo Zoom Binocular Microscope SPZ-50 (6.75x-50x) on Ultra Glide Boom Stand and LED FOI Specs

DescriptionStereo Zoom Bibocular Microscope SPZ-50 [6.75x-50x] on Ultra Glide Boom Stand and LED FOI
Package ContentsSPZ-50 -  Stereo Zoom Microscope   26800B-556 - Ultra Glide Boom Stand   26800B-518 -  E-Arm Focus Mount   26200A-310 - Fiber Optic Illuminator 24W   26200A-402 - Fiber Optic Ring Light   26800B-460 - Ring Light Adapter

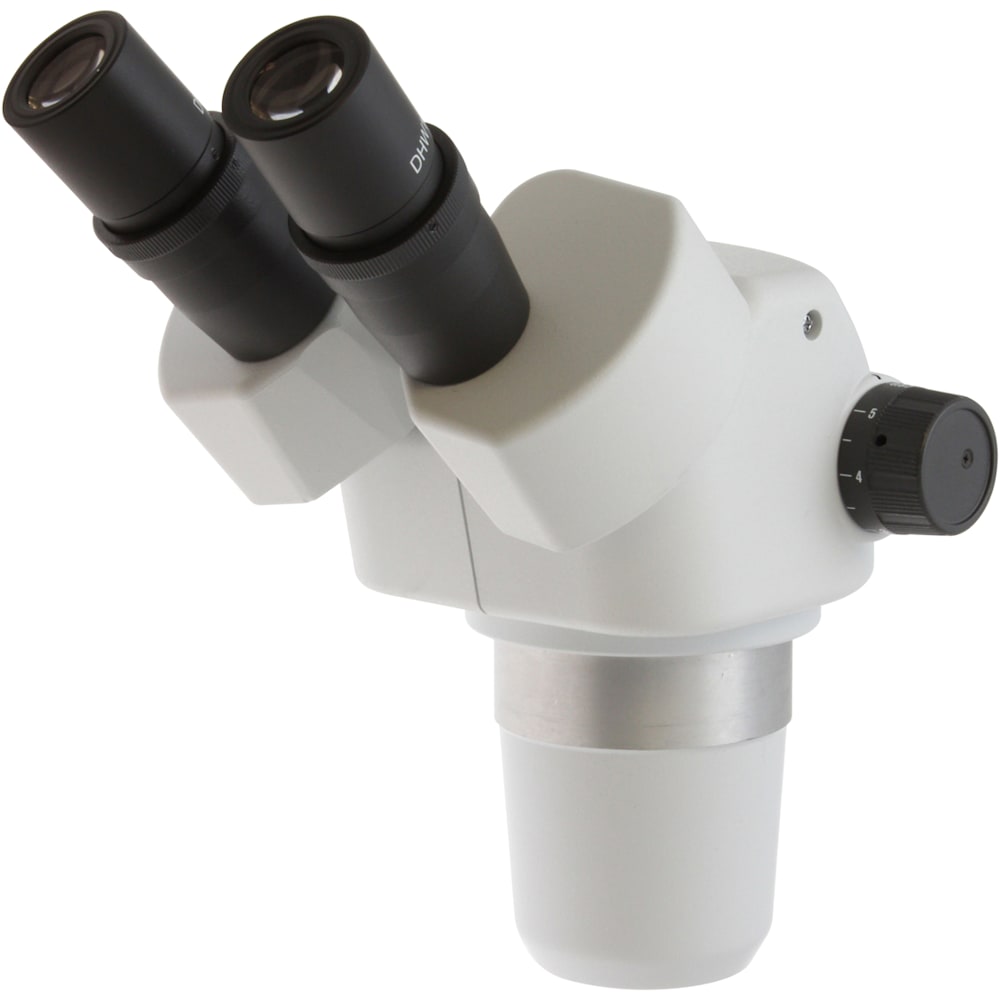

Body TypeBinocular, 360° rotatable, 45° inclined eyepiece tube
EyepiecesTwo 10x(FN23)eyepieces supplied with microscope body. Optional 15x(FN15) and 20x(FN11.4) available to extend magnification range
Auxiliary lens0.5x, 0.75x, 1.6x and 2x auxiliary lenses available to extended magnification range of microscope
Working Distance108mm without auxiliary lens 240mm with 0.5x auxiliary lens 132mm with 0.75x auxiliary lens 50mm with 1.6x auxiliary lens 41mm with 2x auxiliary lens
Zoom Ratio7.46:1
Diopter AdjustmentOn both eye tubes: +5.6D-.72D
Interpupillary DistanceAdjustable from 52 to 75mm
Optical SystemGreenough
Package Contents1 ea. SPZ Binocular Stereo Zoom Microscope Body 2 ea. 10x Eyepieces 2 ea. Rubber Eyeguards 1 ea. Dust Cover 1 ea. Instruction Manual
Weight5lb
Base Size15" x 10.5"
Base Weight35 lbs
Vertical Post Length13.5" | 342.9mm
Vertical Post Diameter1.46in | 37.2mm
Extension Post Length8.85in | 225mm
Horizontal Arm Length23" | 584.2mm
Focus Mount Hole Diameter5/8"; | 15.875mm 5/8";
Mounts AcceptedSCW-PA focus mount with tiltable arbor 26800B-521 or E-Arm
Accepted BodiesSSZ, SPZ, DSZ and NSW series
Package ContentsOne boom stand with metal base Users manual
Input96-265VAC 50-60Hz
power24V-24W
Color Temperature5600K
Illumination Intensity1600Lx
Noise<30dB
Ambient Temperature5°C - 45°C
Working Temperature<53°C
Life Time10,000 Hours
  • SPZ-50 -  Stereo Zoom Microscope
  • 26800B-556 - Ultra Glide Boom Stand
  • 26800B-518 -  E-Arm Focus Mount
  • 26200A-310 - Fiber Optic Illuminator 24W
  • 26200A-402 - Fiber Optic Ring Light
  • 26800B-460 - Ring Light Adapter
