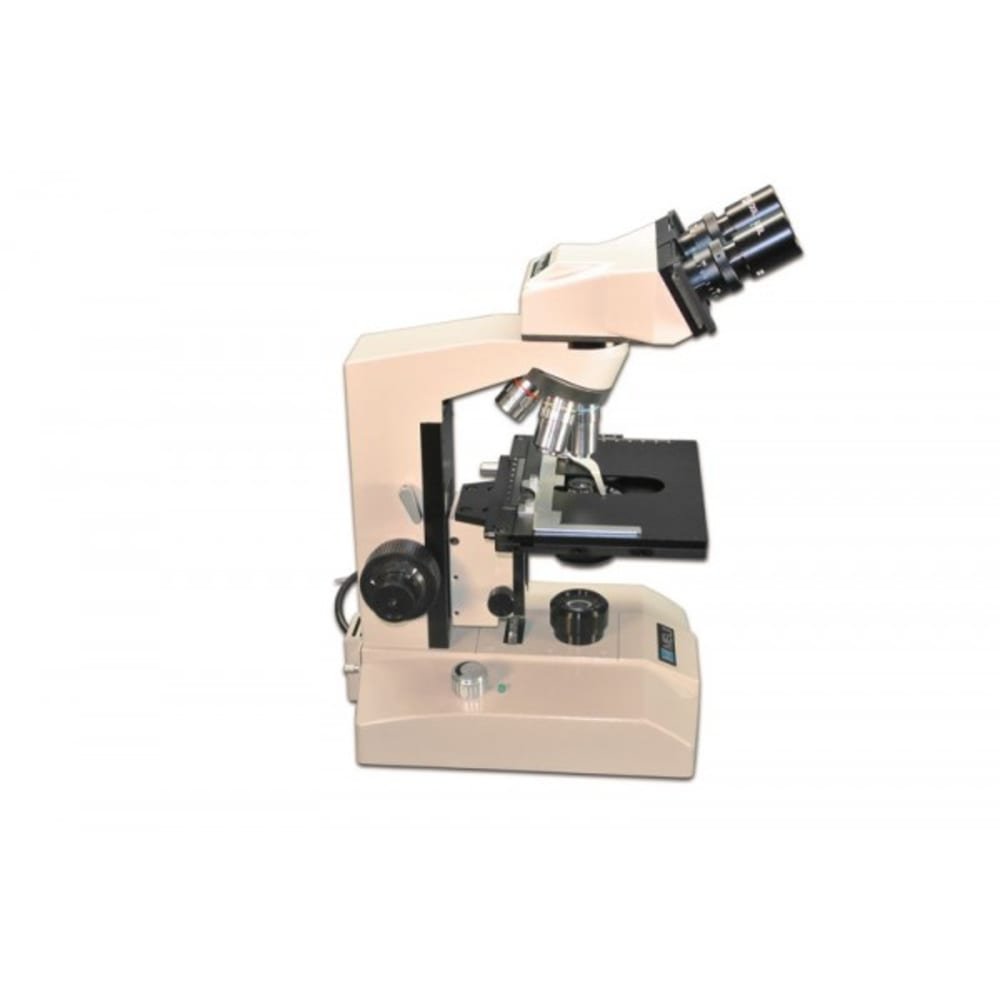

Meiji Techno ML2600L – LED Binocular Brightfield Biological Microscope (Left-Hand Controls)
$2,405.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Meiji Techno ML2600L - LED Binocular Brightfield Biological Microscope (Left-Hand Controls) Specs
| ML2600L | The ML2600L is a LED Brightfield Binocular Laboratory Compound microscope with Koehler LED illumination with forward facing quadruple ball bearing nosepiece. High resolution DIN Standard Plan objectives offer crisp, clear, high contrast images and are offered as part of the standard package. A built in integrated Koehler illuminator with a field iris and LED lamp and variable intensity control is provided standard equipment to complement the Planachromat optics. The low voltage, high intensity, pre-centered LED lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination. Flat-Top Mechanical stage with 171mm and 140mm rectangular stage with movement of 78mm (X) x 52mm (Y) with drop down Ergonomically placed low positioned coaxial controls and a detachable specimen guide. |
| MA602 | Inclined Binocular head Inclined at 30°, 360° rotatable, dual graduated diopter eyetubes with interpupillary adjustments 52mm to 72mm |
| MA406 qty#2 | DIN HWF10X eyepiece, Field No. 18, (each) |
| MA622 | 4X/0.10 Planachromat objective, Non-Infinity 160mm Tube Length |
| MA623 | 10X/0.25 Planachromat objective, Non-Infinity 160mm Tube Length |
| MA625 | 40X/0.65 Planachromat objective, spring loaded, Non-Infinity 160mm Tube Length |
| MA627 | 100X/1.25 Planachromat objective, spring loaded, Non-Infinity 160mm Tube Length |
| MA661 | Achromatic substage condenser 1.25 NA with iris diaphragm and 30mm filter tray |
| Stage | Mechanical X-Y stage with attached finger assembly and drop down post, attached stage is 120mm x 140mm rectangular mechanical stage with movements of 75mm (X) x 40mm (Y) and is graduated with Vernier readings to 0.1mm, equipped with low positioned drop down coaxial controls. (Factory Installed) |
| Focusing Adjustment | Coaxial coarse and fine focusing controls with graduation reading 2 microns power division. Incorporates tension adjustment and safety Auto-focus stage stop lever |
| MA289/05 | Blue filter, clear, 29.8mm diameter |
| MA676 | Attachable clinical specimen holder for MA596R and MA596L |
| MA596L | Flat-top stage with clinical specimen holder, 78mm X 52mm, X-Y movement, with drop-down coaxial controls (Left) for models ML2400L, |
| LED/SP-1 | 3W LED, 5500K color temperature |
| MA808/10 | AC adapter for ML2000L, ML5000L, ML6100L, ML6500L, and ML9000L series. AC Input: 100V~240V, DC Output: 5V 2.5A |
| MA700 | Immersion Oil. 15cc |
| MA701 | Dust Cover for ML2000L |
| Manual | Meiji Techno America ML2000L Manual |
| Warranty | Limited Lifetime Warranty Card |
| Manufactured | 100% MADE IN JAPAN |
| Warranty | LIMITED LIFETIME WARRANTY |
| Customer Support | 1-(800) 832-0060 (U.S.A Based) |
| Weight | 21.0 lbs (9.5 kg) |
| Box Size | 22 x 16 x 23 inches |
| Footprint | 254mm (D) x 203mm (W) |
| Binocular head type | 255 mm(D) x 395 mm (H) x 195mm(W) 21.0 lbs. (9.5kg) |
| Trinocular head type | 255 mm(D) x 440 mm (H) x 195mm(W) 22.0 lbs. (10.0kg) |
