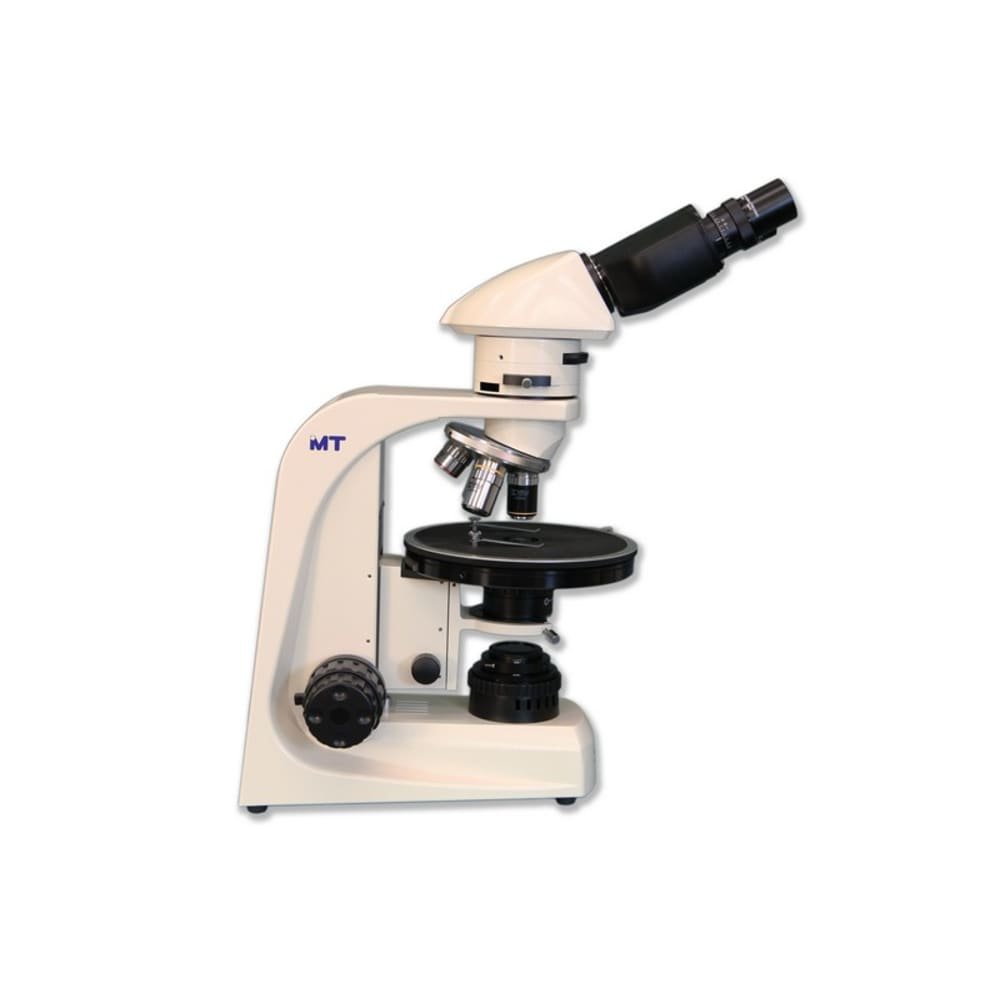

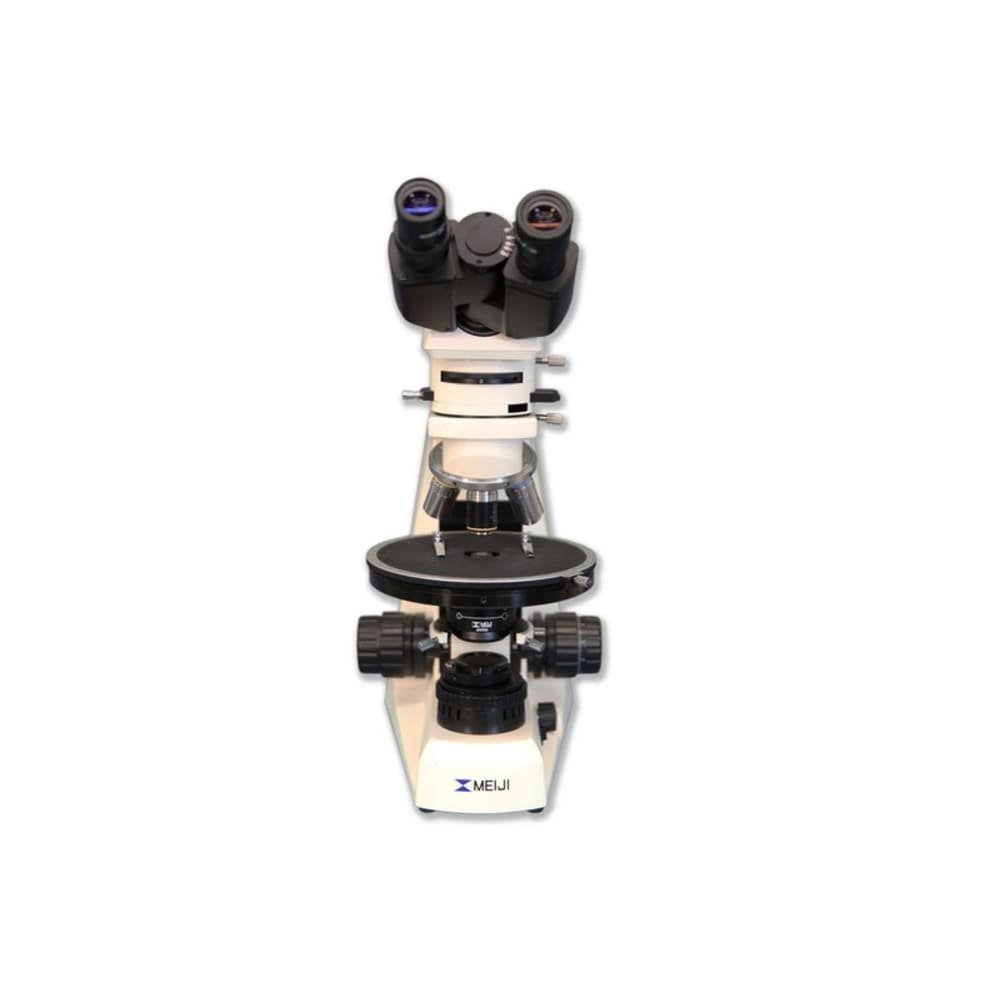

Meiji Techno MT6820 – Halogen Binocular Asbestos PLM/PCM Microscope

MT6820: Meiji Techno Binocular MT6800 Series Asbestos PLM–PCM Combination Microscopes for Bulk Fiber Identification NIOSH 7400  & 9002 and OSHA ID 160 Reference.  The MT6800 has been designed as a versatile,  modular, ergonomic Asbestos PLM-PCM microscope combination system which are ideally suited in education, research or advanced laboratory applications where in space is limited.  Transmitted 6V 30W Koehler Halogen illuminator with strain free condenser with slider for dispersion staining objectives and strain free ∞ Infinity Corrected objectives and  Dispersion Staining Objectives. The MT6800 Series offers an outstanding range of features and optical performance with an emphasis on all newly engineered high performance optics based on Meiji Techno’s ICOS Optical System (Infinity Corrected Optical System).  The new strain free optics, provide exceptionally bright, crisp images, with good color rendition and superior flat fields of view.

MA952: Binocular head, 30° inclination.  graduated diopter  on left eyetube  with interpupillary adjustments of 53mm to 75mm. (23.2mm I.D. eyetube

MA407: KHW-10X Compensating eyepiece, F.N. 20,(each) (Tube O.D. 23.2mm)

MA407/W: KHW-10X Compensating eyepiece, F.N.20 with Walton & Beckett reticle factory installed (each)(Tube O.D. 23.2mm)

MA254/05: Walton & Beckett reticle, 21mm diameter (Factory installed in MA407/W)

Nosepiece: Reverse Facing Quadruple ball-bearing with one fixed and three centerable objective apertures

MA936: Strain free Plan objective 10X/N.A. 0.25, W.D. 7.3mm, ∞ Infinity Corrected

MA936D: Strain free Plan objective 10X/N.A. 0.25, W.D. 10.6mm, ∞ Infinity Corrected (Dispersion Staining Objective)

MA937: Strain free Plan objective 20X/N.A. 0.40, W.D. 7.29mm, ∞ Infinity Corrected

MA938: Strain free Plan objective 40XS/N.A. 0.40, W.D. 0.72mm, ∞ Infinity Corrected

MA954/05: Strain free Abbe condenser, N.A. 1.25, includes sliding mount with annulus for 10X, 20X, 40X phase or 10X, 20X, 40X dispersion staining objectives in sliding mount with iris diaphragm, dovetail mount

MA458: Focusing Centering Telescope, 23.2mm O.D.

MA759: Green interference filter 546nm, 29.8mm diameter, unmounted (Fits in filter slot below swing-out polarizer)

MA946: Stainless Steel Stage Clips ( 2 pcs.)

MA470/05: First Order Red compensating plate, 530nm for MT6800 (20mm X 6mm X 80mm)

MA471/05: Analyzer (Sliding type for MT6800 Series (26mm X 6mm X 80mm)

MA477/05: Bertrand lens (Sliding type) for MT6800 Series

Stage: Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed)

Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division.  Incorporates tension adjustment and safety Auto-focus stage stop lever

MA289/05: Blue clear daylight filter, 29.8mm diameter, unmounted

MA285: Glass Stage Micrometer with 1mm divided into 100 units, 0.01mm

MA326: Bulb 6V 30W Halogen (Factory Installed)

MA327: Fuse 3 Amp (Factory Installed)

MA809/10: Removable AC Electric cord with plug for 115V models (Included in all 115V models)

MA809/20: Removable AC Electric cord with plug for 220V models (Included in all 220V models)

Polarizer: Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0°and 90°

MA712: Dust cover for MT6800 Series

Manual: Meiji Techno America MT6800 Manual

Warranty: Limited Lifetime Warranty Card
