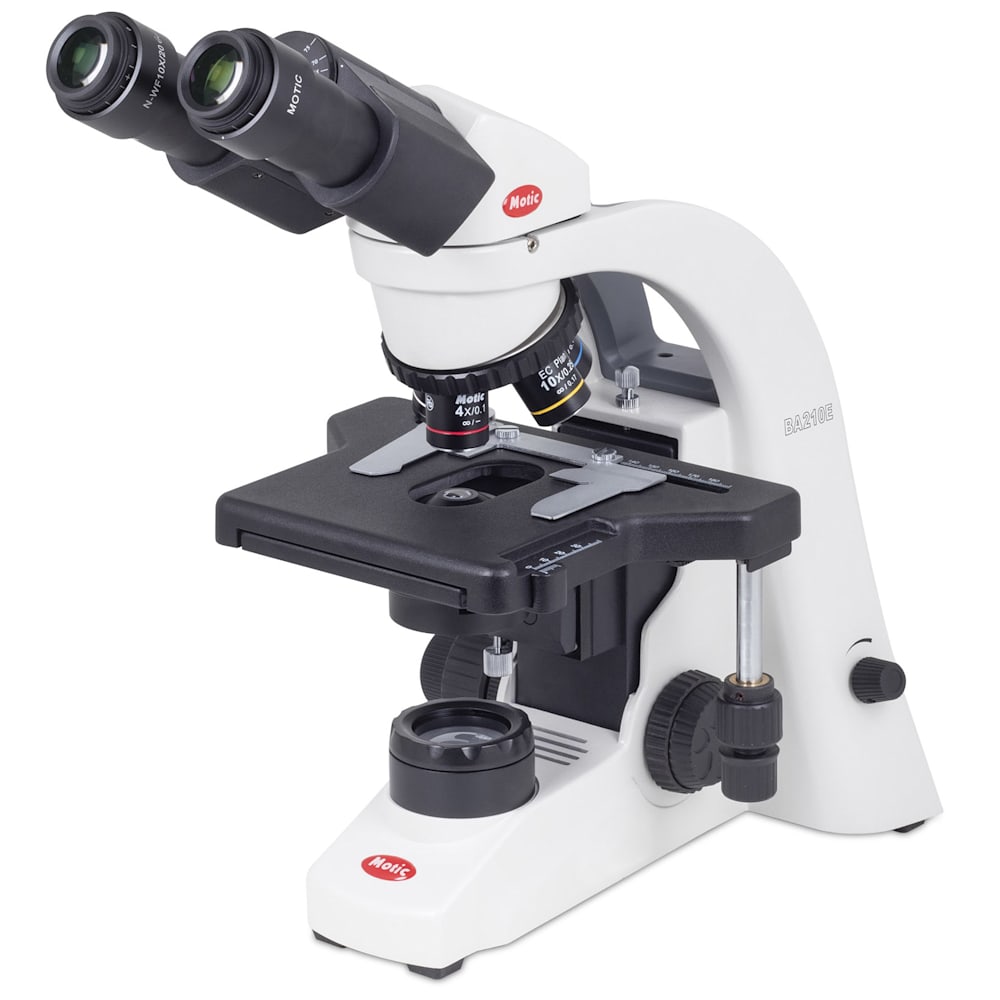

Motic BA210E – Elite Binocular Biological Microscope, 3.4V ~ 3W LED, 90-240V~, 80VA, 50-60Hz, 250V T2.5A Fuse
$887.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Motic BA210E - Elite Binocular Biological Microscope, 3.4V ~ 3W LED, 90-240V~, 80VA, 50-60Hz, 250V T2.5A Fuse Specs
| Optical system Colour | Corrected Infinity Optical System (CCIS®) |
| Observation tube | Binocular head, Siedentopf type |
| Inclination | 30º inclined, 360º rotating |
| Interpupillary distance | 55-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment |

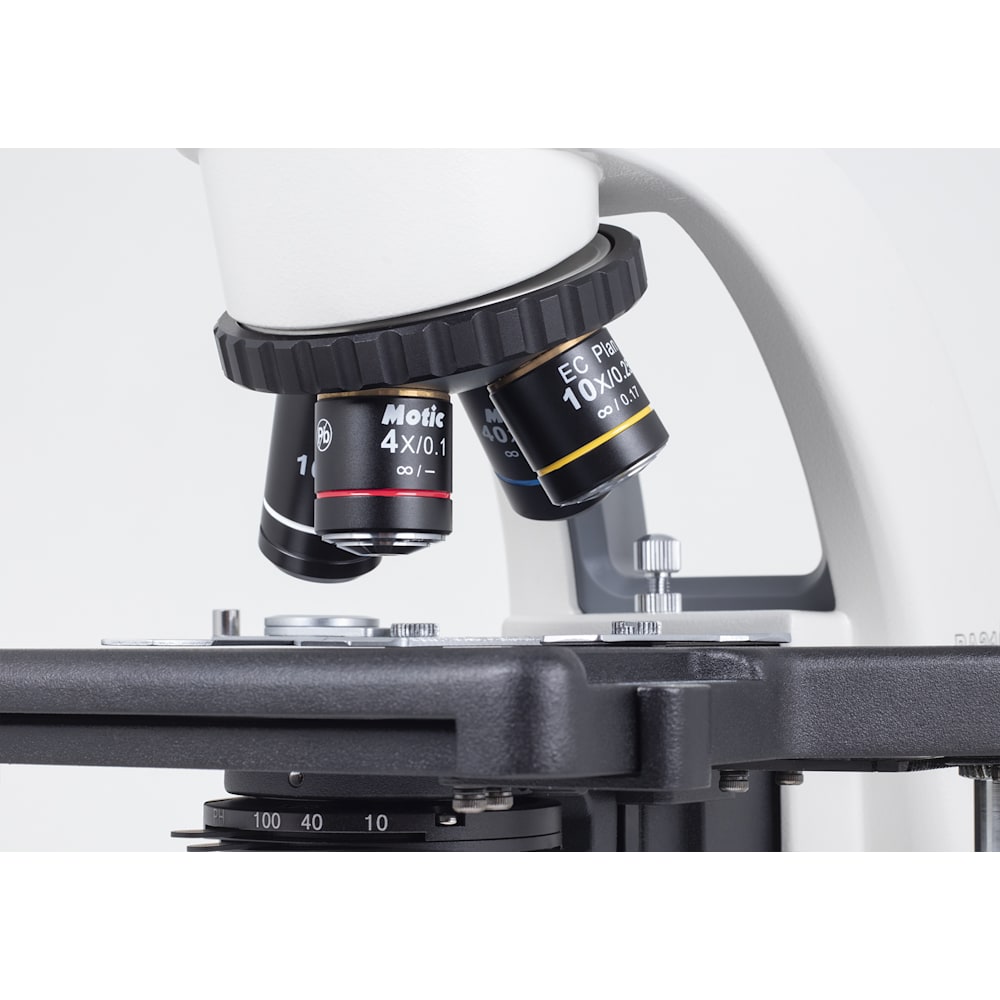

| Nosepiece | Reversed quadruple |
| Objective classification | CCIS® EC Plan Achromatic, DIN |
| Objectives | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Mechanical stage with built-in low position rackless coaxial stage control and sample holder |
| Stage size | 150x150mm |
| Travel range X&Y | 80x30mm |
| Condenser | Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2µm |
| Focusing stroke | 20mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator with fixing cap |
| Transmitted illumination | Quartz halogen 6V/30W with intensity control |
| Illumination interchangeability | Quartz halogen 6V/30W or LED 3W |
| Transformer | Internal |
| Power supply | 100-240V (CE) |
| Dimensions LxWxH | 360x220x395mm |
| Net weight | 7.2kg |
- Dust cover
- Power cord
- Allen key
- Immersion oil (5ml)
- Blue filter
- Spare fuse
- Cord hanger
- Thumbscrew
