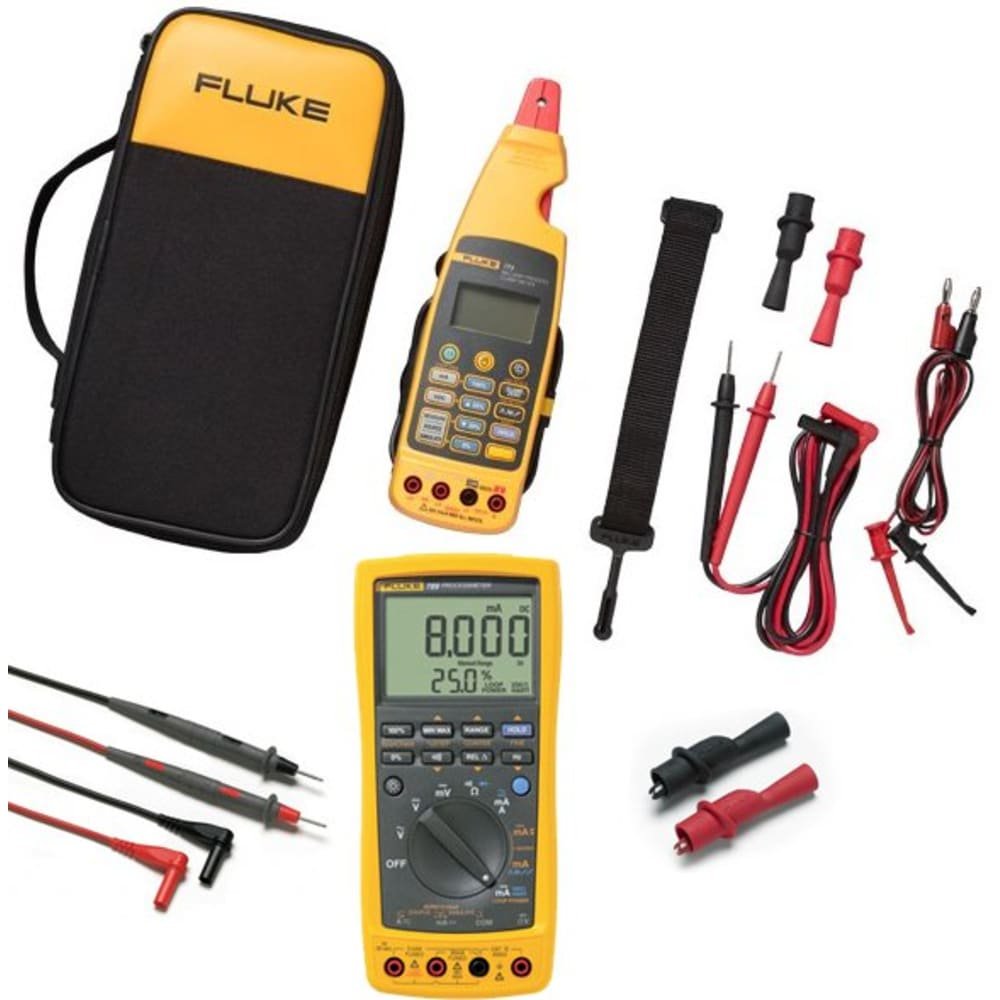

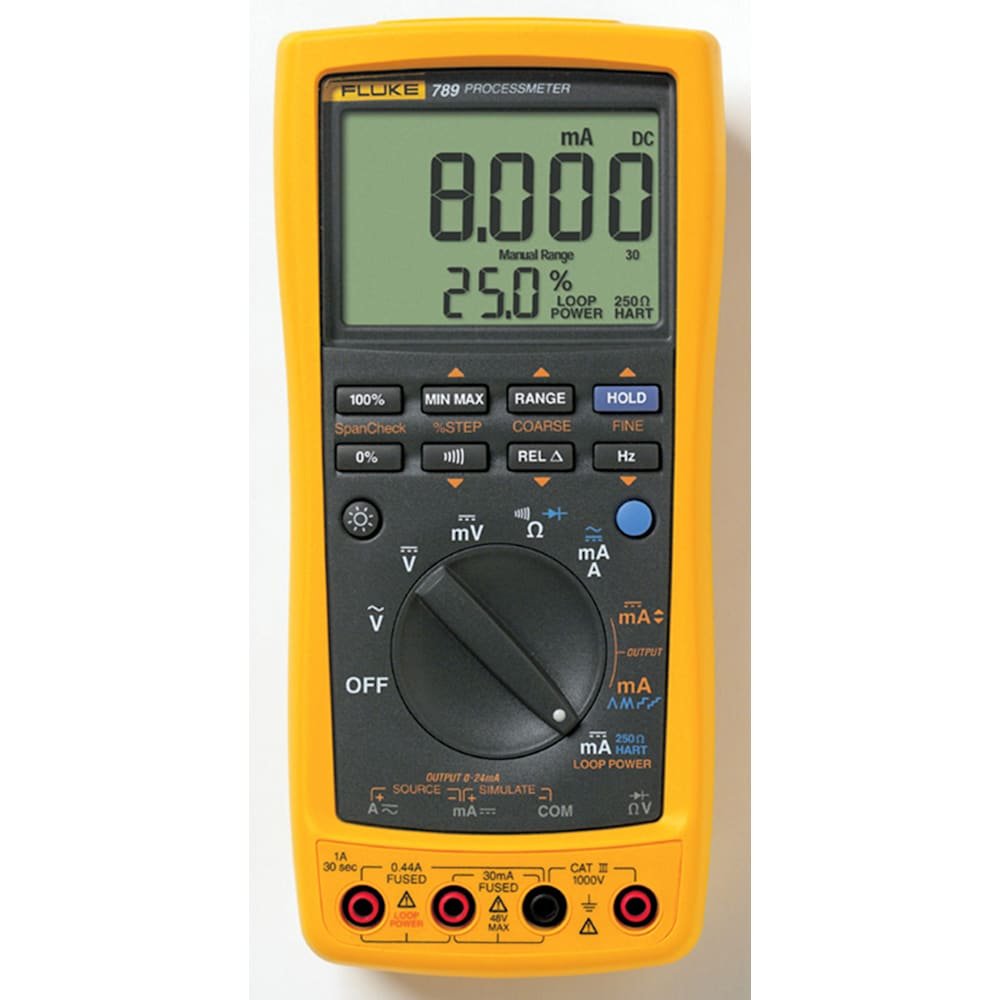

Fluke 789/773 BU 789 Process Meter and 773 Milliamp Process Meter Bundle Package
$1,724.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Fluke 789/773 BU 789 Process Meter and 773 Milliamp Process Meter Bundle Package Specs
| Range: | 0-1 A AC or DC |
| Resolution: | 1 mA |
| Accuracy: | 0.2% + 2 LSD (DC) |
| Range: | 0-30 mA |
| Resolution: | 0.001 mA |
| Accuracy: | 0.05% + 2 LSD |
| Range: | 0-20 mA or 4-20 mA |
| Resolution: | 0.05% of span |
| Drive Capability: | 24 V Compliance or 1200 Ω @ 20 mA |
| Frequency | to 19.999 kHz, 0.005% + 1 LSD |
| Continuity | Beeps for resistance < 100 Ω |
| Range: | 0-1000 V AC (true-rms) or DC |
| Resolution: | 0.1 mV to 1.0 V |
| Accuracy: | 0.1% Rdg + 1 LSD (VDC) |
| Resistance measurement | to 40 MΩ, 0.2% + 1 LSD |
| Diode test | 2.0 V shows diode voltage drop |
| Display current and % of span | Yes |
| Auto step, auto ramp | Yes |
| Operating Temperature | -20 ºC to 55 ºC |
| Storage Temperature | -40 ºC to 60 ºC |
| Humidity (Without Condensation) | 95% up to 30 ºC 75% up to 40 ºC 45% up to 50 ºC 35% up to 55 ºC |
| Temperature Coefficient | 0.05 x (specified accuracy) per ºC (for temperatures 28 ºC) |
| Electrical Safety | Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-92 |
| Overvoltage category | IEC 1010-1 CAT III 1000 V IEC 1010-1 CAT IV 600 V |
| Maximum voltage | 1000 V rms |
| Size | 50 x 100 x 203 mm (1.25" H x 3.41"W x 7.35" L) |
| Weight | 610 g (1.6 lbs) |
| Batteries | 4 AA Alkaline batteries |
| Warranty | 3 years |
| Battery Life | 140 hours typical (measurement), 10 hours typical (sourcing 20 mA) |
| Shock & Vibration | Random, 2 g, 5-500 Hz 1 meter drop test |
| Diameter of measurable conductor | 0.177” or 4.5 mm max |
| Operating temperature | -10 to 50 ºC |
| Storage Temperature | -25 to 60ºC |
| Operating Humidity | < 90% @ <30 ºC, < 75% @ 30 to 55ºC |
| Operating Altitude | 0 to 2000 m |
| IP Rating | IP 40 |
| Size | 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in) |
| Weight | 410 g, (14.4 oz) |
| Vibration | Random 2 g, 5 to 500 Hz |
| Shock | 1 meter drop test (except the jaw) |
| EMI/RFI | Meets EN61326-1 Note: For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m. |
| Temperature Coefficient | 0.01% ºC ( 28ºC) |
| Power, battery life | (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms |
| Warranty | Three years for electronics; One year for cable and clamp assembly |
| mA measurement (Measured by clamp) | Resolution and Range: |
| Accuracy: | 0.2% +2 counts |
| Resolution and Range: | 21.0 mA to 100.0 mA |
| Accuracy: | 1% + 5 counts |
| mA measurement (Measured in series with test jacks) | Resolution and Range: |
| Accuracy: | 0.2% + 2 counts |
| mA source (Maximum mA Drive: 24 mA into 1,000 ohms) | Resolution and Range: |
| Accuracy: | 0.2% + 2 counts |
| mA simulate (Maximum voltage 50 V dc) | Resolution and Range: |
| Accuracy: | 0.2% + 2 counts |
| Voltage source (2 mA maximum drive current) | Resolution and Range: |
| Accuracy: | 0.2% + 2counts |
| Voltage Measure) | Resolution and Range: |
| Accuracy: | 0.2% + 2counts |
Fluke 773 includes:
- (4) AA alkaline batteries (installed)
- (1) Soft carrying case
- (1) TL75 test leads
- (1) AC 72 detachable clip
- (1) TL 940 mini hook test leads
- (1) Instruction sheet
- (1) Hanging tool with hook and loop strap
- (1) AC175 Alligator Clips
- (4) AA 1.5 V alkaline battery (installed)
- (1) TL71 Safety-Designed Test lead Set
- (1) Users Manual
- (1) Quick Reference Guide
