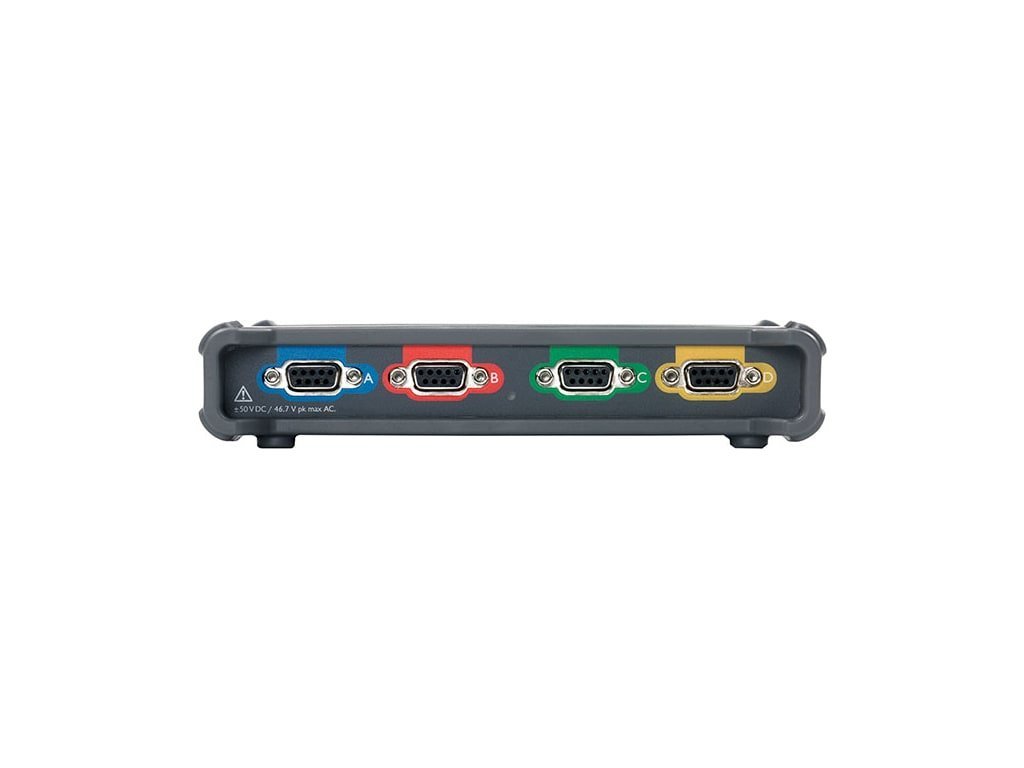

PicoScope 4444 – Differential Input Oscilloscope

Description

The PicoScope 4444 PC-based true differential oscilloscope isolates complex timing logic anomalies across advanced commercial power systems and ungrounded circuit topologies. This quad-channel instrumentation platform offers hardware developers a highly flexible modular capture layer, allowing engineering benches to trace multi-point voltage transitions and floating electrical metrics simultaneously via intelligent probe sensor nodes without adding ground-loop risks or system layout processing bottlenecks.

Operating at a continuous 400 MS/S real-time hardware sampling velocity across active pathways with a 17.5 ns rise time threshold, a 20 MHz bandwidth, and an expansive 256 MS deep acquisition memory layout, the platform captures random voltage transients accurately. The underlying engineering framework incorporates highly efficient differential input architectures to maximize common-mode rejection and protect delicate physical-layer waveforms.

Key Features of PicoScope 4444

• Four True Differential Inputs: Bypasses dangerous ground-loop feedback loops when diagnosing floating or ungrounded circuit baselines.
• Flexible 12-Bit or 14-Bit Quantization: Adjusts true hardware digitization depth dynamically based on specific tracking resolution requirements.
• Four Intelligent Probe Interfaces: Communicates seamlessly with active transducers using native Pico D9 communication ports.
• 256 MS Deep Buffer Memory: Retains high-fidelity trace data without truncating sub-nanosecond anomalies across long sweeps.
• Blazing 100,000 wfms/s Update Engine: Captures transient signal dropouts instantly by virtually eliminating internal trigger dead time.
• High-Speed 400 MS/S Sampling Speed: Delivers maximum horizontal tracking fidelity when executing critical 12-bit diagnostic routines.
• Bus-Powered SuperSpeed USB 3.0 Interfacing: Draws operational power and coordinates data offloading directly over standard data lines.

Flexible Hardware Resolution and Quantization Layering

The core processing layer leverages a premium flexible resolution hardware digitizer combined with a responsive 17.5 ns rise time and advanced differential hardware controls to eliminate data manipulation latency during critical circuit diagnostics. This PC-driven modular setup enables automated test engineers, repair technicians, and research labs to downshift vertical depth parameters to achieve a blistering 400 MS/S velocity at 12 bits, or upshift to 14 bits of true hardware resolution at 50 MS/S to track microvolt-level deviations without risking signal attenuation near the system Nyquist limit. All real-time signals pass directly through the integrated digitizer framework to maintain a clean signal-to-noise ratio and isolate delicate signal paths from ambient electromagnetic facility noise floor interference.

Floating Power Network Interfacing and Protection

Constructed to excel in advanced automated validation blocks, alternative energy design labs, and specialized high-voltage production benches, the compact United Kingdom manufactured module optimizes limited table footprints. The structural multi-instrument framework native to the PicoScope line ensures immediate automated data extraction over standard communication loops without inducing structural baseline thermal drift during long training sessions or prolonged diagnostic loops. Guaranteeing exceptional long-term facility asset protection and clear operational clarity, this professional differential test suite comes standard with a verified 5-Year Warranty framework to ensure continuous equipment dependability.
