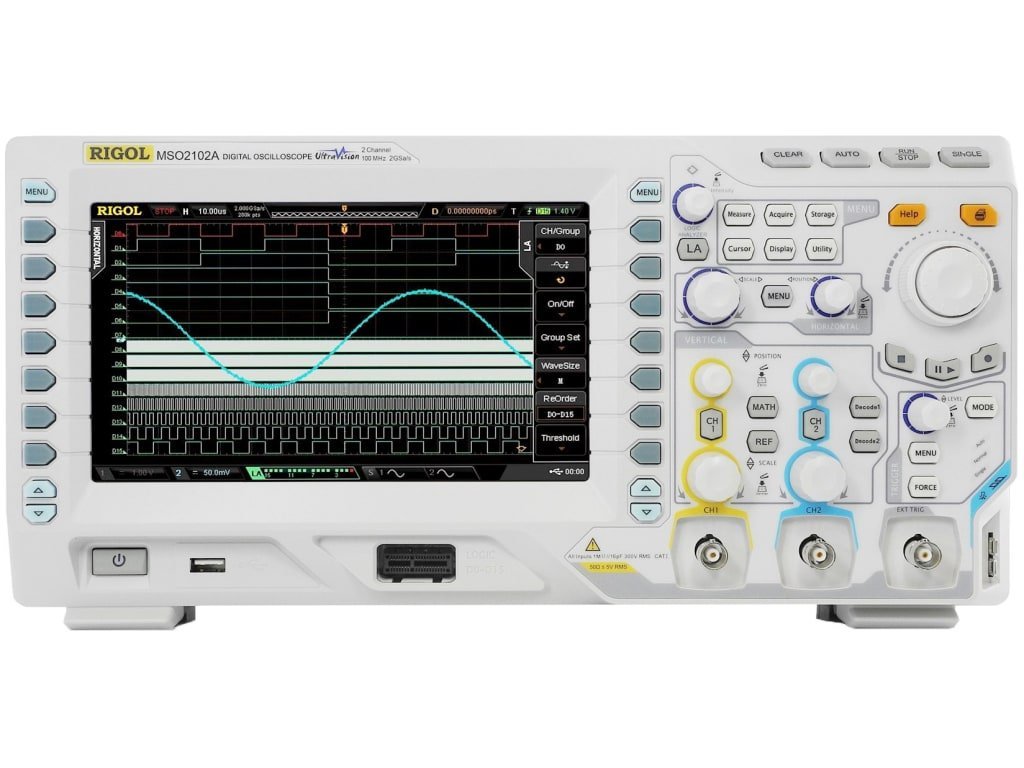

Rigol MSO2102A-S Mixed Signal Oscilloscope 100MHz, 2+16 MSO + 2 CH Source

Description

The Rigol MSO2102A-S mixed-signal digital storage oscilloscope coordinates comprehensive cross-domain testing routines by integrating active dual-channel physical stimulus loops directly alongside flexible multi-channel digital logic pathways. This multi-instrument workbench system utilizes a high-visibility 8.0-inch WVGA screen driven by advanced hardware processing arrays to map, measure, and isolate rapid transient voltage anomalies, clock glitches, and control bus failures across modern multi-layer circuit configurations simultaneously without requiring extra signal equipment nodes.

By coupling a 100 MHz system bandwidth baseline with an interleaved 2 GS/S maximum real-time sampling speed across active tracking boundaries, a 3.5 ns rise time threshold, and a standard 14 Mpts memory layout upgradable to 56 Mpts, the platform maintains superior tracking fidelity. This high-performance hardware framework incorporates an advanced digitizer engine and an integrated dual-channel 25 MHz signal generator to accelerate prototyping diagnostics.

Key Features of Rigol MSO2102A-S

• Integrated 25 MHz Dual Channel AWG: Injects high-accuracy custom signal stimulation patterns using a flexible dual-channel architecture.
• Complete Mixed Signal Interfacing Core: Links sixteen digital logic channels alongside two analog pathways for complete cross-domain analysis.
• High-Speed 2 GS/S Real-Time Sampling: Captures repetitive signal patterns and unexpected voltage glitches accurately across active analog paths.
• Upgradeable 56 Mpts Buffer Depth: Sustains peak horizontal sampling resolution over long, uninterrupted trace capture windows.
• 3.5 ns Rapid Rise Time: Profiles fast analog fluctuations to isolate setup-and-hold circuit timing errors.
• 50,000 wfms/s Waveform Refresh Engine: Flushes out elusive clock jitter anomalies by maintaining active hardware trace refreshing.
• Compact Desk Workspace Footprint Framing: Packs advanced multi-instrument validation hardware into a portable 14.24″ wide chassis.

Coordinated Dual Channel Signal Loop Stimulation

The core processing layer across this integrated instrumentation environment utilizes high-resolution digital processing arrays paired with an ultra-fast 3.5 ns rise time to eliminate data manipulation latency during critical high-frequency circuit diagnostics. This comprehensive setup enables power system engineers, automated test labs, and firmware developers to generate custom modulated signal loops directly across their validation architectures, routing the simulated waveforms back into the active tracking networks to verify processing parameters near the system Nyquist limit. All real-time signals pass directly through the integrated digitizer framework to achieve an optimal signal-to-noise ratio and isolate active signal paths from ambient laboratory facility noise floors.

Consolidated Prototyping Bench Lifecycle Procurement

Constructed to excel in high-density university laboratories, technical training classrooms, and advanced research facilities, the compact enclosure optimizes minimal bench space while supporting stable operations under high-precision linear transformer paths. The structural multi-instrument framework native to the architecture packages critical digital logic mapping, multi-channel parametric testing, and dual signal stimulus right on the bench, ensuring immediate automated data extraction onto computer hosts over standard communication loops without structural baseline thermal drift during long testing runs. Guaranteeing exceptional long-term facility capital protection and clear operational asset safety, this elite laboratory package comes standard with a verified 3-Year Warranty framework to ensure continuous equipment dependability.
