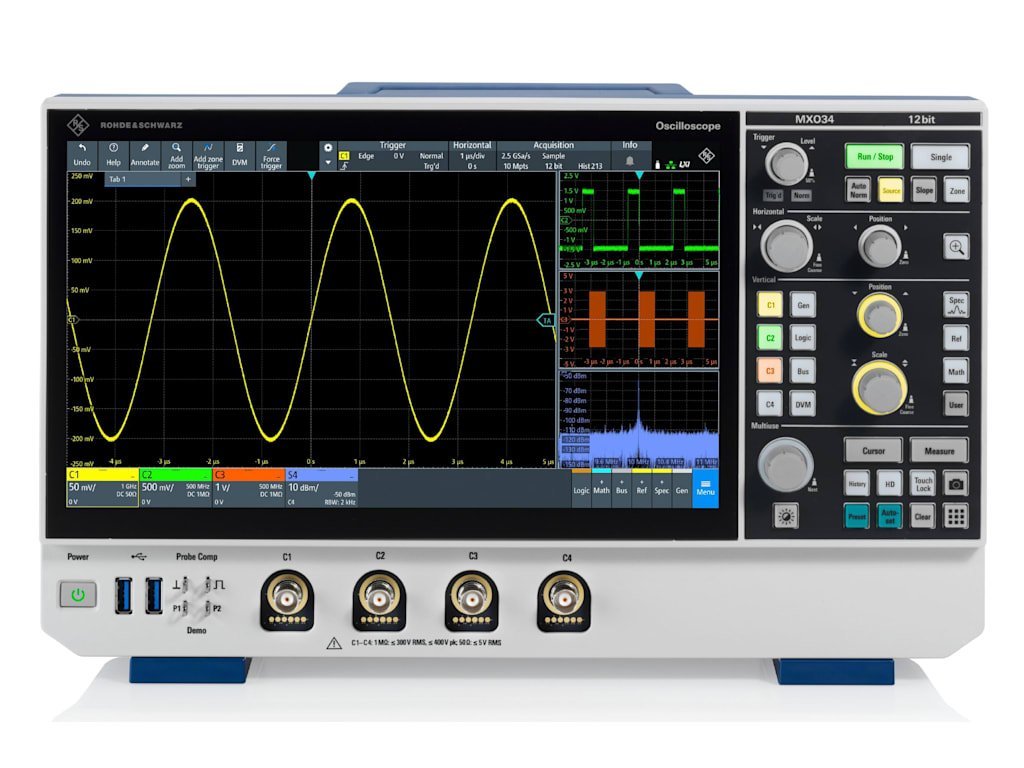

Rohde & Schwarz MXO34-5PK – Digital Oscilloscope (4 Channels / 500 MHz) with MXO3-PK1 Application Bundle

Description

The Rohde & Schwarz MXO34-5PK specialized hardware-software application package consolidates advanced multi-channel validation hardware and software protocol analysis tools within a single high-performance instrumentation matrix. This quad-channel diagnostic system combines a 500 MHz baseline hardware layer with the premium MXO3-PK1 application bundle, giving electronics hardware validation test loops a fully populated array of triggering, decoding, and analytical features natively out of the box.

Operating at an interleaved 5 GS/S maximum real-time sampling velocity across active pathways with an ultra-fast sub-nanosecond 700 ps rise time threshold, a 500 MHz bandwidth, and a 125 MP deep acquisition memory layout, the platform captures random voltage transients accurately. This advanced framework leverages specialized internal acquisition paths and a hardware-enabled 16-channel digital logic analyzer matrix to accelerate cross-domain debugging throughput.

Key Features of Rohde & Schwarz MXO34-5PK

• Bundled MXO3-PK1 Application Engine Suite: Unlocks comprehensive operational protocol triggering, deep analysis, and serial hardware decoding.
• True Hardware 12-Bit Vertical Resolution: Cuts quantization errors fourfold, uncovering microvolt noise masked on standard 8-bit systems.
• Blazing 4,500,000 wfms/s Update Engine: Exposes rare circuit faults instantly by minimizing internal hardware trigger dead time.
• 700 ps Sub-Nanosecond Rise Time: Resolves rapid digital step edges to accurately isolate critical propagation delays.
• 125 MP Deep Waveform Memory: Allocates high-density waveform storage capacity to sustain high resolution across prolonged evaluation intervals.
• Four Dedicated Analog Channels: Coordinates multi-point voltage path diagnostics and cross-channel timing alignment routines.
• 11.6-Inch Full HD Touchscreen Interface: Streamlines multi-channel visual tracking, manual cursor targeting, and multi-domain analysis.

Dynamic Application Software and Deep Telemetry Layers

The core processing layer leverages a premium 12-bit native hardware vertical resolution digitizer combined with a blistering 700 ps rise time and an exceptional hardware-accelerated trace update engine to eliminate configuration latency during unpredictable circuit evaluations. This quad-channel configuration enables automated test engineers and firmware developers to view elusive low-amplitude anomalies and random clock jitter, supporting deep multi-instrument analysis via the unlocked application suite across active pathways without risking signal attenuation near the system Nyquist limit. All real-time signals pass directly through the integrated digitizer framework to achieve an optimal signal-to-noise ratio and isolate active signal paths from ambient laboratory facility noise floors.

Enterprise System Automation Lifecycles

Constructed to excel in advanced automated testing environments (ATE), advanced research laboratories, and advanced semiconductor manufacturing environments, the compact enclosure housing protects sensitive internal components within a space-saving portable layout built under strict CE, CSA, and UL safety approvals. The structural multi-instrument framework native to the system ensures immediate automated data offloading onto internal memory networks or external flash drive interfaces without structural baseline thermal drift, providing an optimized bench footprint. Guaranteeing clear equipment transparency and asset lifecycle alignment, this professional high-frequency hardware configuration comes standard with a verified 3-Year Warranty framework to ensure continuous equipment dependability.
