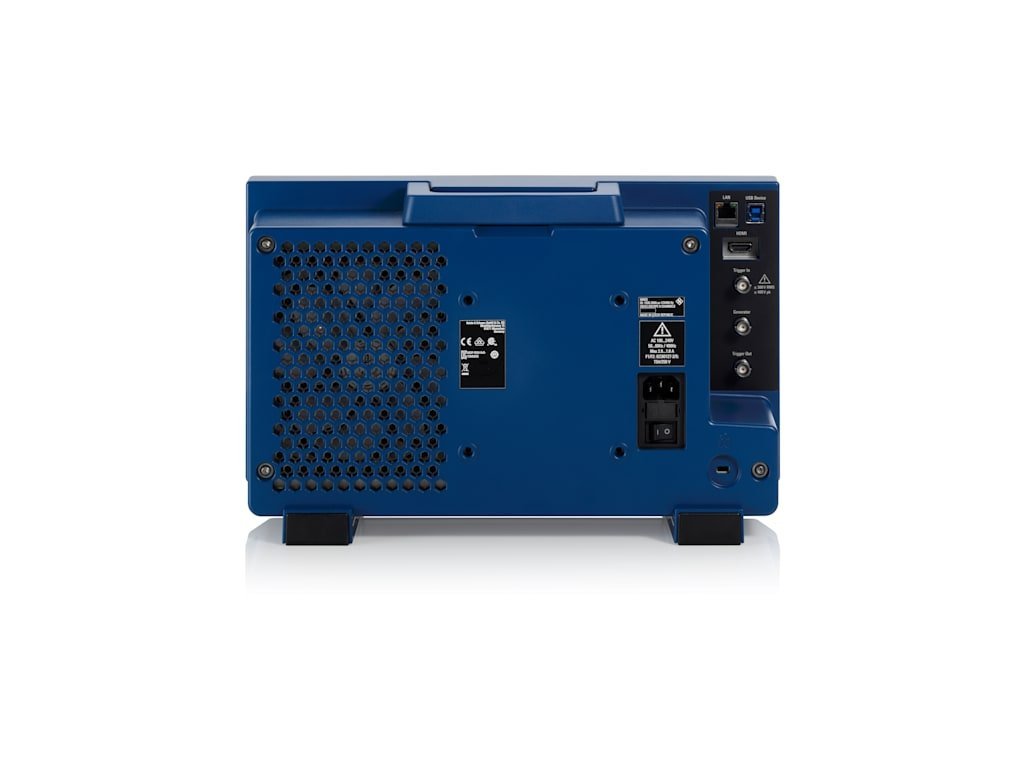

Rohde & Schwarz MXO38-1PK – Digital Oscilloscope (8 Channels / 100 MHz) with MXO3-PK1 Application Bundle

Description

The Rohde & Schwarz MXO38-1PK specialized hardware-software application package consolidates advanced multi-channel validation hardware and software protocol analysis tools within a single high-performance instrumentation matrix. This eight-channel diagnostic system combines a 100 MHz baseline hardware layer with the premium MXO3-PK1 application bundle, giving electronic prototyping labs a fully populated array of triggering, decoding, and analytical features natively out of the box.

Operating at a rapid 5 GS/S real-time sampling velocity with a 3.5 ns rise time threshold, a 100 MHz bandwidth, and a massive 500 MP deep acquisition memory expansion unlocked by the bundle option, the platform captures random voltage transients accurately. This advanced framework leverages specialized internal acquisition paths and a hardware-ready 16-channel digital logic analyzer matrix to accelerate cross-domain debugging throughput.

Key Features of Rohde & Schwarz MXO38-1PK

• Bundled MXO3-PK1 Application Engine Suite: Unlocks comprehensive operational protocol triggering, deep analysis, and serial hardware decoding.
• Massive 500 MP Expanded Memory: Stores dense telemetry datasets without reducing digitizer sample rates across extended measurements.
• Eight Analog Input Channels: Coordinates concurrent timing analysis across eight decoupled multi-phase power distribution networks.
• True Hardware 12-Bit Vertical Resolution: Cuts quantization errors fourfold, uncovering microvolt noise masked on standard 8-bit systems.
• Blazing 4,500,000 wfms/s Update Engine: Captures transient signal dropouts instantly by virtually eliminating internal trigger dead time.
• 11.6-Inch Full HD Touchscreen Interface: Streamlines multi-channel visual tracking, manual cursor targeting, and multi-domain analysis.
• Upgradable 100 MHz Base Bandwidth: Scales smoothly to 1 GHz frequencies via software updates as requirements expand.

High-Density Octa-Channel Signal Acquisition Depth

The core processing layer leverages a premium 12-bit vertical resolution digitizer core capable of running up to 18 bits in high-definition configuration modes, combined with responsive hardware controls and an exceptional 4,500,000 waveforms per second update engine to eliminate configuration latency during unpredictable circuit evaluations. This eight-channel configuration operates at a dedicated sampling layout concurrently, enabling automated test engineers and firmware developers to view elusive low-amplitude anomalies and random clock jitter, supporting deep multi-instrument analysis via the unlocked application suite across active pathways without risking signal attenuation near the system Nyquist limit. All real-time signals pass directly through the integrated digitizer framework to achieve an optimal signal-to-noise ratio and isolate active signal paths from ambient laboratory facility electromagnetic noise floors.

Scalable Laboratory Platform Lifecycle Protection

Constructed to excel in automated testing environments (ATE), high-volume production benches, and advanced engineering laboratories, the heavy-duty enclosure optimizes workbench space under strict CE, CSA, and UL safety structures. The underlying multi-instrument engineering layout native to the MXO series framework ensures streamlined automated data extraction over standard LAN/Ethernet, HDMI, and USB interface loops without structural baseline thermal drift during long-term setups. Guaranteeing long-term corporate asset protection and uncompromised structural confidence, this professional hardware configuration comes standard with a verified 3-Year Warranty framework to ensure continuous equipment dependability.
